WIRING CYLINDERS
DISASSEMBLY (See Figure 8L-4)
1.
Clean and air dry exterior of cylinder.
2.
Drain all the oil from the cylinder.
3.
Disassemble following the steps in Figure 8L-4.
4.
Disassemble remainder of cylinder as shown in Fig-
ure 8L-4.
HYDRAULICS
SECTION 8L. LIFT CYLINDER
8L-4

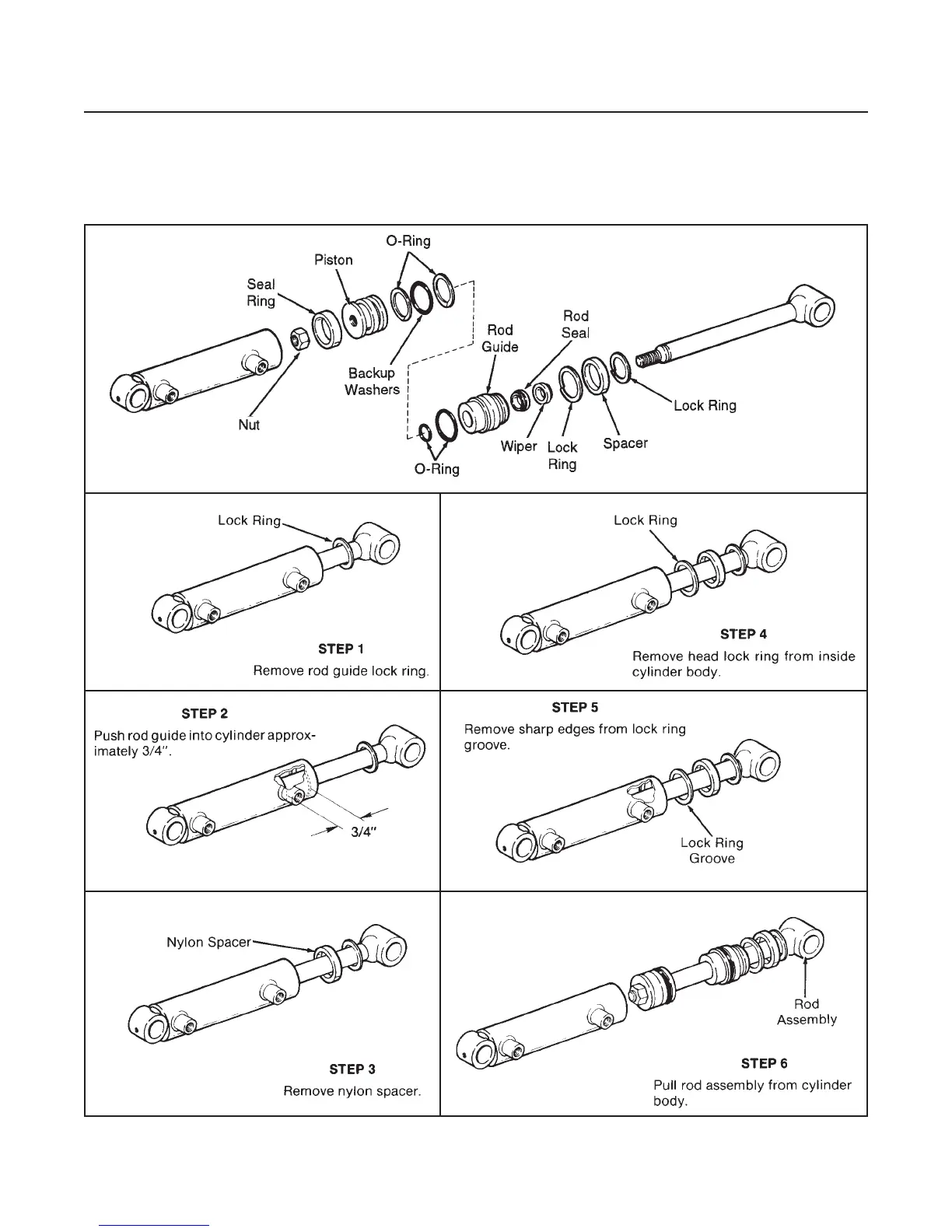

Figure 8L-4. Wing Cylinder Disassembly
145
147
