ELECTRICAL SYSTEM
SECTION 10G. SWITCHES
10G-3
10G

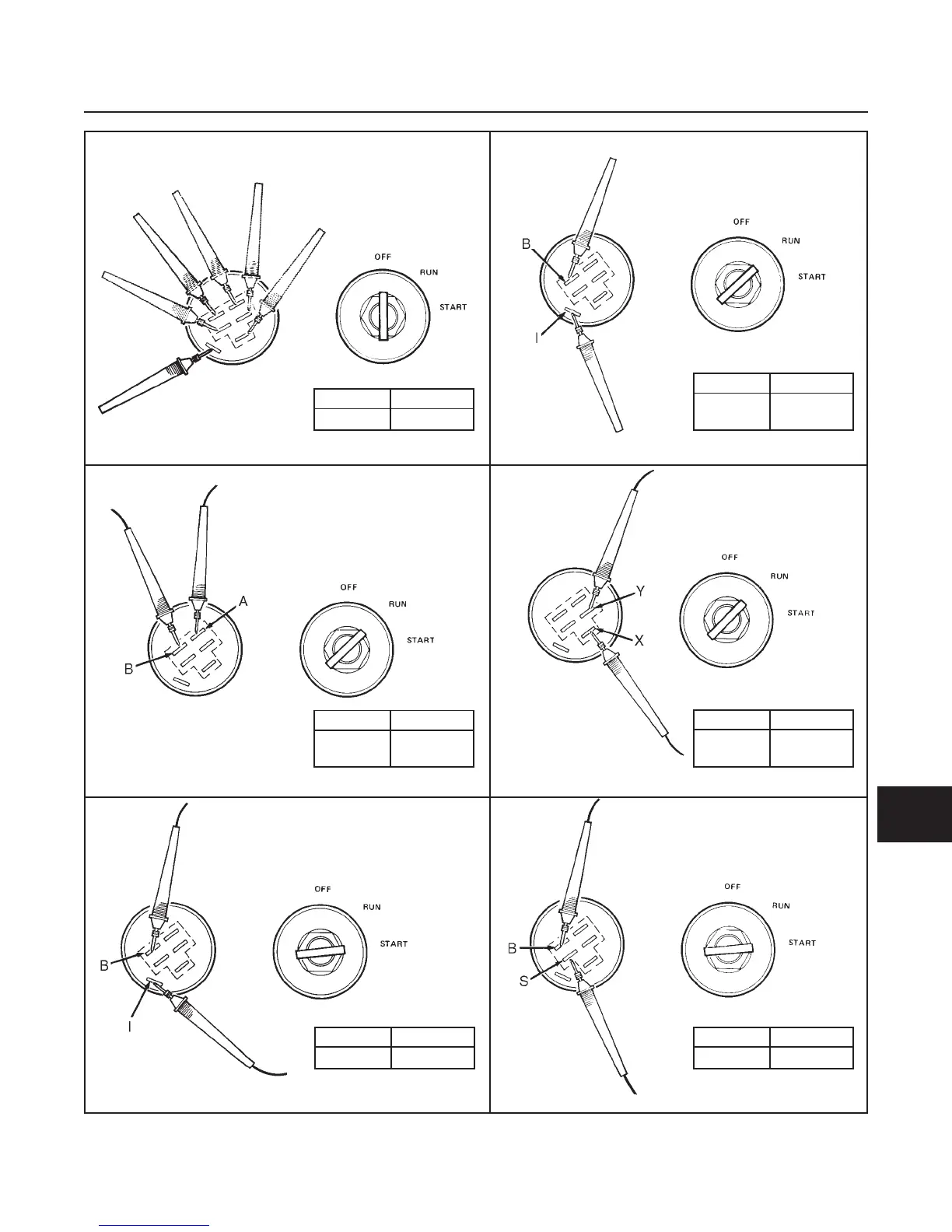

Figure 10G-3. Ignition Switch Test Step 4
Contacts Open
No Continuity
Contacts Closed
Continuity 0–0.5 Ohms
Contacts Closed
Continuity 0–0.5 Ohms
Contacts Closed
Continuity 0–0.5 Ohms
Contacts Closed
Continuity 0–0.5 Ohms
Contacts Closed
Continuity 0–0.5 Ohms
STEP 4C
STEP 4E STEP 4F
STEP 4A
STEP 4D
STEP 4B
Position Continuity
OFF None
Position Continuity
START B+I+S
Position Continuity
START B+I+S
Position Continuity
RUN B+I+A
X+Y
Position Continuity
RUN B+I+A
X+Y
Position Continuity
RUN B+I+A
X+Y
