ADJUSTMENT (See Figure 10I-2)
1. Disconnect solenoid rod at lever.
2. Turn ignition switch to START momentarily with-
out starting engine. This will seat solenoid plunger.
Leave ignition switch in RUN position.
3. Adjust and connect rod at stop lever as necessary
so that there is a gap between lever and stop with
solenoid engaged.
4. After adjustment, turn ignition switch to OFF.
NOTE
If not adjusted properly, solenoid will not “hold
in” when ignition switch is returned to the run
position after starting.
ELECTRICAL SYSTEM
SECTION 10I. SOLENOIDS
10I-2

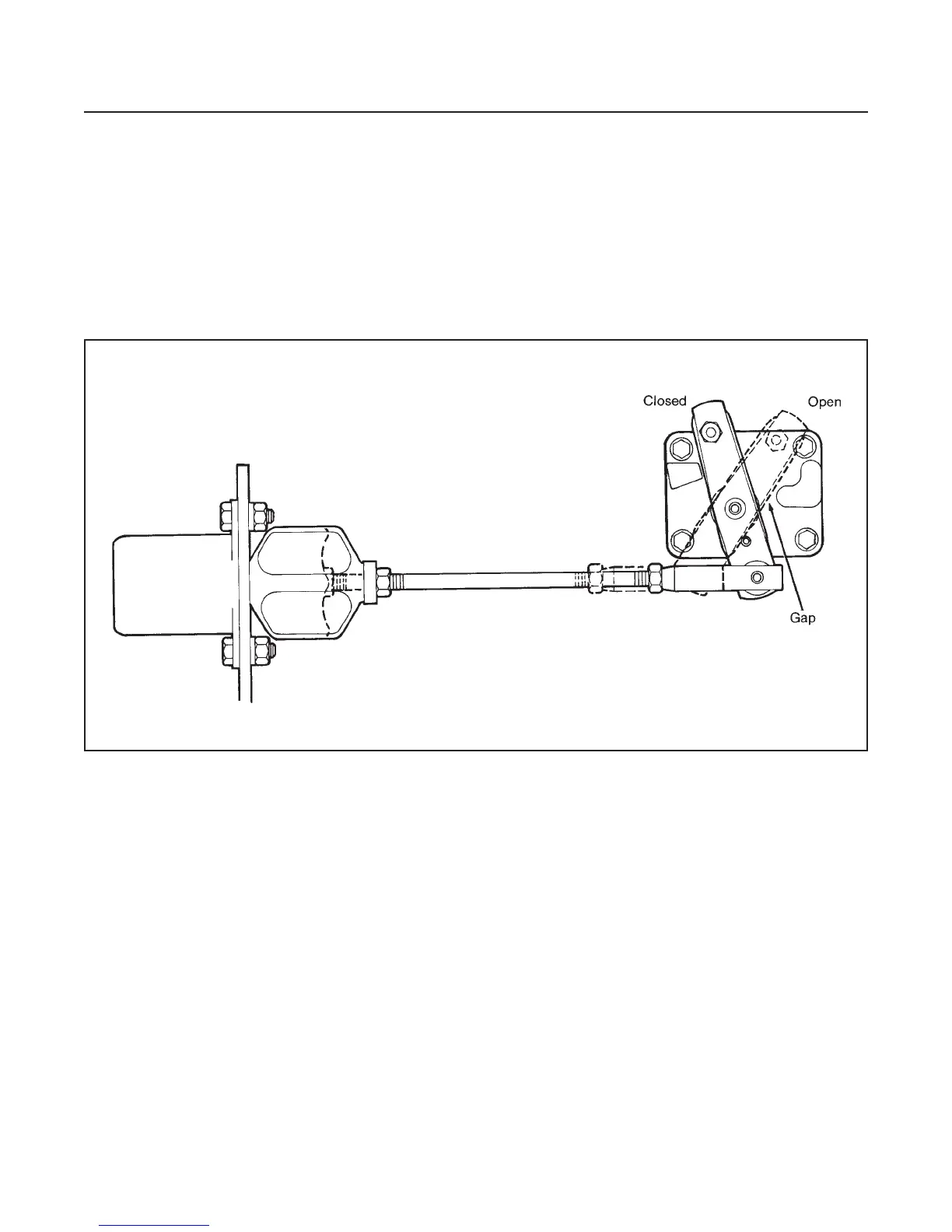

Figure 10I-2. Fuel Solenoid Adjustment
