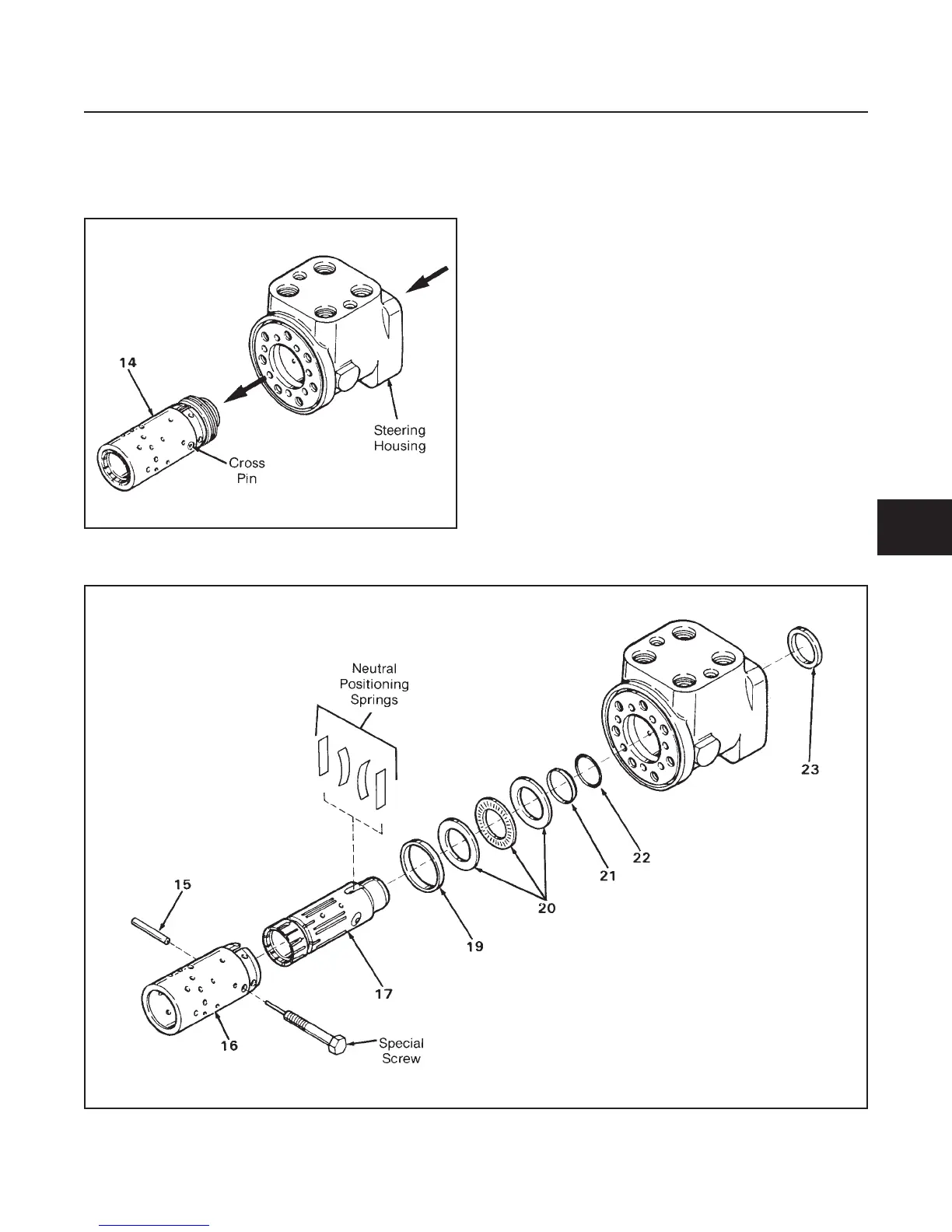

(See Figure 6C-4)
9. Place steering unit on its side. Keeping cross pin
horizontal, carefully push sleeve (14) from steer-
ing unit housing.
(See Figure 6C-5)
10. Remove O-ring (22), kin ring (21), thrust bearing
and washers (20), ring (19) and dust ring (23).
11. Push cross pin (15) out of sleeve (16).
12. Carefully push spool (17) from sleeve (16).
13. Push neutral positioning springs from spool (17).
STEERING
SECTION 6C. STEERING UNIT
6C-3
6C
Figure 6C-5.
Figure 6C-4.
