8-27
(3)

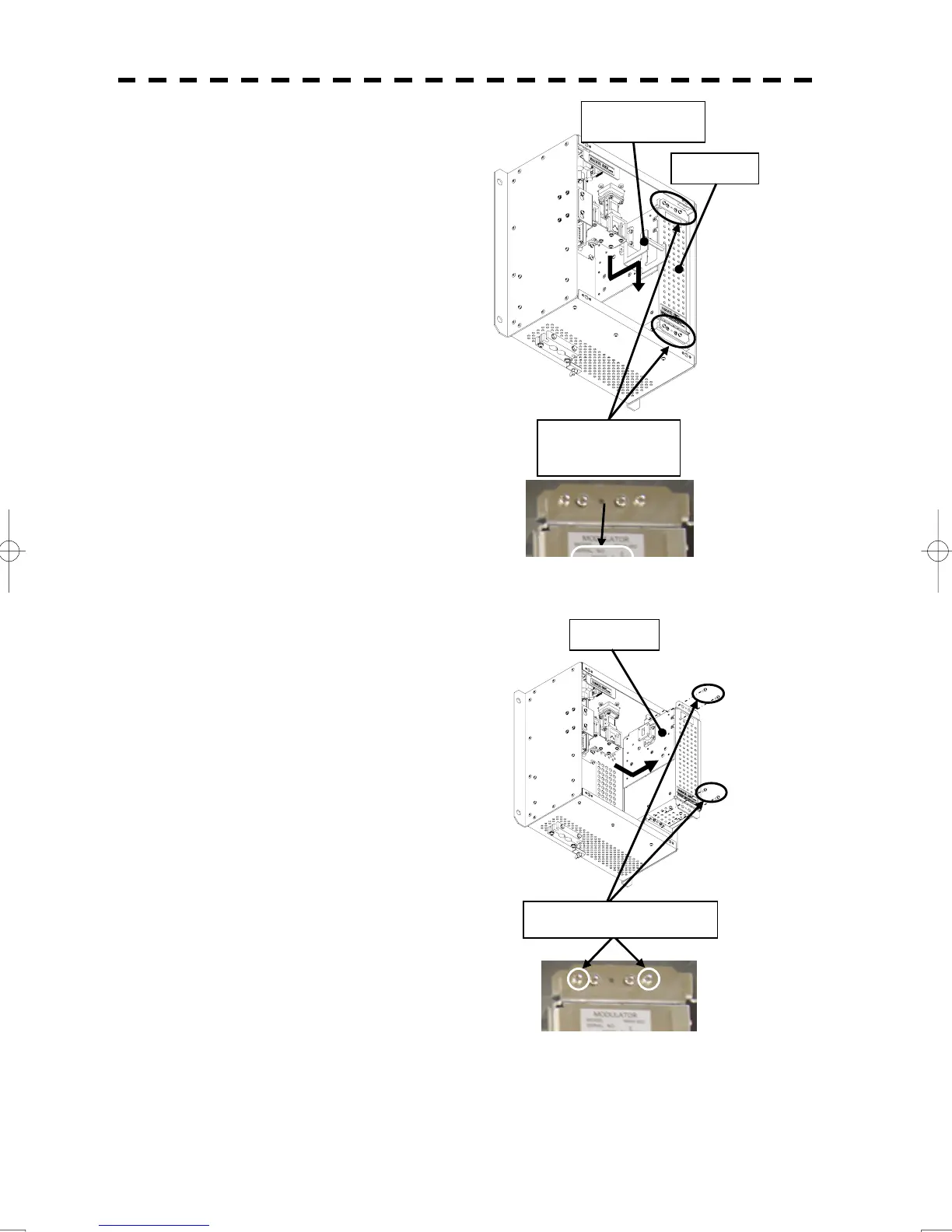

Loosen the inside screws of the
modulator (four M4 screws).
Removing the outside screws makes it
possible to slide the modulator
.
(4)
Remove the cables connected to the
modulator and the screws on the outside of
the modulator (four M4
screws) and slide
the modulator to the
right to remove it.
Modulator
Remove the four out
side
screws.
T
ightening
metal fitting
Loosen the four
inside screws.
Modulator
