Connecting the M7i Router to a Network for Out-of-Band Management
To connect the Routing Engine to a network for out-of-band management, insert an
Ethernet cable with RJ-45/RJ-45 connectors into the MGMT port on the Routing Engine.
One such cable is provided with the router (see “Routing Engine Interface Cable and Wire
Specifications for the M7i Router” on page 97). Follow this procedure:
1. Plug one end of the Ethernet cable (Figure 31 on page 116 shows the connector) into
the MGMT port on the Routing Engine Figure 32 on page 116 shows the layout of the
ports on the Routing Engine.
2. Plug the other end of the cable into the network device.

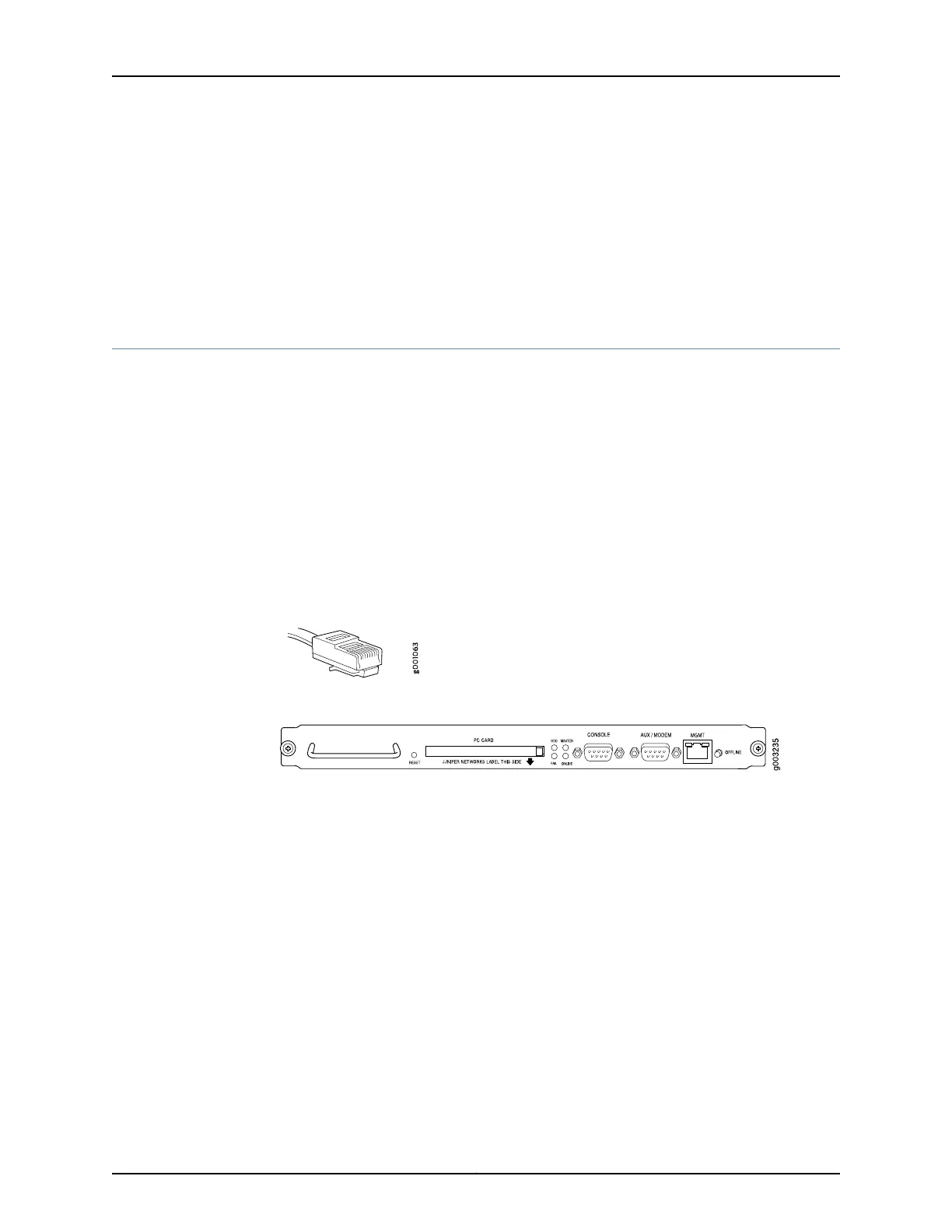

Figure 34: Routing Engine Ethernet Cable Connector
Figure 35: Routing Engine Interface Ports
Related
Documentation
M7i Power System Description on page 59•
• M7i Router Power Requirements on page 79
• M7i Router Site Preparation Checklist on page 73
