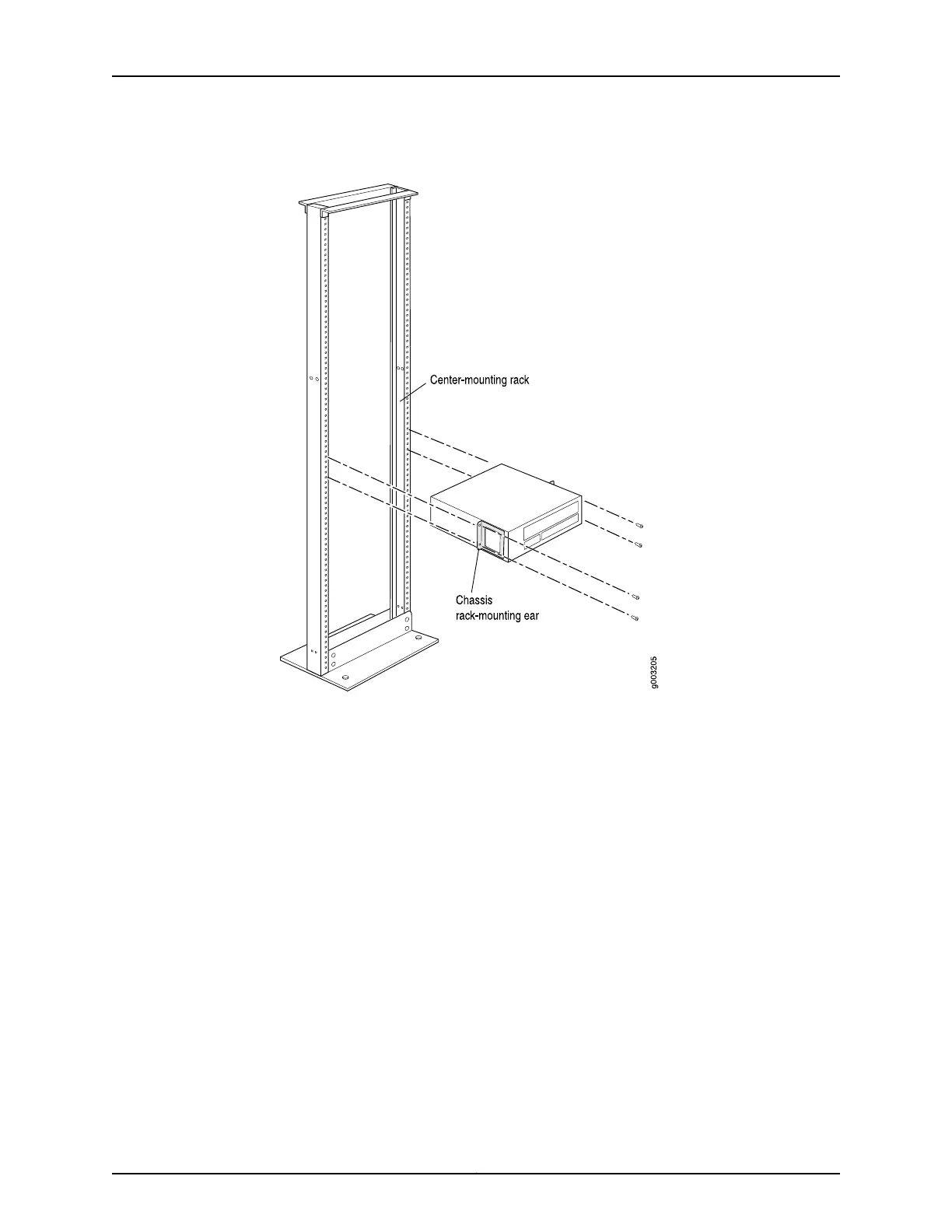

Figure 30: Installing the Router
5. Install the second screw in each mounting ear.
6. Verify that all the mounting screws on one side of the rack are aligned with the
mounting screws on the opposite side and that the router is level.
7. To continue the installation, proceed to “Connecting the M7i Router to Management
and Alarm Devices” on page 115.
Related
Documentation
• Overview of M7i Router Installation on page 103
• Initially Configuring the M7i Router on page 129
• M7i Chassis Lifting Guidelines on page 233
• M7i Router Physical Specifications on page 74
Copyright © 2019, Juniper Networks, Inc.112
M7i Multiservice Edge Router Hardware Guide
