CHAPTER 6
Line Card Components and Descriptions
•
M7i Flexible PIC Concentrators (FPCs) Description on page 43
•
M7i Fixed Interface Card (FIC) Description on page 44
•
FIC Specifications for the M7i Router on page 45
•
M7i FIC LEDs on page 45
•
M7i PICs Description on page 46
•
M7i PIC LEDs on page 47
•
M7i PICs Supported on page 47
•
M7i End-of-Life PICs Supported on page 50
•
M7i PIC Combination Limitations on page 53
•
M7i PIC/CFEB Compatibility on page 53
M7i Flexible PIC Concentrators (FPCs) Description
Flexible PIC Concentrators (FPCs) house the PICs that connect the router to network
media (for information about PICs, see “M7i PICs Description” on page 46). On the M7i
router, each FPC is built in (it cannot be removed from the chassis as on other M Series
routers). The networking and services interfaces in the M7i router are grouped onto two
logical FPCs by the router, (see Figure 13 on page 43). PICs are located on FPC 0. On FPC
1 the FIC is located in slot 3 and the built-in tunnel interface is located in slot 2. If the ASM
is installed on the CFEB or CFEB-E, it is located on slot 2 with the built-in tunnel interface.

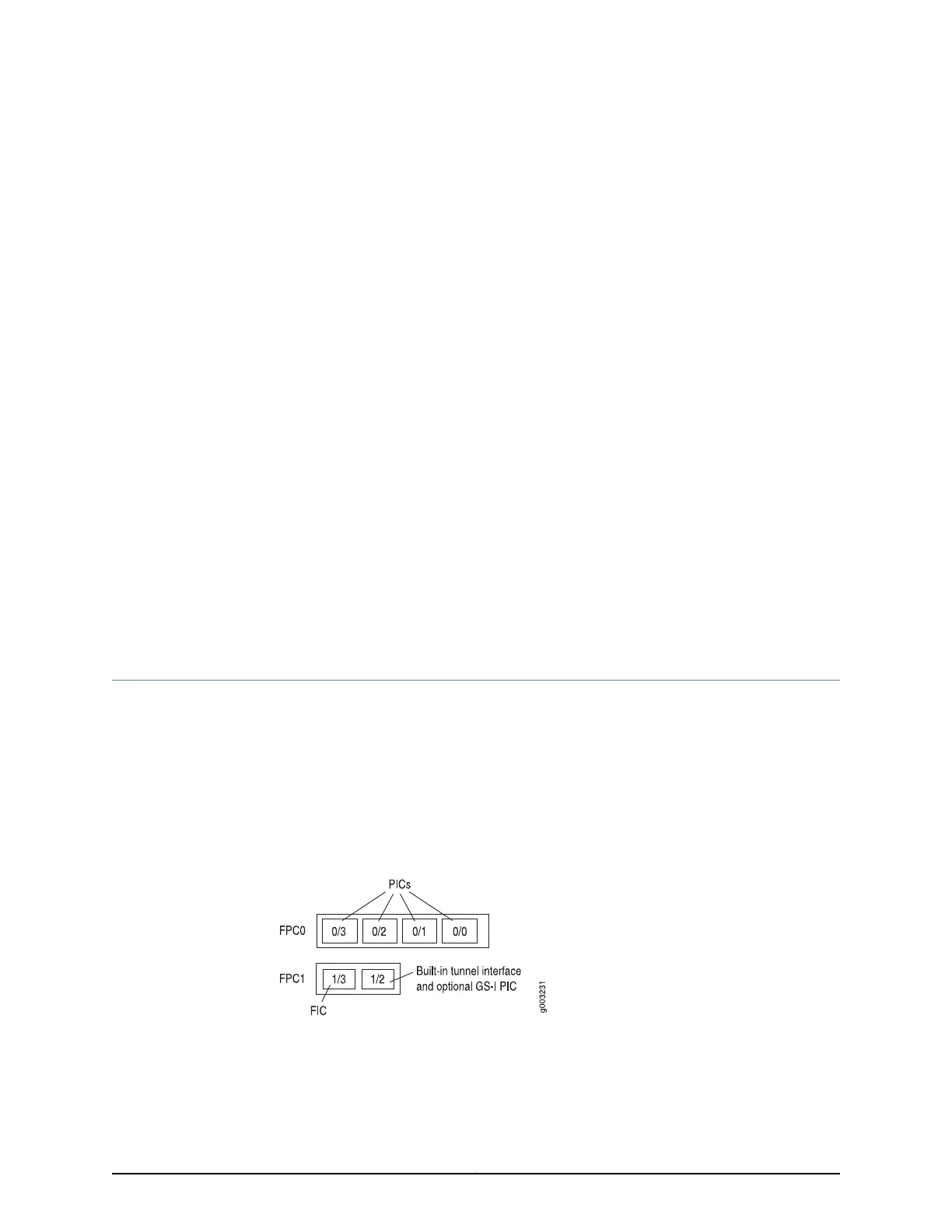

Figure 13: FPC Slot Numbering
Related
Documentation
M7i Router Description on page 3•
• M7i Router Physical Specifications on page 74
