3. Plug one end of the replacement Ethernet cable into the MGMT port (see
Figure 45 on page 145).
4. Plug the other end of the cable into the network device.

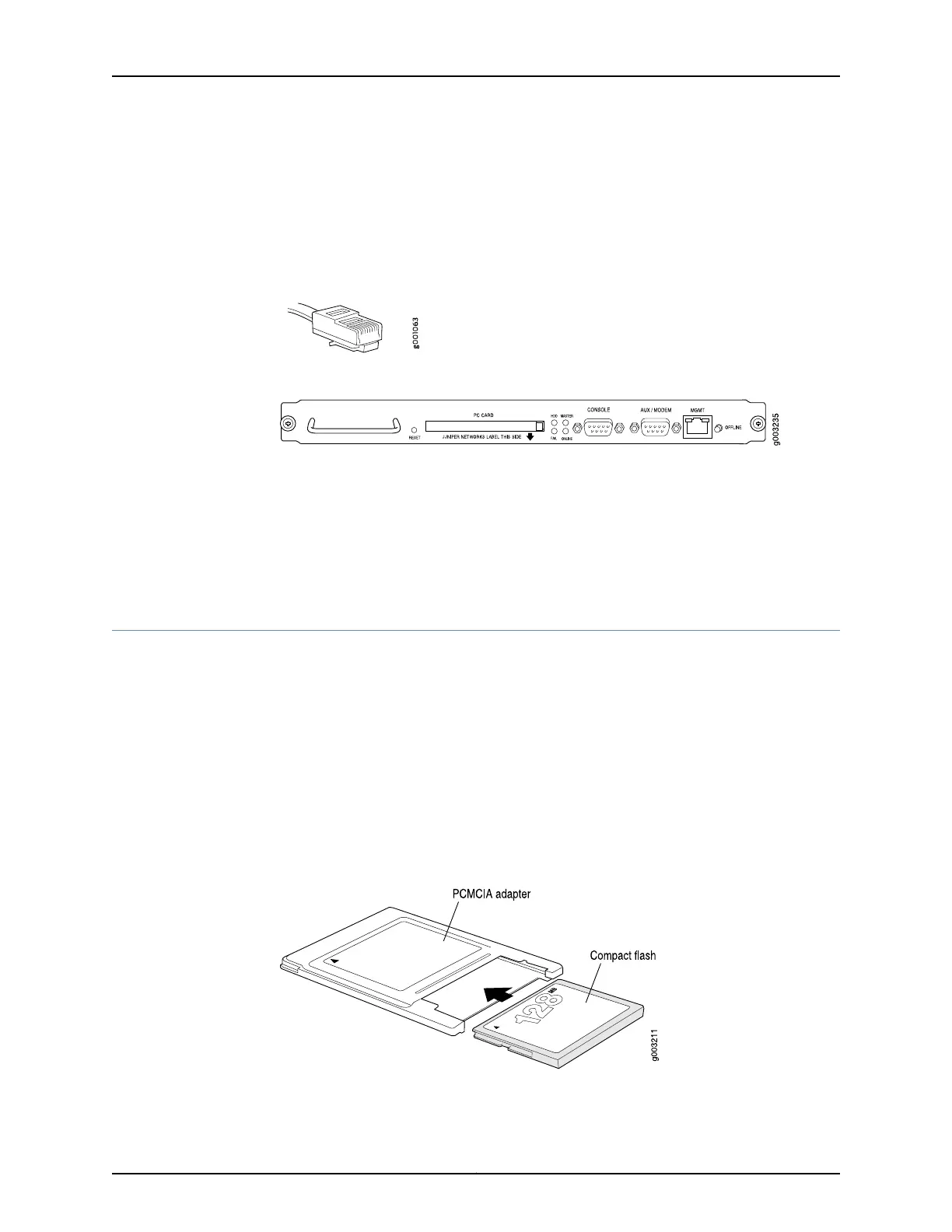

Figure 47: Routing Engine Ethernet Cable Connector
Figure 48: Routing Engine Interface Ports
Related
Documentation
Fiber-Optic and Network Cable Specifications for the M7i Router on page 91•
• M7i Chassis Description on page 11
• FIC Specifications for the M7i Router on page 45
• Replacing the Console or Auxiliary Cable on page 145
Replacing the PC Card Adapter Flash Disk
The PC card is an adapter that holds a flash disk. To replace the flash disk (see
Figure 49 on page 147):
1. If a flash disk is already inserted in the PC card adapter, slide the flash disk out of the
adapter.
2. Align the replacement flash disk with the adapter.
3. Press the flash disk firmly all the way into the adapter.
Figure 49: Inserting the PC Card Flash Disk
147Copyright © 2019, Juniper Networks, Inc.
Chapter 23: Replacing Host Subsystem Components
To Next Page
