Replacing the Management Ethernet Cable
To replace the management Ethernet cable:
1. Press the tab on the connector on the management Ethernet cable and pull the
connector straight out of the port. Figure 44 on page 145 shows the connector.
2. Disconnect the cable from the network device.
3. Plug one end of the replacement Ethernet cable into the MGMT port (see
Figure 45 on page 145).
4. Plug the other end of the cable into the network device.

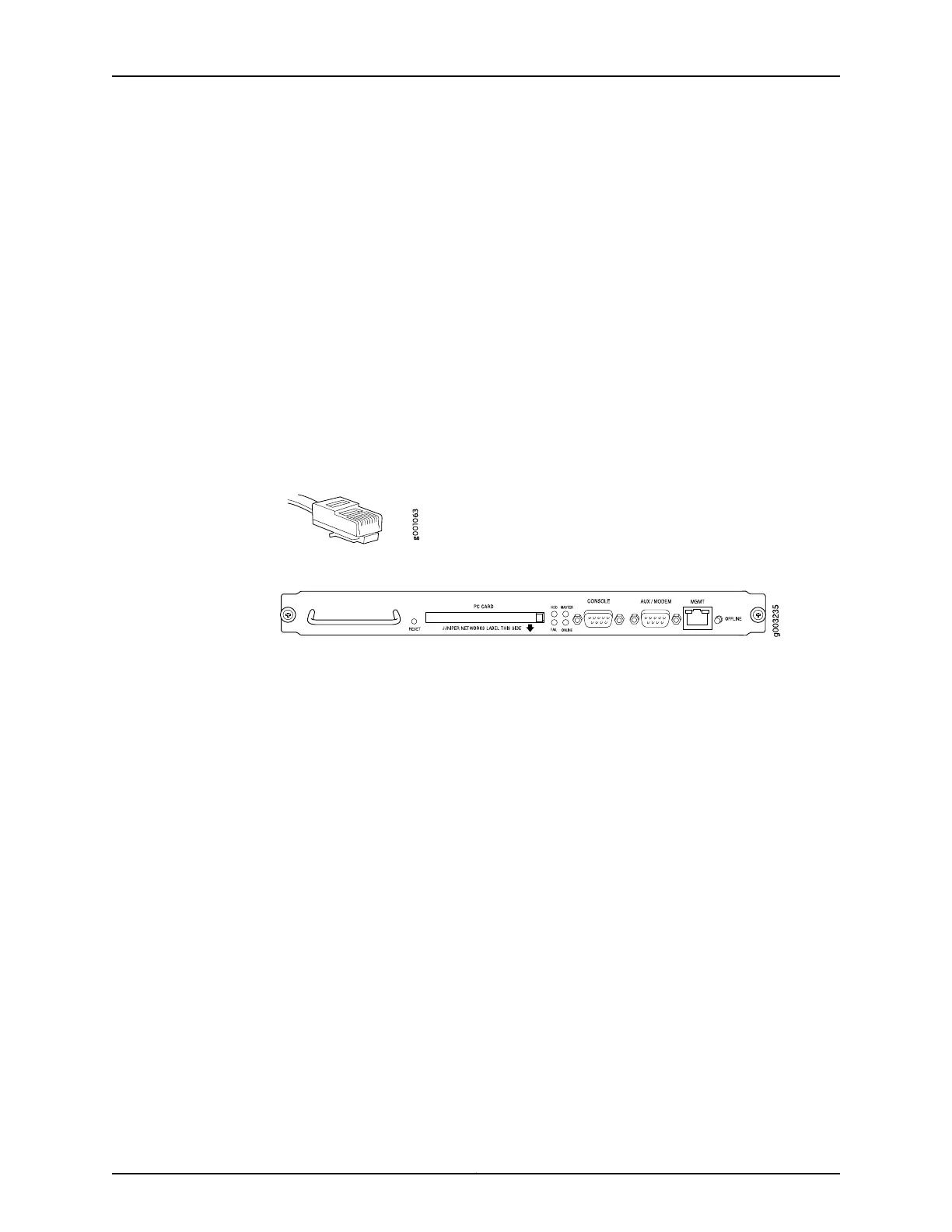

Figure 44: Routing Engine Ethernet Cable Connector
Figure 45: Routing Engine Interface Ports
See Also Fiber-Optic and Network Cable Specifications for the M7i Router on page 91•
• M7i Chassis Description on page 11
• FIC Specifications for the M7i Router on page 45
• Replacing the Console or Auxiliary Cable on page 145
Replacing the Console or Auxiliary Cable
If a cable is already connected to the CONSOLE or AUX/MODEM port, follow these steps
to remove it:
1. Turn off the power to the console or auxiliary device.
2. Unscrew the screws that secure the cable connector to the port, using a 2.5-mm
flat-blade screwdriver if necessary.
3. Pull the cable connector straight out of the port.
4. Disconnect the cable from the console or auxiliary device.
