Juniper M7i Hardware Guide

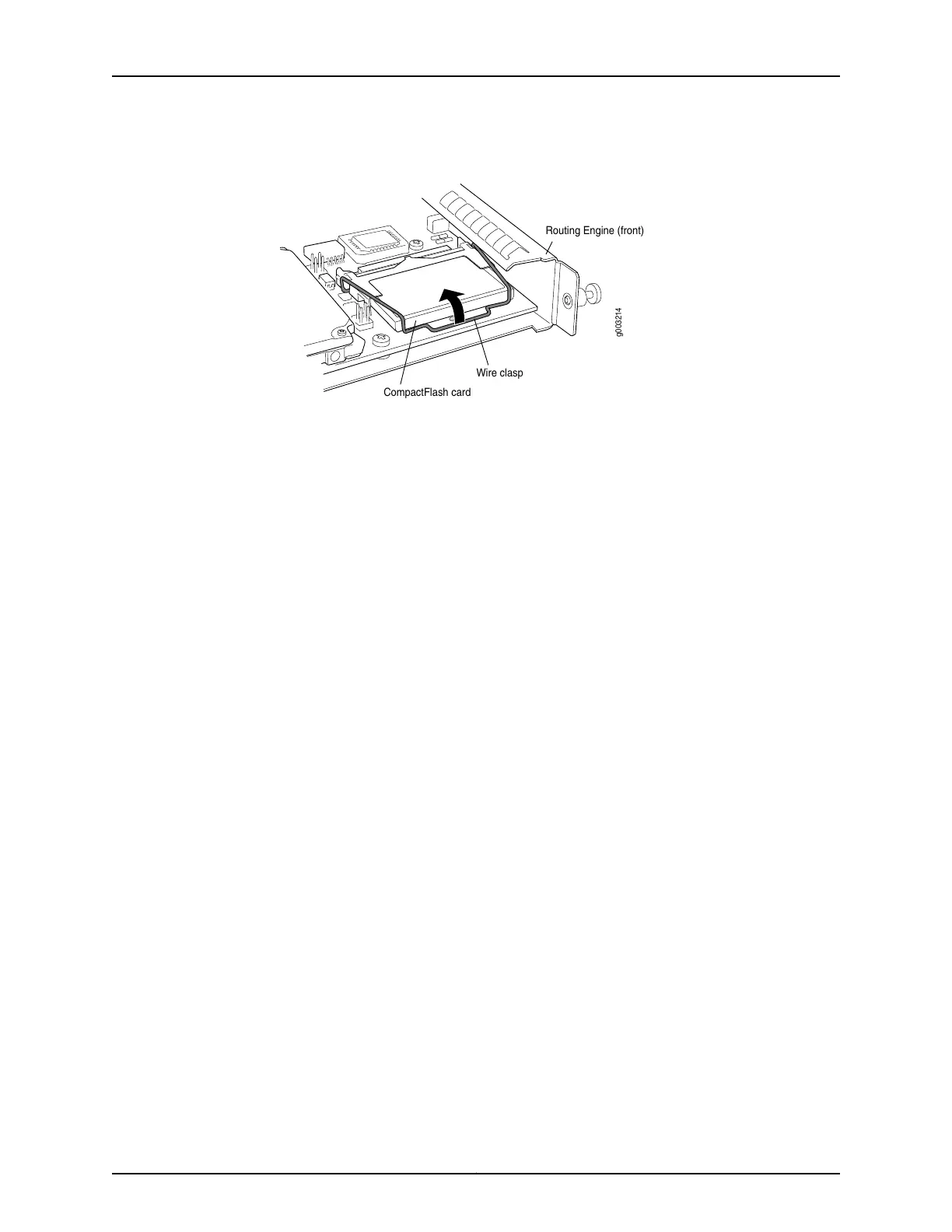

Figure 51: Removing the CompactFlash Card
Routing Engine (front)
Wire clasp
CompactFlash card
g003214
See Also M7i Chassis Description on page 11•
• M7i Midplane Description on page 12
• Maintaining the M7i Routing Engine on page 192
• Inserting the CompactFlash Card on page 150
• Configuring the CompactFlash Card on page 151
Inserting the CompactFlash Card
To install the CompactFlash card (see Figure 52 on page 151):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect
the strap to one of the ESD points on the chassis. Verify that the router is attached to
a proper earth ground.
2. If the CompactFlash card is in a PCMCIA card adapter, slide it out of the adapter.
3. Slide the CompactFlash card into the connector on the Routing Engine (see
Figure 52 on page 151).
4. Use needlenose pliers with grooved jaws to lower and secure the wire clasp.
5. Install the Routing Engine as described in “Installing the Routing Engine in a M7i Router”
on page 142.
Copyright © 2019, Juniper Networks, Inc.150
M7i Multiservice Edge Router Hardware Guide
