5. Use a number 2 Phillips screwdriver to tighten the screws that secure the cable
management system to the chassis.
6. Reinstall the mounting brackets.

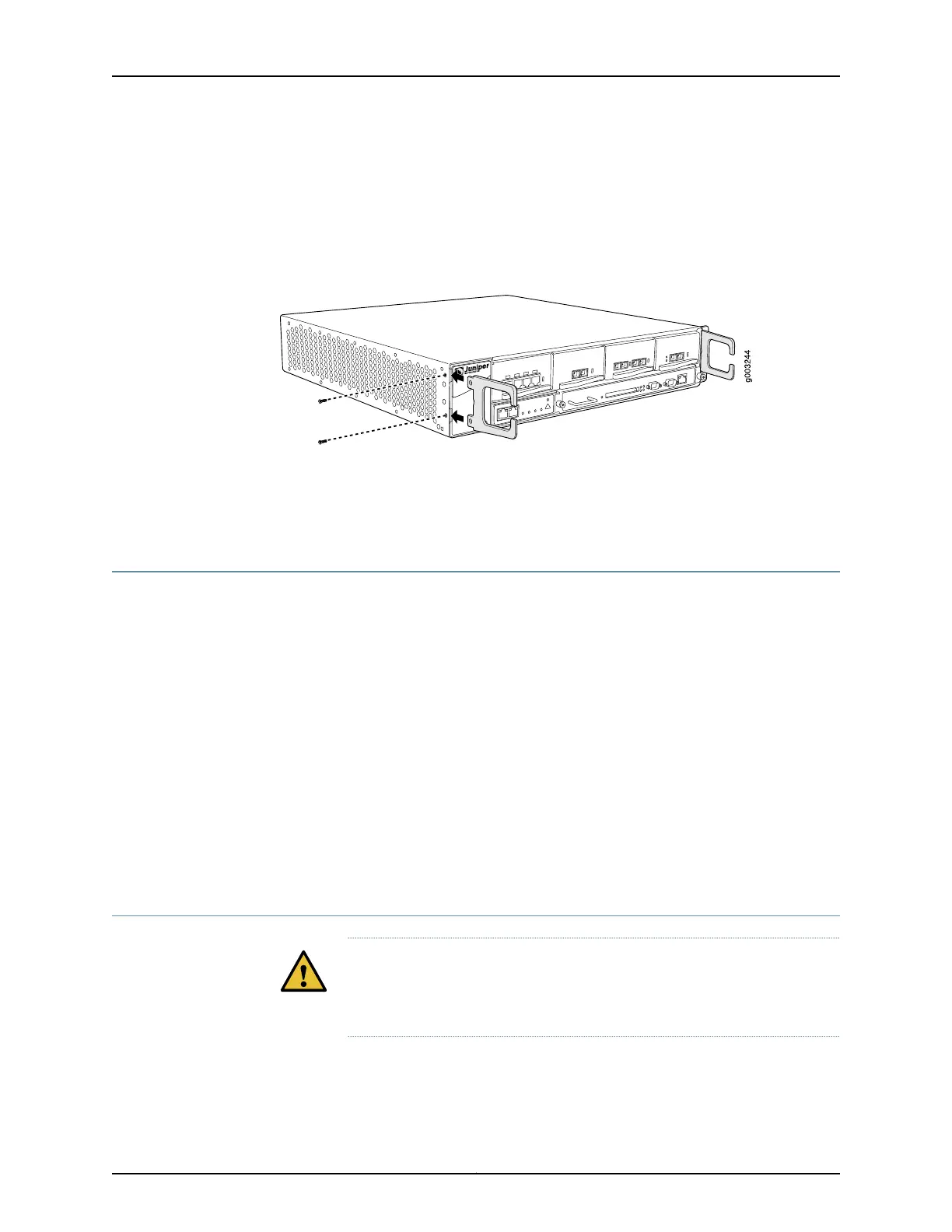

Figure 29: Installing the Cable Management System
Related
Documentation
M7i Cable Management System on page 13•
• M7i Chassis Description on page 11
Moving the Mounting Brackets
For an open-frame rack, center-mounting is preferable, because the more even distribution
of weight provides greater stability. The router is shipped with the mounting brackets
already installed for front-mounting, as shown in Figure 5 on page 11.
To move the mounting brackets before center-mounting the router:
1. Move the mounting brackets to the center of the chassis.
2. Secure the mounting brackets to the chassis by installing screws along both the front
and rear of the brackets.
Related
Documentation
Installation Safety Warnings for Juniper Networks Devices on page 233•
• Installing the M7i Router Into the Rack on page 110
Installing the M7i Router Into the Rack
CAUTION: Depending on configuration, the chassis weighs between 28.2 lb
(12.8 kg) and 36.5 lb (16.6 kg). Installing it into the rack requires at least one
person to lift and another person to secure the mounting screws.
Copyright © 2019, Juniper Networks, Inc.110
M7i Multiservice Edge Router Hardware Guide
To Next Page
