CHAPTER 3
Chassis Components and Descriptions
•
M7i Chassis Description on page 11
•
M7i Midplane Description on page 12
•
M7i Cable Management System on page 13
M7i Chassis Description
The router chassis is a rigid sheet metal structure that houses the other hardware
components. The chassis is 17.5 in. (44.5 cm) wide and 18 in. (45.7 cm) deep. The chassis
height of 3.5 in. (8.9 cm) enables stacked installation of 21 M7i routers in a single
floor-to-ceiling rack. For more information, see “M7i Router Rack Requirements” on
page 75.
The two mounting brackets (one on each side) extend the chassis width to 19 in.
(48.2 cm).

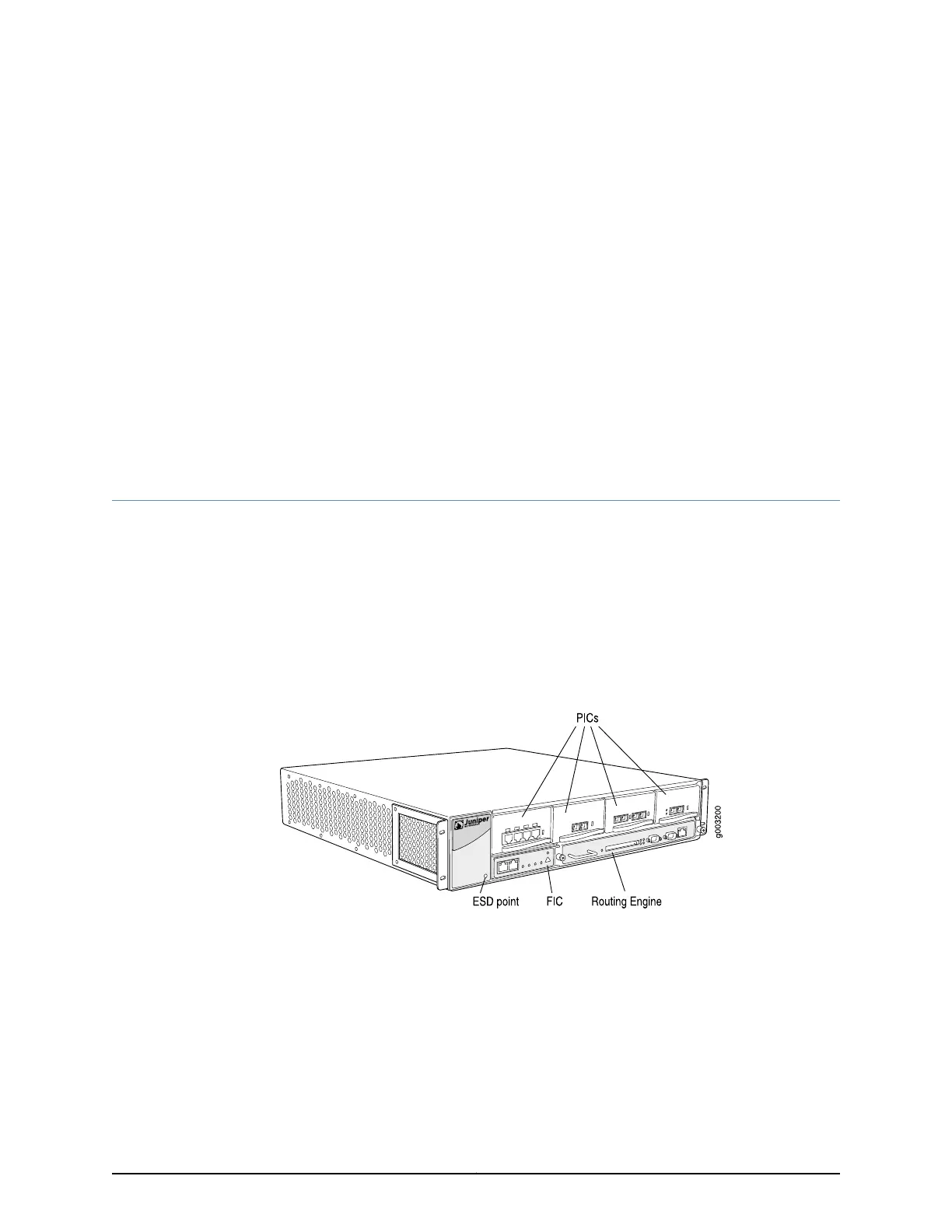

Figure 5: Front of Chassis
11Copyright © 2019, Juniper Networks, Inc.
