Juniper M7i - Removing the PC Card; Figure 54: Removing the PC Card

To remove and insert a PC card, perform the following procedures:
•
Removing the PC Card on page 156
•
Replacing the PC Card Adapter Flash Disk on page 157
•
Inserting the PC Card on page 157
Removing the PC Card
The PC card is inserted in the slot labeled PC CARD in the Routing Engine faceplate. To
remove the PC card (see Figure 54 on page 156):
1. Press the eject button located to the right of the PC card slot in the Routing Engine
faceplate.
2. When the PC card pops partially out of the slot, grasp the card and pull it straight out
of the slot.

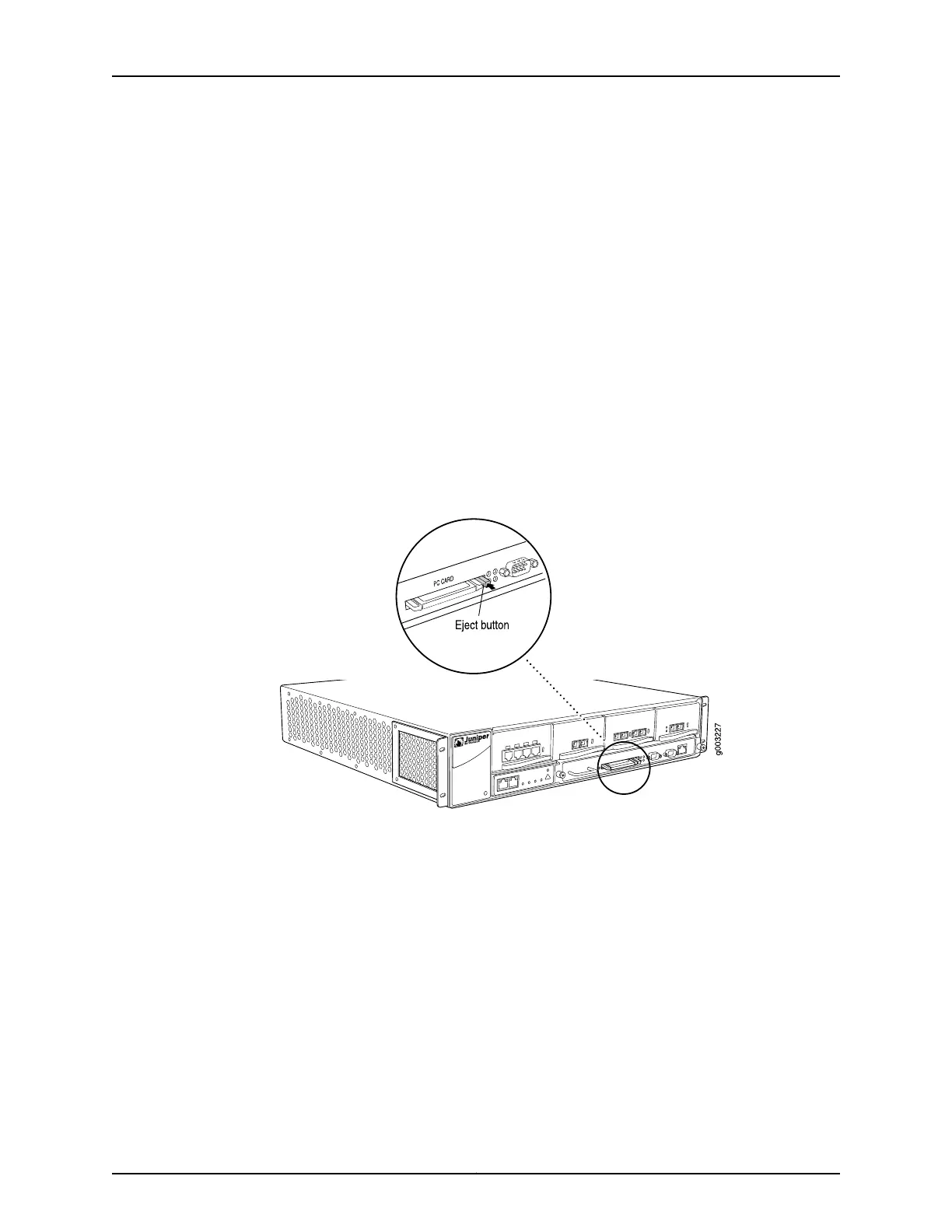

Figure 54: Removing the PC Card
See Also M7i Chassis Description on page 11•
• M7i Midplane Description on page 12
• Maintaining the M7i Routing Engine on page 192
• Replacing the PC Card Adapter Flash Disk on page 147
• Inserting the PC Card on page 157
