Keysight B1505A Configuration and Connection Guide 4-13
N1272A and N1273A Connection Guide
Output Connection

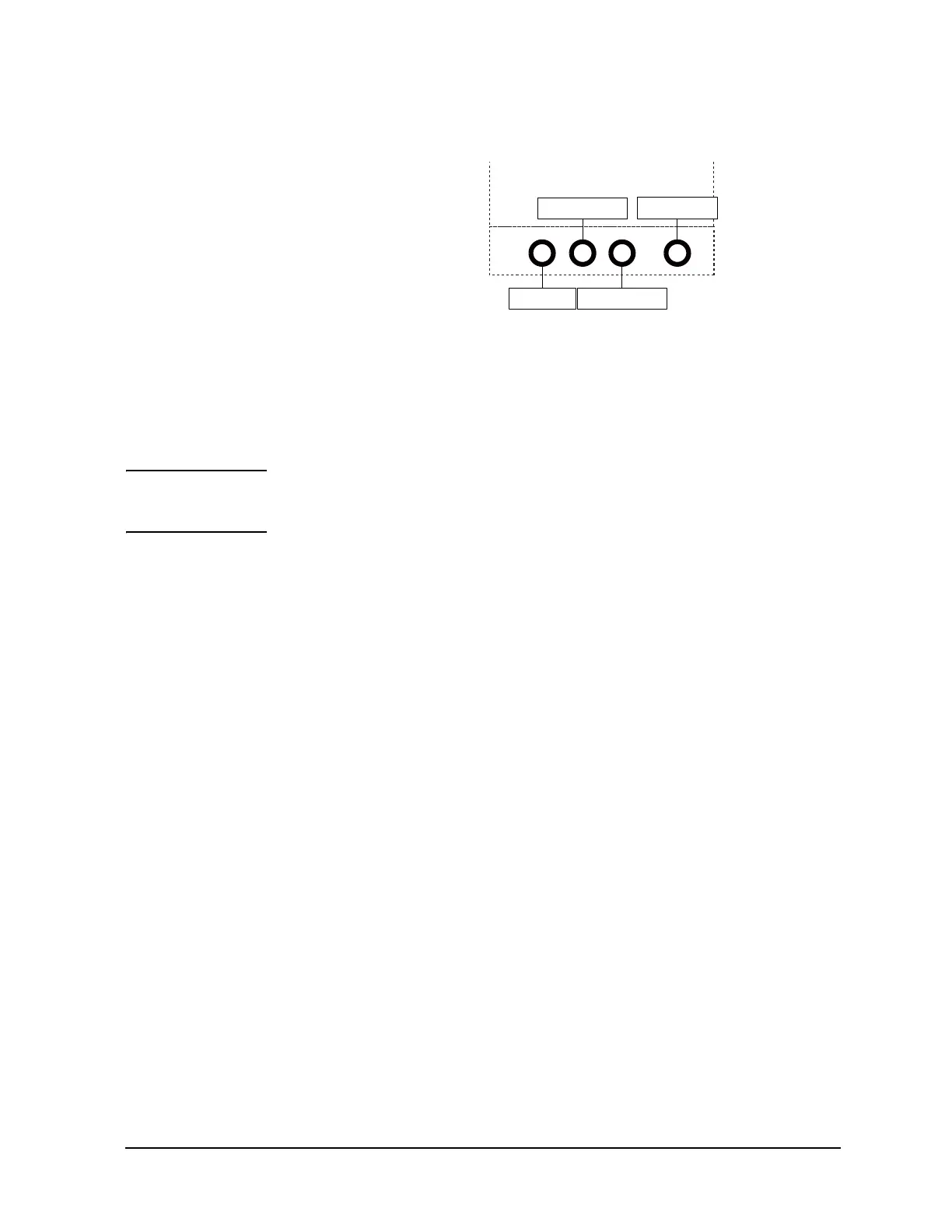

The following shows the positions of the upside terminals in the blank module.
7. Connect the other end of the cables to the terminals on the back side of the socket
board.
If a socket terminal does not have a screw or nut for securing a lug terminal of the
cable, prepare it. Ensure the terminal position of the blank module and the socket
board, and connect the cables correctly.
8. Fix the bottom cover to the blank module using a T10 Torx screwdriver.
CAUTION Do not apply voltage/current over the maximum limit of the socket module.
Terminal rated voltage: 3000 Vd c
Terminal rated current: 120 mA
Collector/Drain
Base/Gate
Emitter/Source
AC/DC Guard
Blank Module
(Wiring side view)
To Next Page
