Keysight Technologies B1505A

5-10 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture

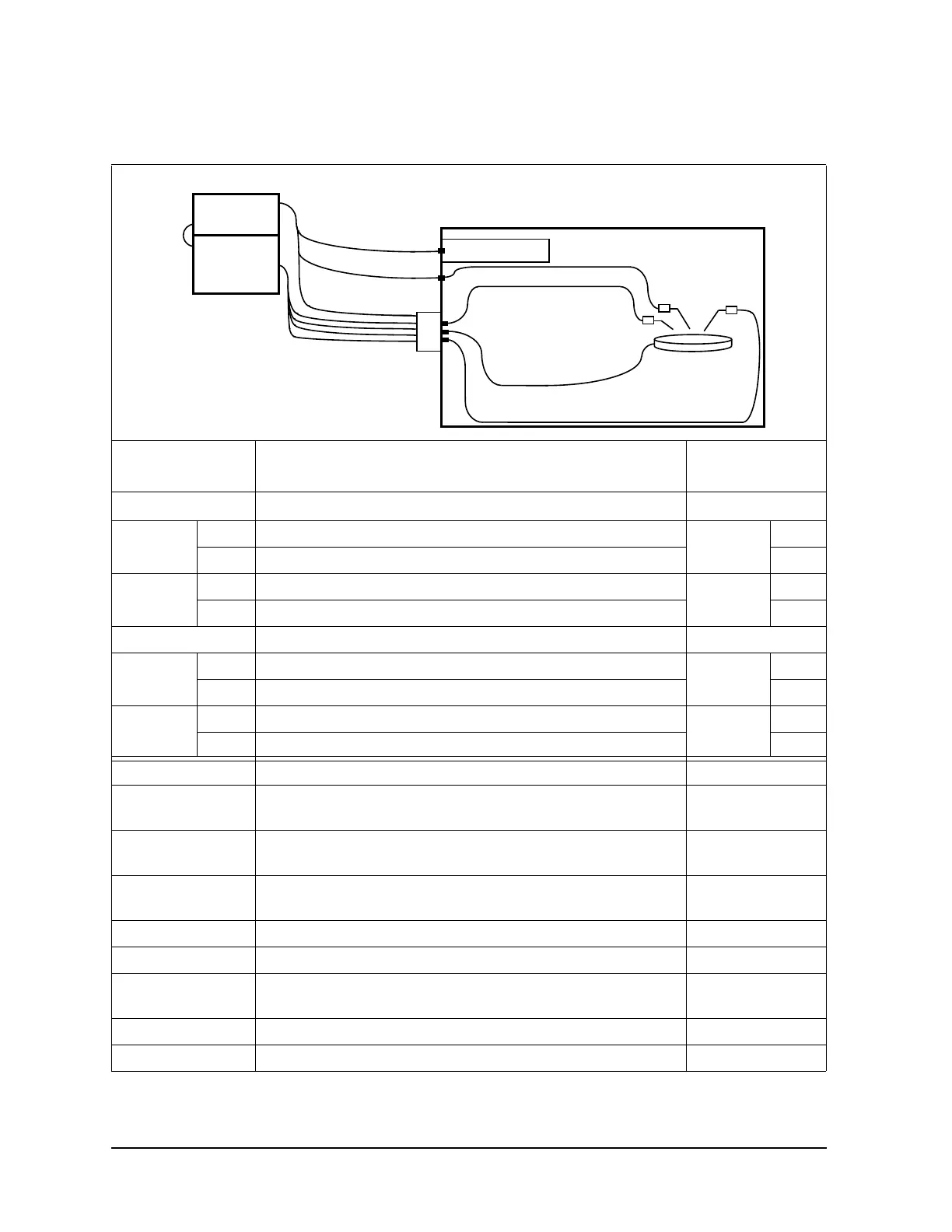

Connection Overview
Table 5-6 To Make UHV Measurement Path
B1505A terminals Required cables
N1268A/N1269A
terminals
Interlock
16493J Interlock cable, 1.5 m, 1 ea.
Interlock Input
MCSMU
Force 16494A Triaxial cable, 1.5 m, 1 ea. I Control Force
Sense 16494A Triaxial cable, 1.5 m, 1 ea. Sense
MCSMU
1
1. HCSMU is substitutable. Then use 16493S HCSMU cable, N1254A-103 adapter for Force, and
N1254A-517 adapter for Sense.
Force 16494A Triaxial cable, 1.5 m, 1 ea. V Control Force
Sense 16494A Triaxial cable, 1.5 m, 1 ea. Sense
Digital I/O 16493G Digital I/O connection cable, 1.5 m, 1 ea. Digital I/O
MCSMU
Force 16494A Triaxial cable, 1.5 m, 1 ea. N1269A
Gate
Force
Sense 16494A Triaxial cable, 1.5 m, 1 ea. Sense
MCSMU
Force 16494A Triaxial cable, 1.5 m, 1 ea. N1269A
Chuck
Force
Sense 16494A Triaxial cable, 1.5 m, 1 ea. Sense
Terminals Required cables/Description Connect to
Interlock Output
16493J Interlock cable, 3 m or 1.5 m, 1 ea., and 1252-1419
Interlock connector, 1 ea.
Interlock circuit
Output Low SHV cable of 16494V, 3 m or 1.5 m, 1 ea. N1269A UHV
Low
Output High UHV cable of 16494V, 3 m or 1.5 m, 1 ea., UHV adapter of
N1254A-521, 1 ea., and UHV cable of N1254A-520
DUT high terminal
(ex: drain)
LINE Power cable, 1 ea., for connecting to power line site AC power
Earth Wire, 1 ea., for earthing site ground
N1269A Source SHV cable of N1254A-520 DUT low terminal
(ex: source)
N1269A Gate Coaxial cable with SHV connector or SHV cable of N1254A-520 DUT gate or base
N1269A Chuck Coaxial cable with SHV connector or SHV cable of N1254A-520 DUT chuck
Shielding box
DUT interface
N1269A
Interlock circuit
16494A
Source/Emitter
Chuck
Gate/Base
*2
*1
*4
*1: 1252-1419
*2: UHV adapter of N1254A-521
*3: UHV cable of N1254A-520
*4: SHV cable of N1254A-520
*5: 16494A, 4 ea., 16493J, and 16493G
*3
16493J
*5
16493V (UHV)
Drain/Collector
B1505A
N1268A
*4
*4
16493V (SHV)
