Keysight B1505A Configuration and Connection Guide 1-13
Configuration Guide

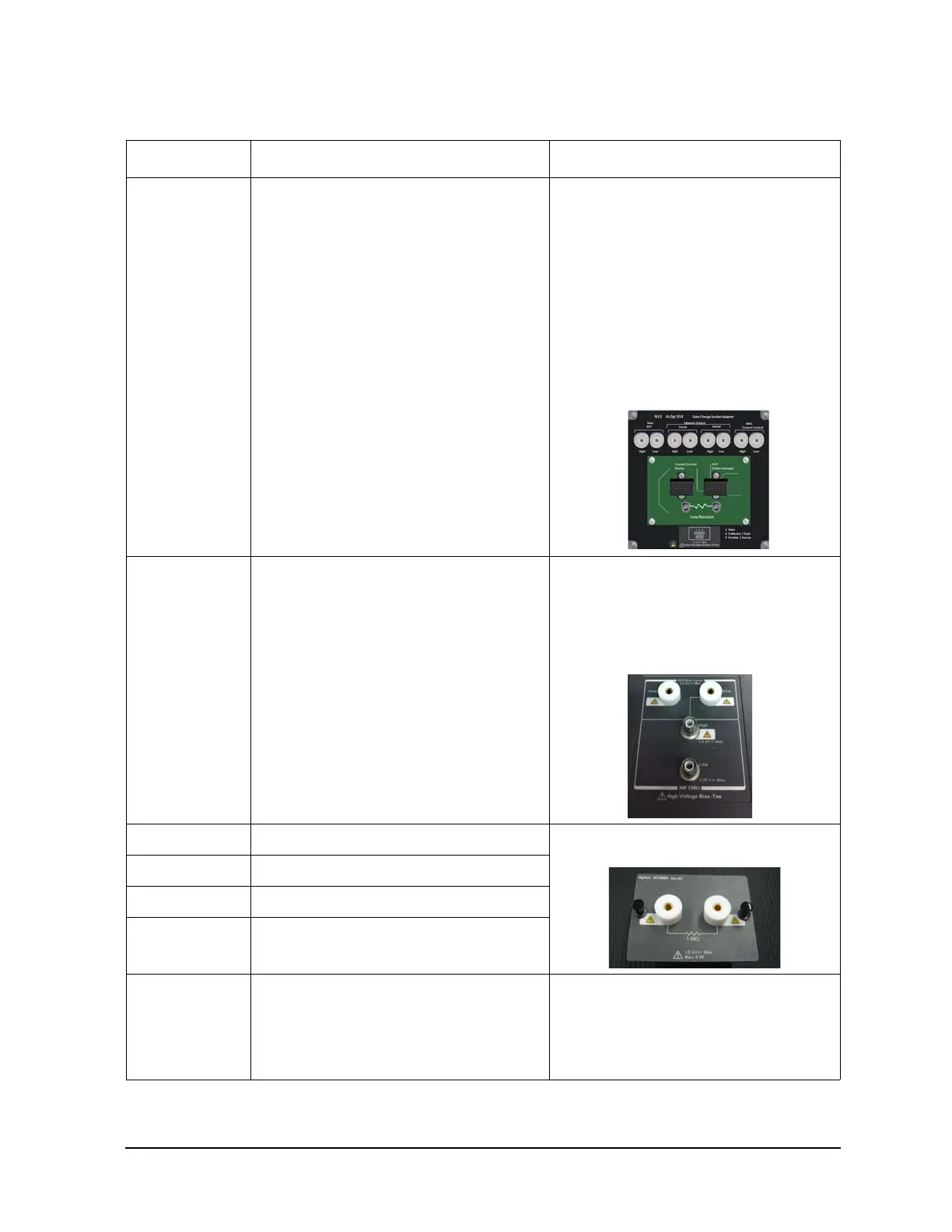

N1259A Test Fixture for Power Device
N1259A-014 Gate charge socket module • The N1259A-014 is the same as the
N1265A-014 Gate Charge Socket
Module.
• The N1259A-014 option is furnished with
the following wires:
- Four red long wires (N1254A-508)
- Four black long wires (N1254A-509)
- Two red short wires (N1265-61751)
- Two black long wires (N1265-61752)
• Maximum voltage and current is 3 kV and
20 A.
N1259A-020 High Voltage Bias-Tee • The N1259A-020 option is furnished with
two SHV-SHV cables (N1254A-512) and
two SHV-banana adapters (N1254A-513).
• The N1259A-020 is a built-in
factory-installed accessory of the
N1259A-001.
N1259A-021 1 M R-box • R-box can be replaced with other R-box
easily by N1259A users.
N1259A-022 100 k R-box
N1259A-030 1 k R-box
N1259A-035 Universal R-box
N1259A-300 Module Selector • Furnished with a 1.5 m digital I/O control
cable (16493G-001), maximum 35VA
• The N1259A-300 is a built-in and
factory-installed option for the
N1259A-001.
Model/Option Description Additional Information
Collector / Drain
Emier / Source Base / Gate
N1259A Opt 013
Force Sense
Force Sense
Force Sense
Curve Tracer Test Adapter Socket
1
2
5
6
4
3
A
BC
59
