1-14 Keysight B1505A Configuration and Connection Guide
Configuration Guide

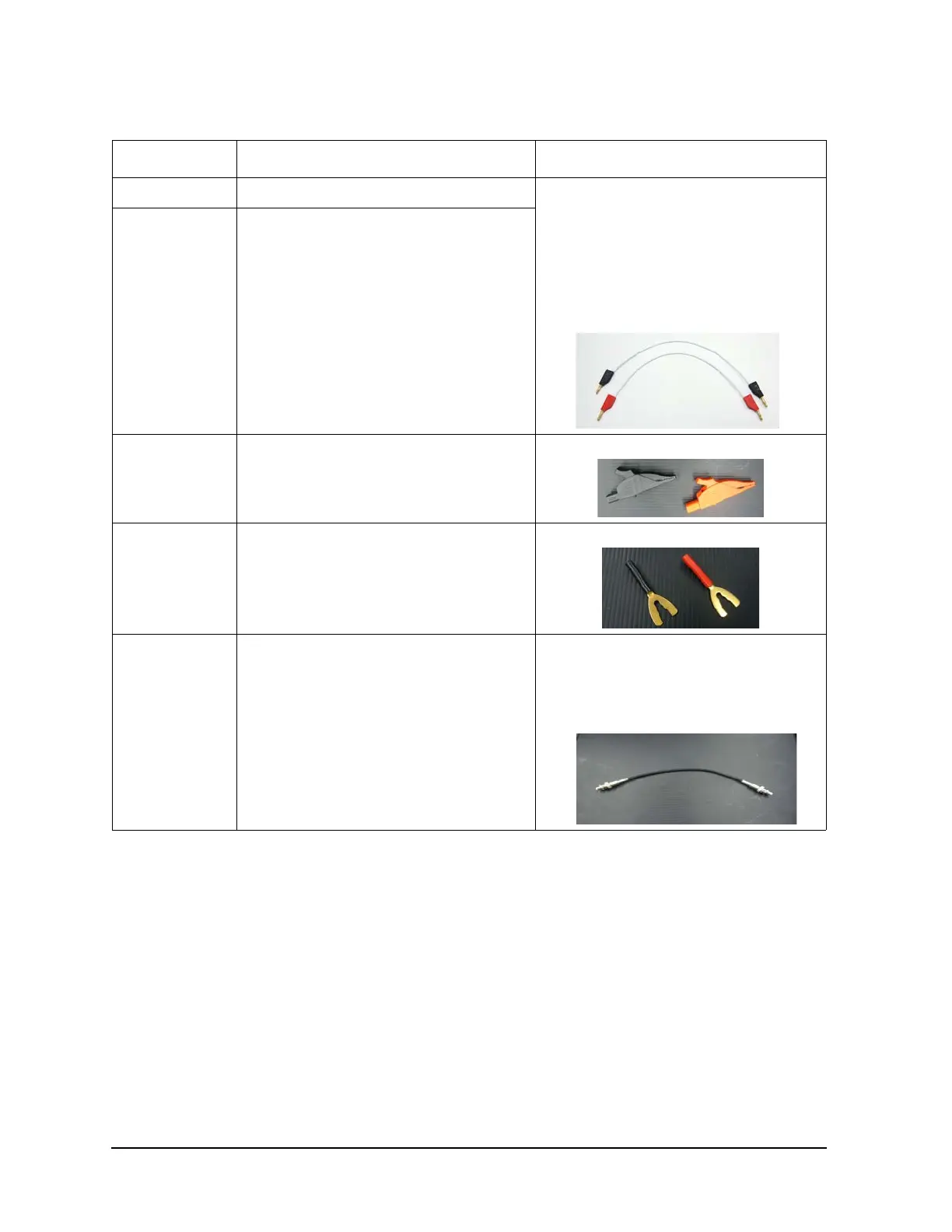

N1259A Test Fixture for Power Device
N1254A-508 Connection wire, red 1 ea. • The N1254A-508/509 Connection Wire
supports 40A current, but does not
support 500 A/1500 A current flow on the
N1265A Ultra High Current
Expander/Fixture.
• Maximum voltage and current is 3 kV and
40 A.
• The cable length is 250 mm.
N1254A-509 Connection wire, black 1 ea.
N1254A-510 Dolphin clip adapter, black 1 ea. and red 1ea.
N1254A-511 Cable lug adapter, black 1 ea. and red 1ea.
N1254A-512 SHV to SHV cable 350 mm, 1 ea. • The N1259A-020 High Voltage Bias-tee
is furnished with two N1254A-512
cables.
• The N1254A-513 adapter is required to
connect the banana plug.
Model/Option Description Additional Information
