Keysight Technologies B1505A Configuration Guide

7-36 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Configuration Examples for Lateral Device Measurement with Wafer Prober

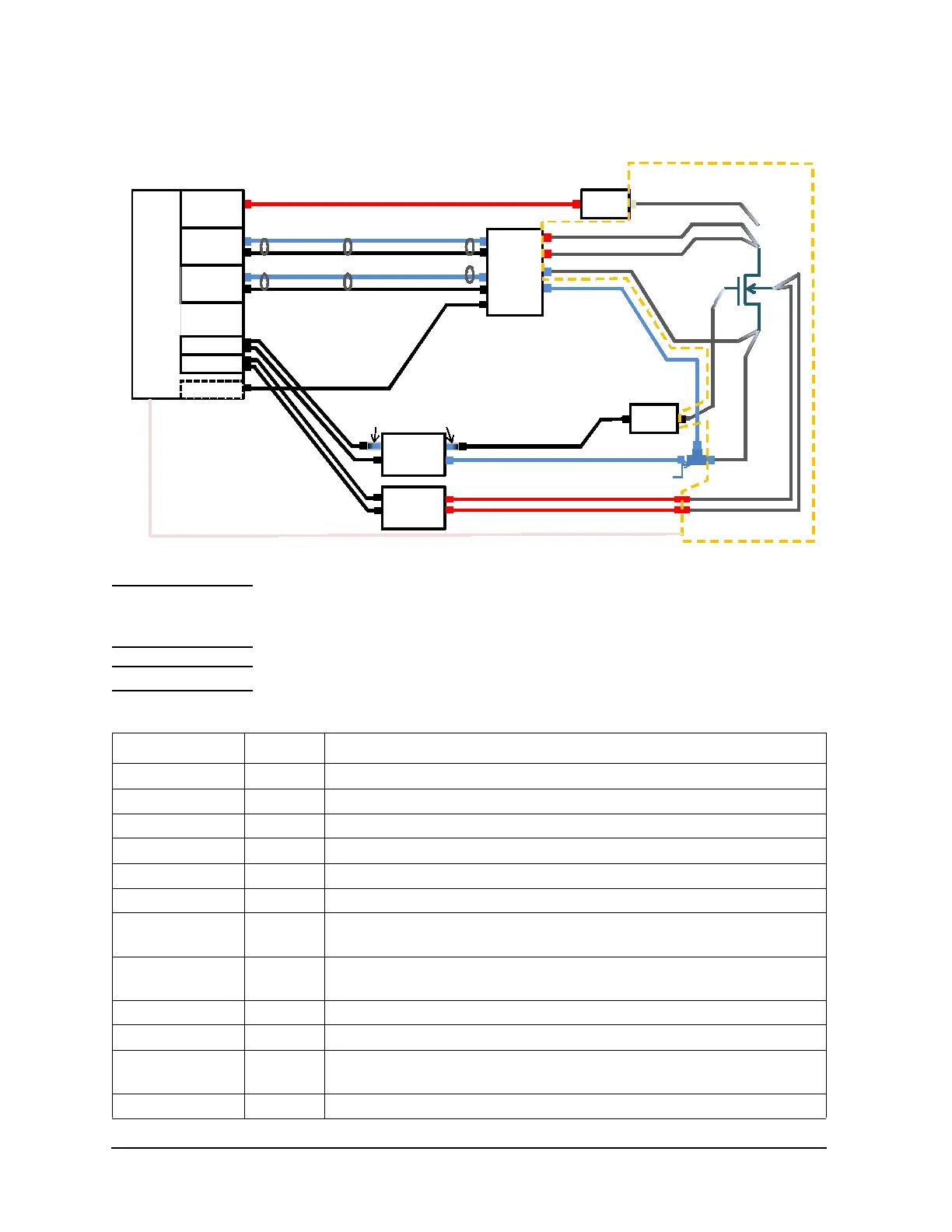

Figure 7-19 Connection example for 3kV, 40A measurement without N1258A Module Selector
NOTE Module selector is available up to 30 A. If 40 A capability is required, please connect
16493S-020 Dual HCSMU Kelvin Connection Adapter without a N1258A Module
Selector (See Figure 7-19).
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-17 Required equipment, accessories, and cables
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1511B-FG 1 Medium Power Source/Monitor Unit module (100 V/ 100 mA)
B1512A-FG 2 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493S 1 High Current Source Monitor Unit Cable
16493S-020 1 Dual HCSMU Combination Adapter (This adapter is used when a N1258A
Module Selector is not used)
16493S-021 1 Dual HCSMU Combination Adapter (This adapter is used with a N1258A
Module Selector)
16493S-011 1 High Current Source Monitor Unit non-Kelvin Adapter
16493T 1 High Voltage Source Monitor Unit Cable
16493T-001 or
002
2 High Voltage Source Monitor Unit Cable (1.5 m)
16493U 1 High Current BNC Coaxial Cable
HCSMU
Dual HCSMU
CombinaƟon
adapter
16493S-021
Dual HCSMU
Kelvi n
CombinaƟon
adapter
16493S-020
HVSMU
HCSMU
GND
MCSMU
B1505A
D
G
S
HCSMU Non-
Kelvin adapter
16493S-011
HF
HS
LS
LF
R-Box
1kO
N1262A-010
R-Box
100kO
N1262A-002
MPSMU
ProtecƟon
Adapter
N1261A-003
For Gate
N1254A-104 TRX(J) to BNC(P) adapter
F
S
F
S
F
S
16493J Interlock cable (Included in B1505A)
For Chuck
Chuck
For Drain
For Drain
For Dr ain
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16493L
(Included in B1505A)
16493S (Included in the HCSMU)
16494A
(Included in the MCSMU)
16494A-003
16493T
16493U-001
16493U-001
1250-2405
F
S
16494A
(Included in the MPSMU)
