Keysight B1505A Configuration and Connection Guide 7-57
Connection and Ordering Examples
Configuration Examples for Vertical Device Measurement with Wafer Prober

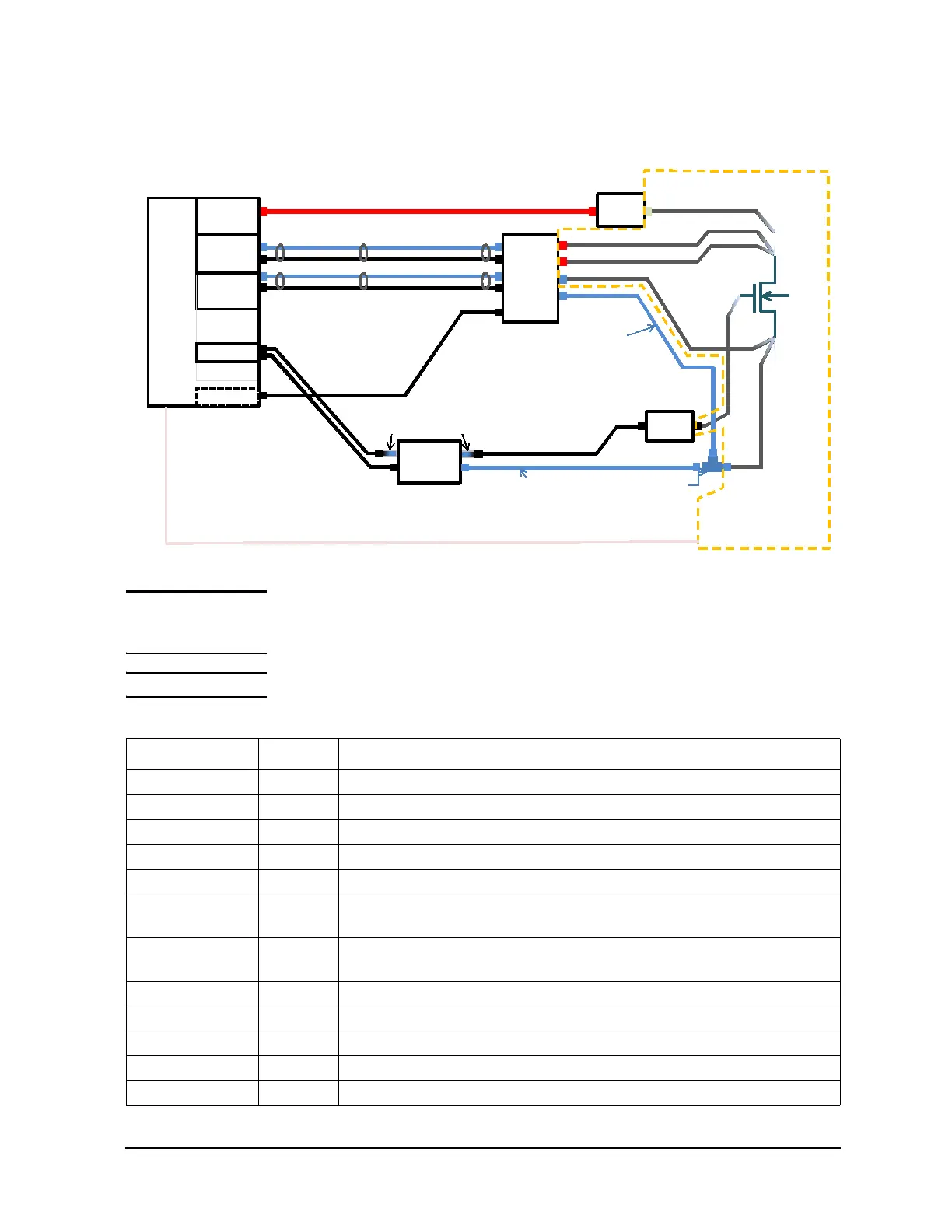

Figure 7-30 Connection example for 3kV, 40A measurement without a N1258A Module Selector
NOTE Module selector is available up to 30 A. If 40 A capability is required, please connect
16493S-020 Dual HCSMU Kelvin Connection Adapter without using a N1258A Module
Selector (See Figure 7-30).
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-27 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 2 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493S 1 High Current Source Monitor Unit Cable
16493S-020 1 Dual HCSMU Combination Adapter (This adapter is used when a N1258A
Module Selector is not used).
16493S-021 1 Dual HCSMU Combination Adapter (This adapter is used with a N1258A
Module Selector)
16493S-011 1 High Current Source Monitor Unit non-Kelvin Adapter
16493U 1 High Current BNC Coaxial Cable
16493U-001 2 High Current BNC Coaxial Cable (1.5 m)
16494A 1 Triaxial Cable
16494A-003 1 Triaxial Cable (80 cm)
HCSMU
Dual HCSMU
CombinaƟon
adapter
16493S-021
Dual HCSMU
Kelvi n
CombinaƟon
adapter
16493S-020
HVSMU
HCSMU
GNDU
MCSMU
B1505A
G
S
HCSMU Non-
Kelvin adapter
16493S-011
HF
HS
LS
LF
R-Bo x
100kO
N1262A-002
For Gate
For Dr ain
For Dr ain
N1254A-104 TRX(J) to BNC(P) adapter
F
S
F
S
For Drain
F
S
16493J Interlock cable (Included in B1505A)
D
(Chuck)
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16493L
(Included in B1505A)
16493S (Included in the HCSMU)
16494A
(Included in the MCSMU)
16494A-003
R-Box
1kohm
N1262A-010
16493U-001
1250-2405
16493U-001
To Next Page
