Keysight Technologies B1505A Configuration Guide

1-22 Keysight B1505A Configuration and Connection Guide
Configuration Guide

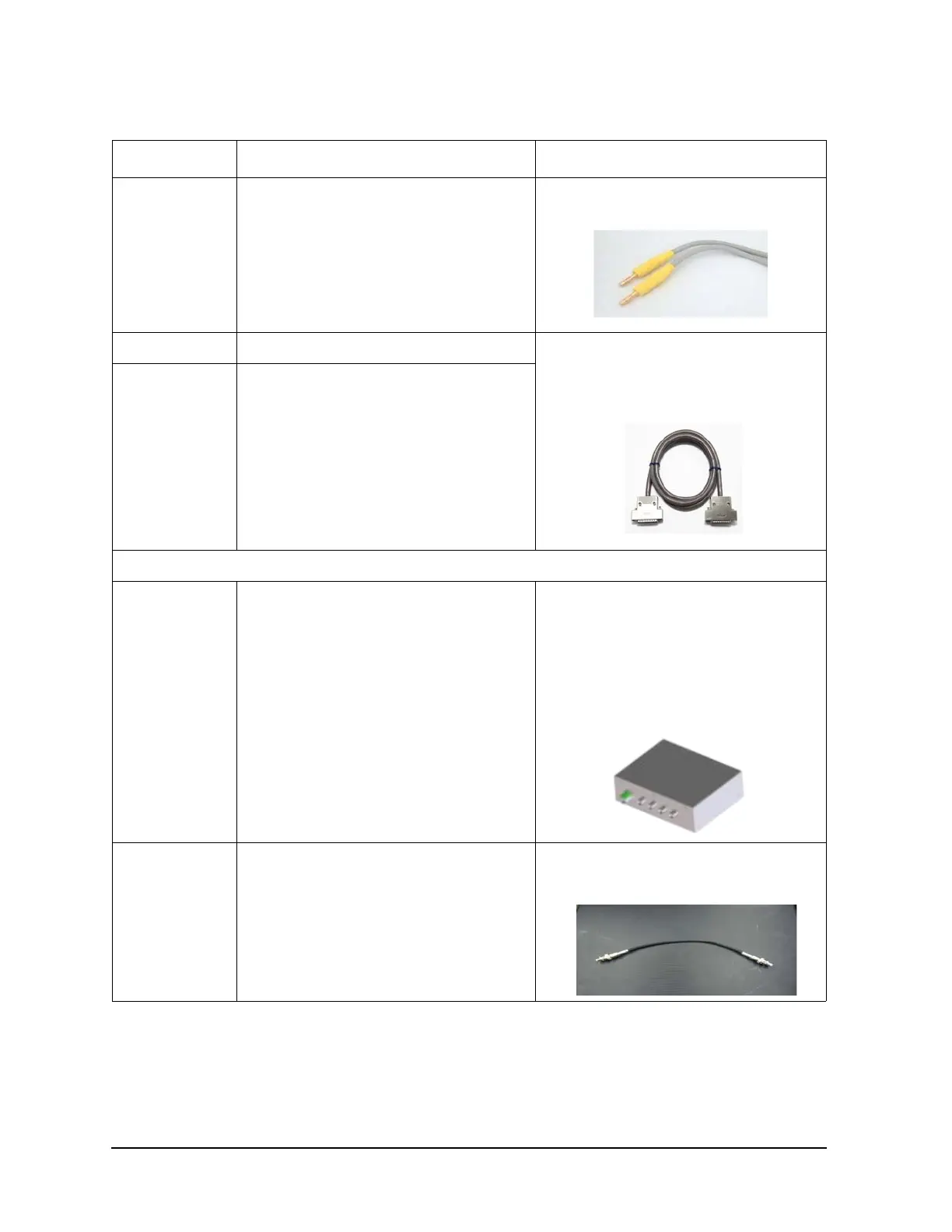

N1265A Ultra High Current Expander/Fixture
N1254A-523 1500 A Ultra High Current Banana to Open
End Cable, 1 m, 2 ea
• Max voltage and current are 3 kV and
1500 A.
16493G-001 Digital I/O control cable (1.5 m) • The N1265A-001 is furnished with a
16493G-001 cable.
• Cable length 1.5 m or 3.0 m can be
specified by option 001 or 002.
16493G-002 Digital I/O control cable (3.0 m)
For capacitance measurement
N1260A High Voltage Bias-Tee • The N1265A does not have a built-in high
voltage bias-tee option like the N1259A.
The N1260A is required to make
capacitance measurement with the
N1265A.
• The N1260A-STD is a mandatory option.
• The N1260A High Voltage Bias-Tee is
not furnished with any cables.
N1254A-512 SHV to SHV cable 350mm, 1 ea. • The N1254A-513 SHV Jack to Banana
Adapter is required to connect a banana
plug.
