Keysight Technologies B1505A Configuration Guide

Keysight B1505A Configuration and Connection Guide 1-49
Configuration Guide
Accessories for Wafer Prober and Your Own Test Fixture

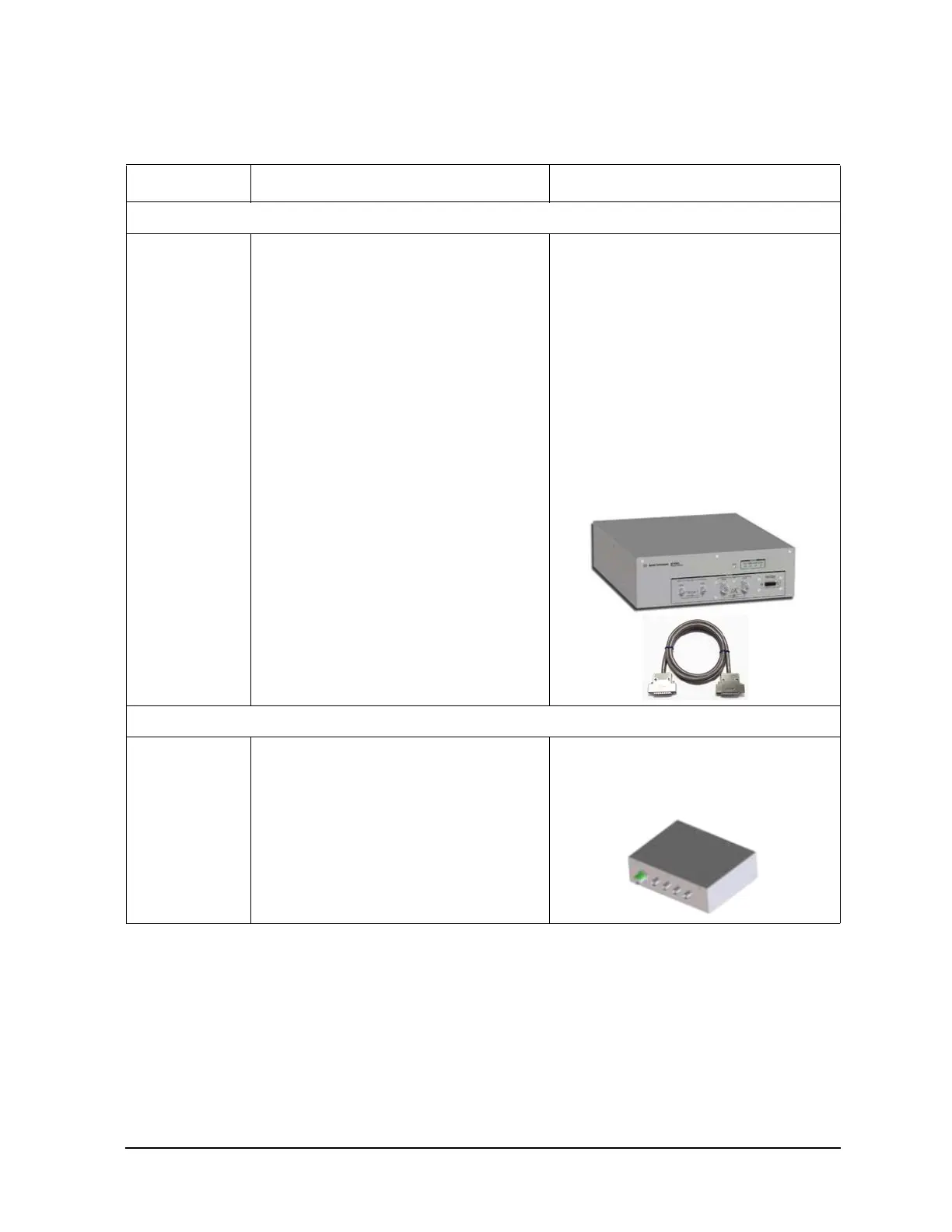

Table 1-26 Accessories for Wafer Prober or Your Own Fixture
Model/Option Description Additional Information
Module Selector
N1258A Module Selector for B1505A • The N1258A is furnished with 1.5 m
digital I/O control cable (16493G-001).
Maximum 65 VA
• The N1258A has a built-in GNDU
protection adapter, a built-in HPSMU
protection adapter and a built-in
HCSMU Kelvin adapter.
• Do not connect or put any conductor on
the HCSMU Low Force and Low Sense
terminals, outer conductor of the
coaxial connectors. Connecting or
putting conductor of circuit common,
chassis ground, or any potential on
causes the measurement error.
For High Voltage Capacitance Measurement
N1260A High Voltage Bias-Tee • The N1260A-STD is a mandatory
option.
• The N1260A High Voltage Bias-Tee is
not furnished with any cables.
