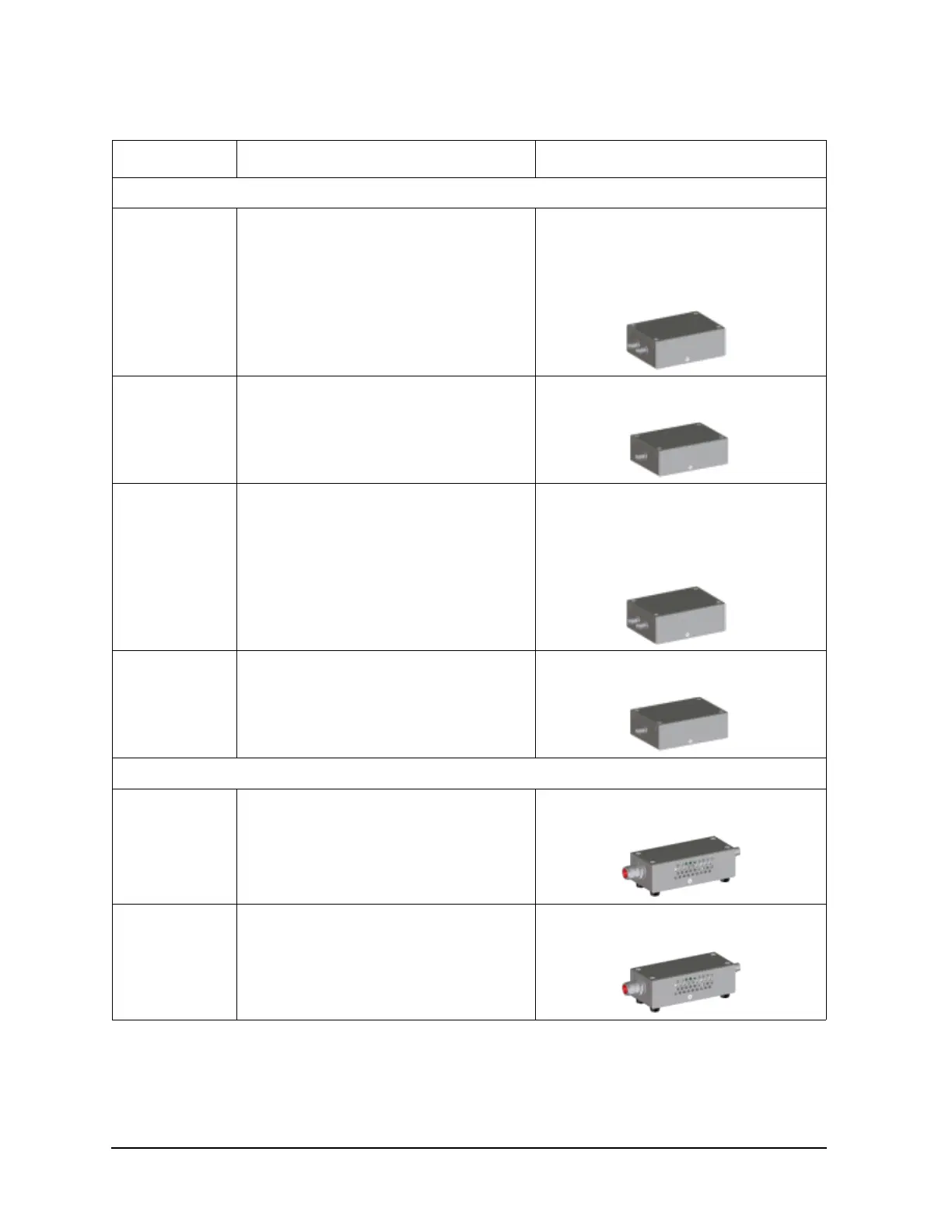

Accessories for Wafer Prober and Your Own Test Fixture
Protection Adapter
N1261A-001 Protection adapter for High Power Source
Monitor Unit (Triaxial output)
• Two Triaxial inputs (Force/Sense) and
two Triaxial outputs (Force/Sense).
• This adapter is used to protect not only
B1510A HPSMU but also B1511A/B
MPSMU.
N1261A-002 Protection Adapter Ground Unit (BNC
output)
• One Triaxial input for GNDU and two
BNC outputs (Force/Sense).
N1261A-003 Protection adapter for High Power Source
Monitor Unit (HV-Triaxial output)
• Two Triaxial inputs (Force/Sense) and
two High Voltage Triaxial outputs.
• This adapter is used to protect not only
B1510A HPSMU but also B1511A/B
MPSMU.
N1261A-004 Protection Adapter Ground Unit (SHV
output)
• One Triaxial input for GNDU and two
SHV outputs (Force/Sense).
High Voltage R-box
N1262A-001 1Mohm R-box • One High Voltage Triaxial input and
one SHV output.
N1262A-002 100 kohm R-box • One High Voltage Triaxial input and
one SHV output.
