412 N9030B PXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

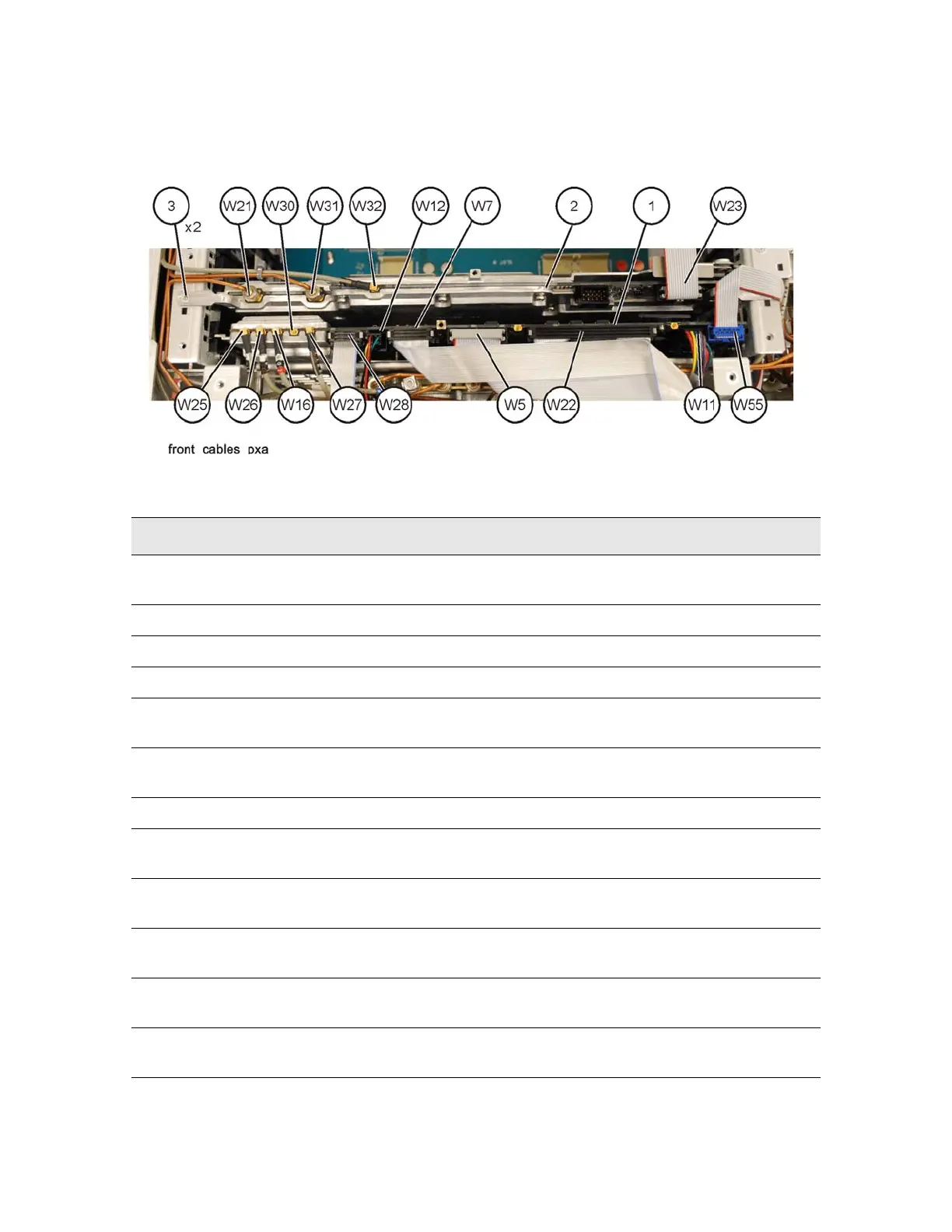

Figure 15-13 Front End Cables (A14 Synthesizer shown is Option EP1)
Table 15-15 Front End Cables
Item Description Keysight Part Number
1 A15 Front End Controller Option dependent
refer to Table 15-1
2 A14 Synthesizer Assembly, Standard (Option EP1) N9020-60008
W5 Cable, Ribbon, Attenuator A/B to Front End Controller J800 E4410-60157
W7 Cable, ribbon, Lowband Switch J4 to Front End Controller J700 N9020-60092
W11 Cable, wire harness, YTF Control, Front End Controller J300 to
YTF J1
N9020-60059
W12 Cable, wire harness, Preselector bypass switch control, FE
controller J801 (Option LNP / MPB, no B5X)
E4410-60159
W16 Cable, IF Out from Front End Assy J7 to Front End Control J902 8121-1862
W21 Cable, semi-rigid, LO Synthesizer Assy J20 to Front End Assy J5
(without EP0)
N9020-20019
W25 Cable, coax, Narrow Band IF Out, Front End Controller J900 to
Analog IF J100
8121-1865
W26 Cable, coax, Wideband IF Out, Front End Controller J901 to
Digital IF J15 (instruments without Option B1X, B2X, B5X)
8121-1919
W27 Cable, coax, Aux IF Out, Front End Controller J1100 to rear panel
Aux IF Out
8121-1859
W28 Cable, ribbon, Switched Filter control, Front End Controller J1300
to Switched Filter J1
N9020-60064
