N9030B PXA Signal Analyzer Service Guide 425
Replaceable Parts
Hardware

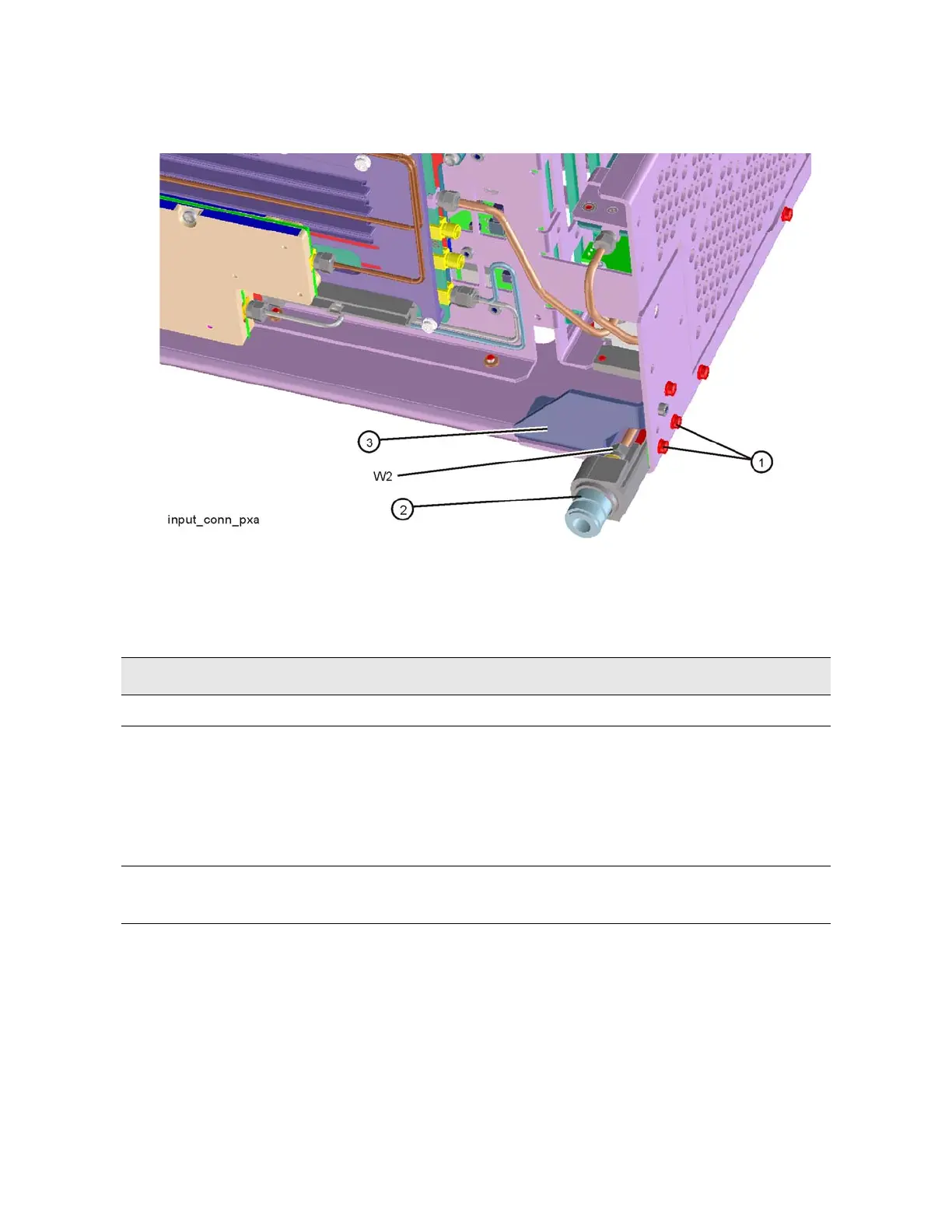

Figure 15-24 Input Connector
Table 15-25 Input Connector
Item Description Keysight Part Number
1Screw M3 X 0.5 (8 mm long) 0515-0372
2 J1 Type-N Input Connector Assembly (Options 503, 508, 513, 526
without Option C35)
J1 3.5 mm Input Connector Assembly (Option C35)
J1 2.4 mm Input Connector Assembly (Options 544, 550)
N9039-60030
N9020-60196
N9030-60011
W2 Cable, semi-rigid, RF Input to Attenuator A (Options 503, 508, 513, 526)
Cable, semi-rigid, RF Input to Attenuator A (Options 544, 550)
N9020-20100
N9020-20173
3 Gusset, Chassis (near RF input connector) W1312-00093
