The DAC output sense channels will make a complementary (voltage or current) measurement based on
the output mode of the corresponding DAC output channel:
l Channel 06 will make the measurement based on the output mode set in channel 04.
l Channel 07 will make the measurement based on the output mode set in channel 05.
If DAC output channel 04 is set to voltage mode, then the corresponding DAC sense channel 06 will meas-
ure current. If the output channel is set to current mode, the sense channel will measure voltage.

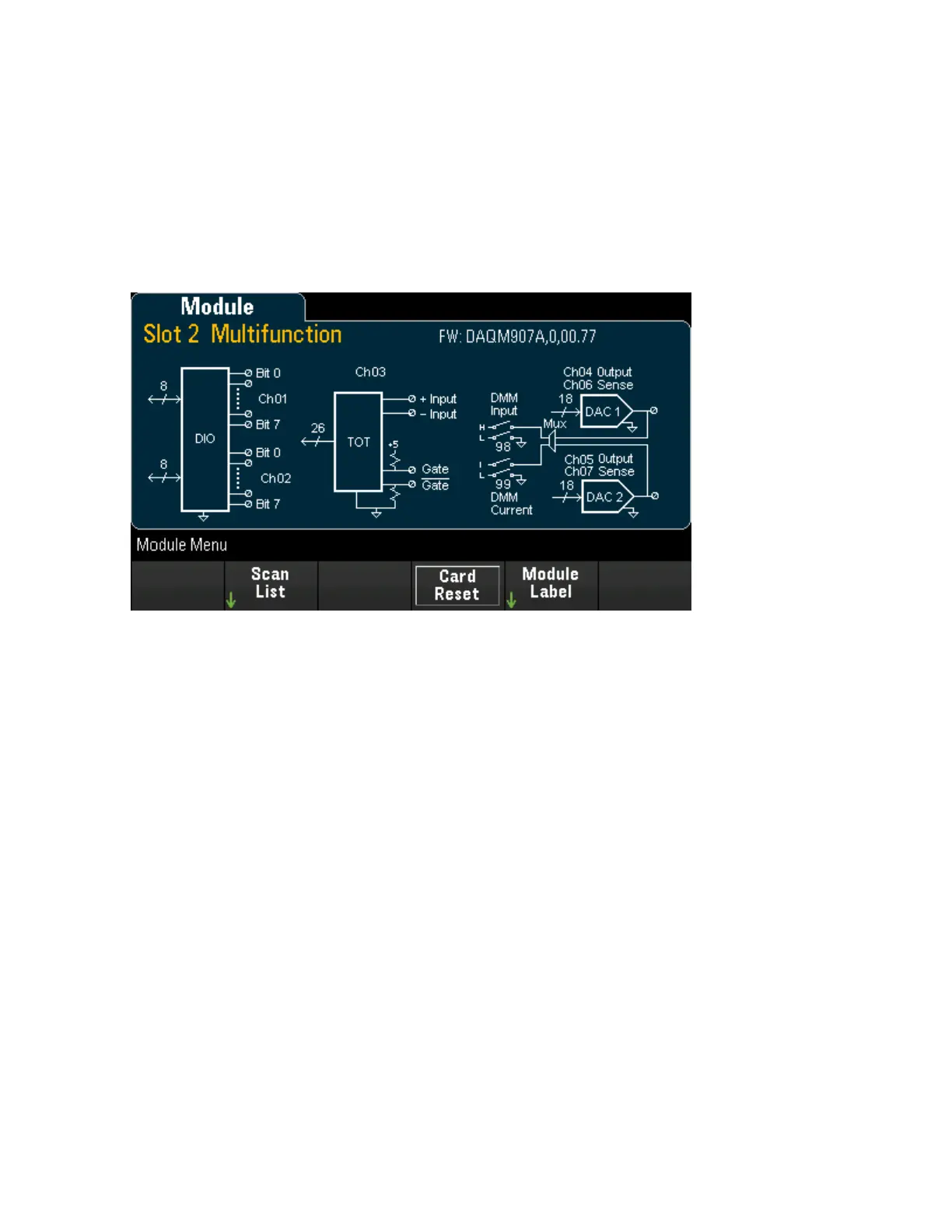

1. Press [Module] and use the knob or the front panel arrow keys to select the slot containing the mul-
tifunction module.
[Channel] Menu Overview
126 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
