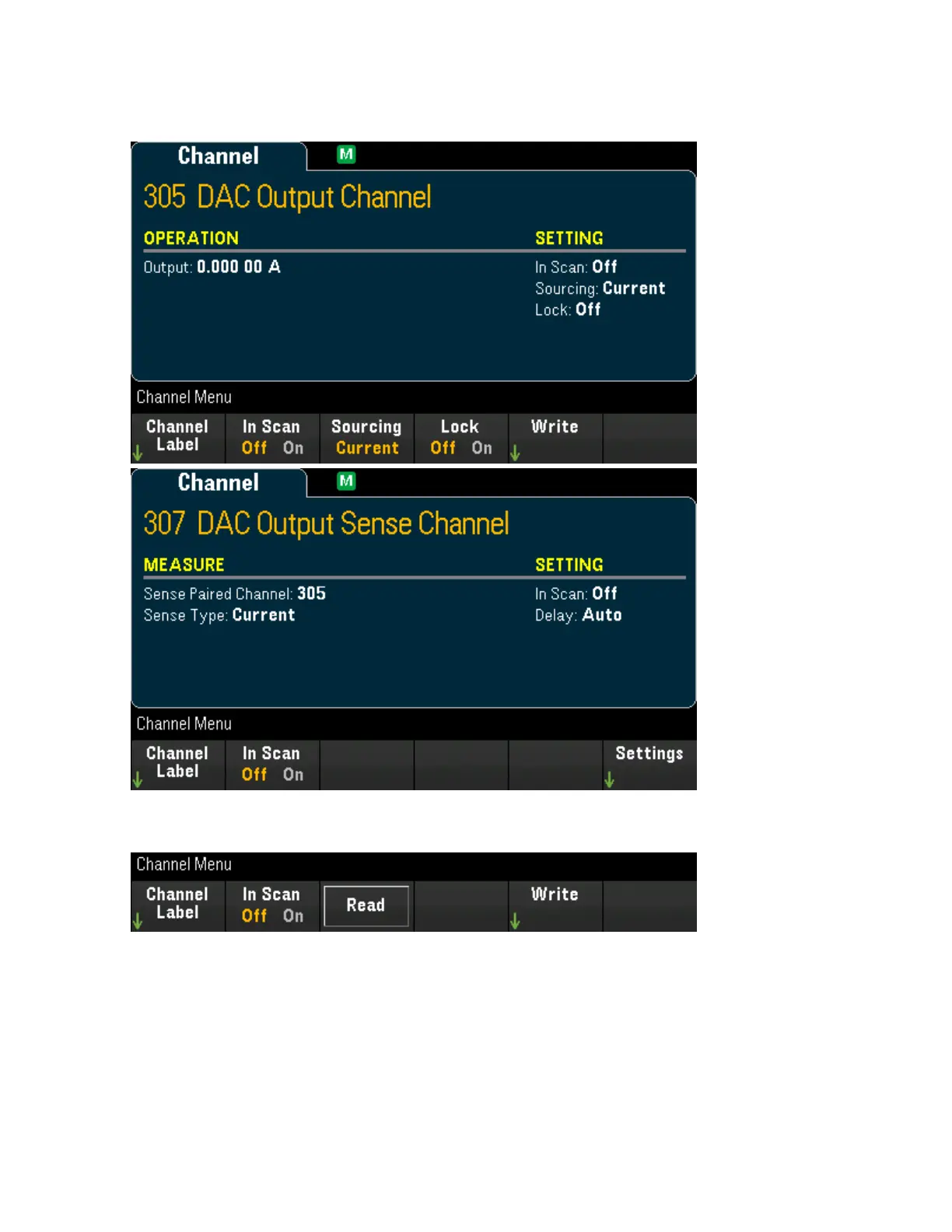

2. Press [Channel] and use the knob or the front panel arrow keys to select the DACoutput channels
(channel 04 and 05) or the DAC sense channels (channel 06 and 07).
3. Press In Scan to specify whether to include (On) or exclude (Off) the DAC channel from the scan list.
No actual measurement is made on this channel; the "measurement" will be the programmed DAC out-
put value.
4. Press Sourcing to set the output mode in the DAC output channel to Voltage or Current.
5. Enable Lock (On) to lock the DAC output channel mode or disable Lock (Off) to disable the lock on the
DAC output channel mode.
6. Press Write > Output to set the output voltage/current level, and then press Write Output to output
the voltage/current from the selected DAC output channel.
Keysight DAQ970A User's Guide 127
[Channel] Menu Overview
