Keysight DAQ970A User Guide

1.
Repeat step 1-4 as mentioned above.
2. Press [Channel] and use the knob or the front panel arrow keys to set the channel into Channel 402.
Press In Scan and enables the softkey to include channel 402 in the scan list. Then press Equation >
Avg(list), use the knob or the front panel arrow keys to specify the Channel A softkey to channel 101
and Channel B softkey to 401 computed channel.

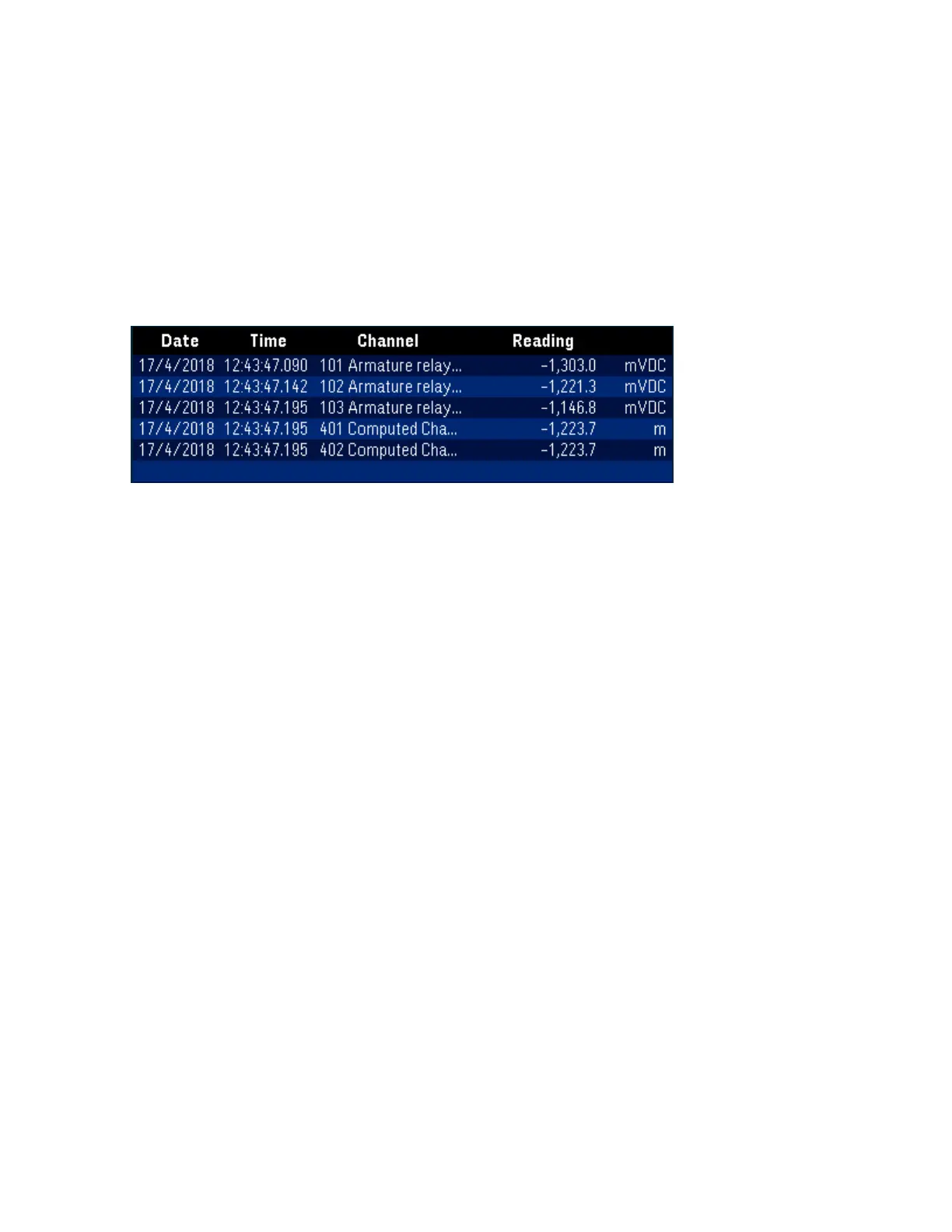

3. Press once on the [Scan] key to initiate a scan. You can view the scanned memory readings by pressing
[View] key. The result of Average operation will display as below:
Channel 402 = (Channel 101+102+103+401)/4
[Channel] Menu Overview
132 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
