Keysight DAQ970A User Guide

Sources of Error in DC Voltage Measurements
Common Mode Rejection
Ideally, the internal DMM is completely isolated from earth-referenced circuits. However, there is finite res-
istance and capacitance between the input LO terminal and earth ground. If the input terminals are both
driven by an earth-referenced signal (V
f
) then a current will flow through R
S
and create a voltage drop V
L

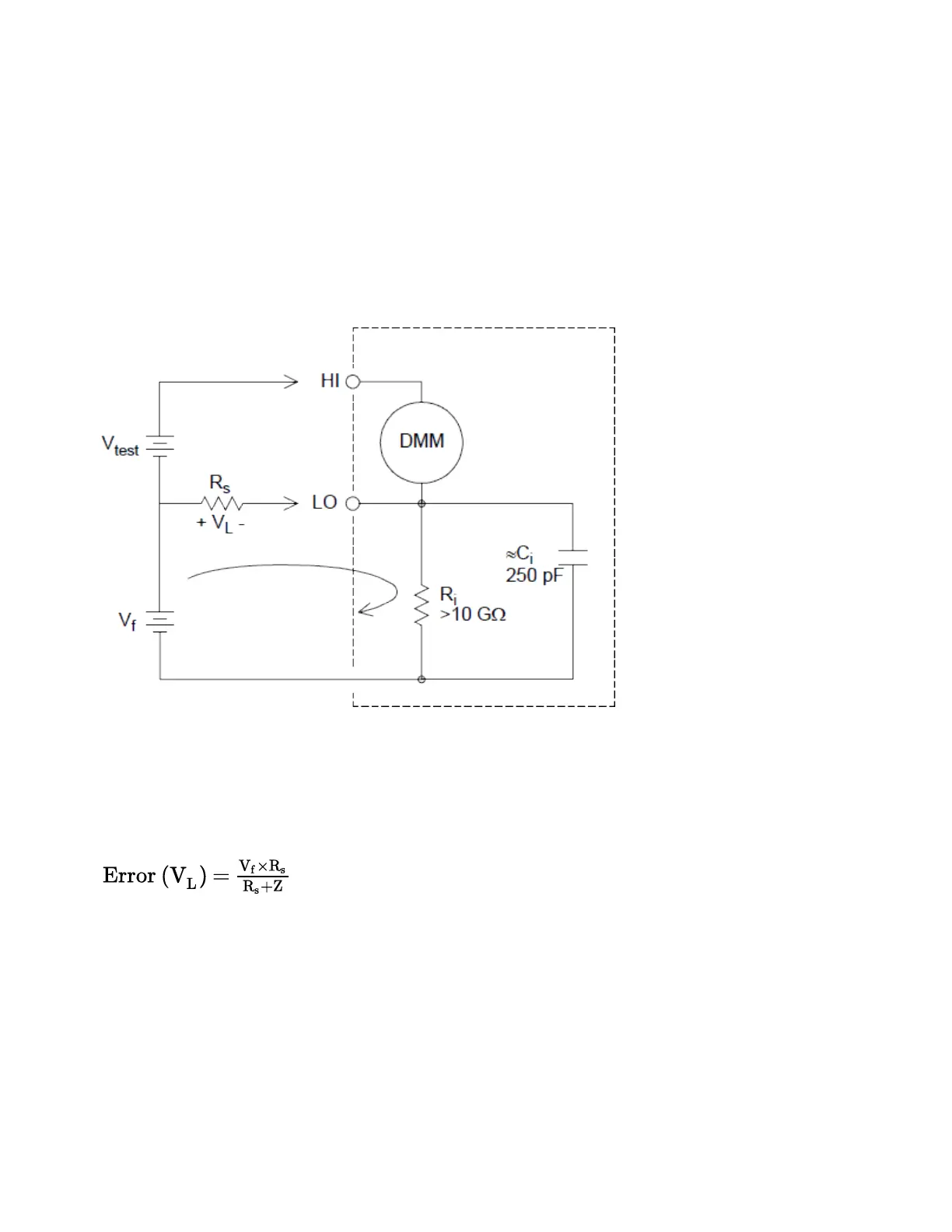

as shown below:
Any resulting voltage (V
L
) will appear as an input to the internal DMM. As the value of R
S
approaches zero,
so does the error. Additionally, if V
f
is at the power line frequency (50 Hz or 60 Hz), the noise can be
greatly reduced by setting the internal DMM’s integration time to 1 PLC or greater.
Where:
V
f
= Common mode float voltage
R
s
= LO lead resistance
R
i
= Isolation resistance
C
i
= Isolation capacitance
Z
i
= Parallel impedance of R
i
+C
i
Keysight DAQ970A User's Guide 195
4Measurement Tutorials

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
