(1) Y1 cursor tracks X1 cursor position.
(2) Y2 cursor tracks X2 cursor position.
(3) Cursor time and amplitude information, ∆X, ∆Y.
(4) Press X1 or X2 to display reading number.
These softkeys are available for Track Rdng at X mode:
l
X1 - Use the knob or the front panel arrow keys to control the X1 cursor.
l
X2 - Use the knob or the front panel arrow keys to control the X2 cursor.
l
∆X Lock - When On, keeps the X cursors a fixed distance apart as either cursor is moved.
Tip: To record the X and Y data and the delta X and Y data as a screen shot, take a screen shot of the Web
UI, not the front panel screen shot utility.
Press Reset Pan to set the pan (center reading) to "0".
Histogram

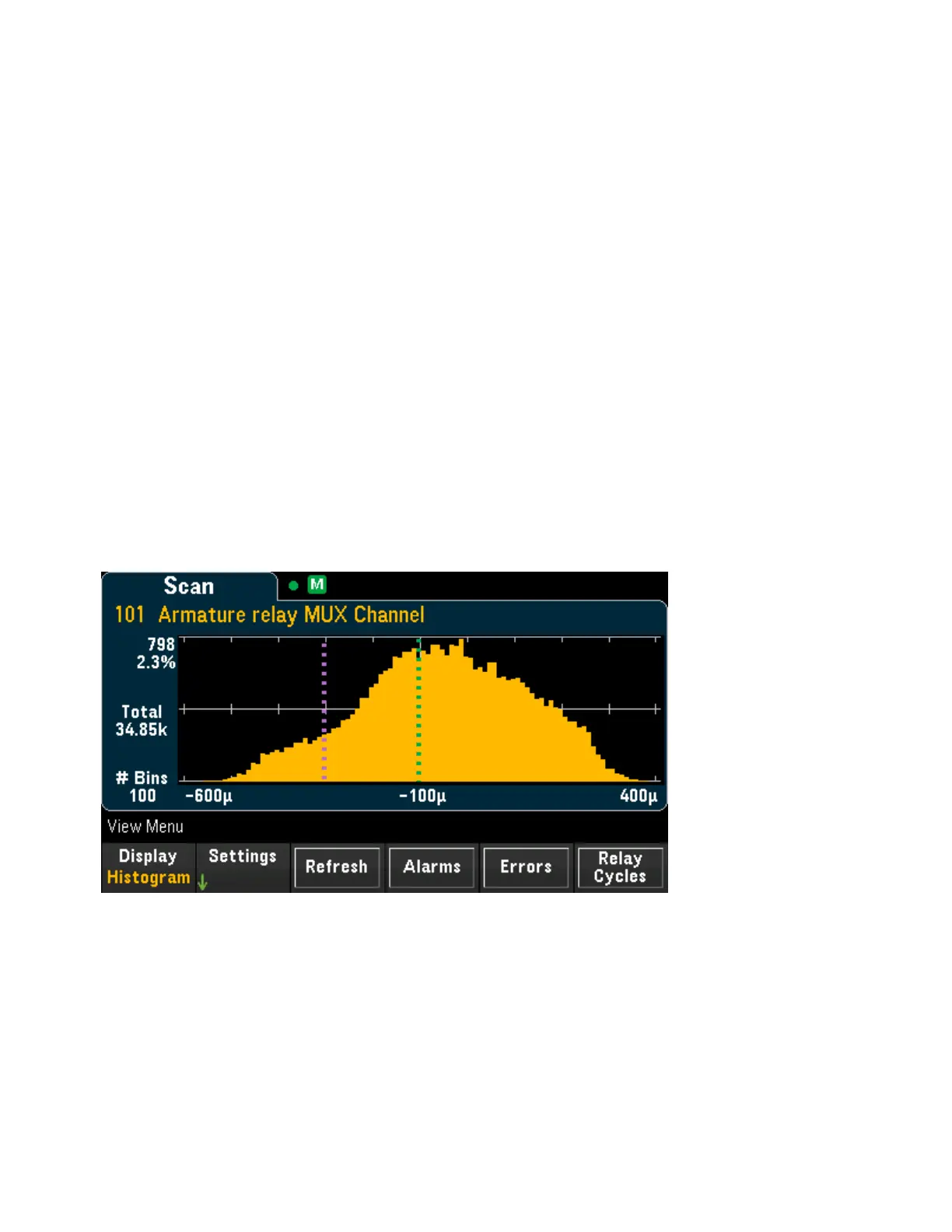

Displays the scanned memory readings in histogram format. Press Settings to configure the histogram.
The Cursors softkey behave as it does in the [Monitor] > Display > Histogram display. Press Refresh to recal-
culate the histogram, including any new readings.
Statistics
Displays the scanned memory readings of a selected channel in statistics format (Maximum, Minimum,
Peak to Peak, Average, and Standard Deviation). Toggle between Statistics to display the per-channel stat-
istics and Pk Times to display the time of occurrence of the per-channel minimum and maximum peak read-
ings.
