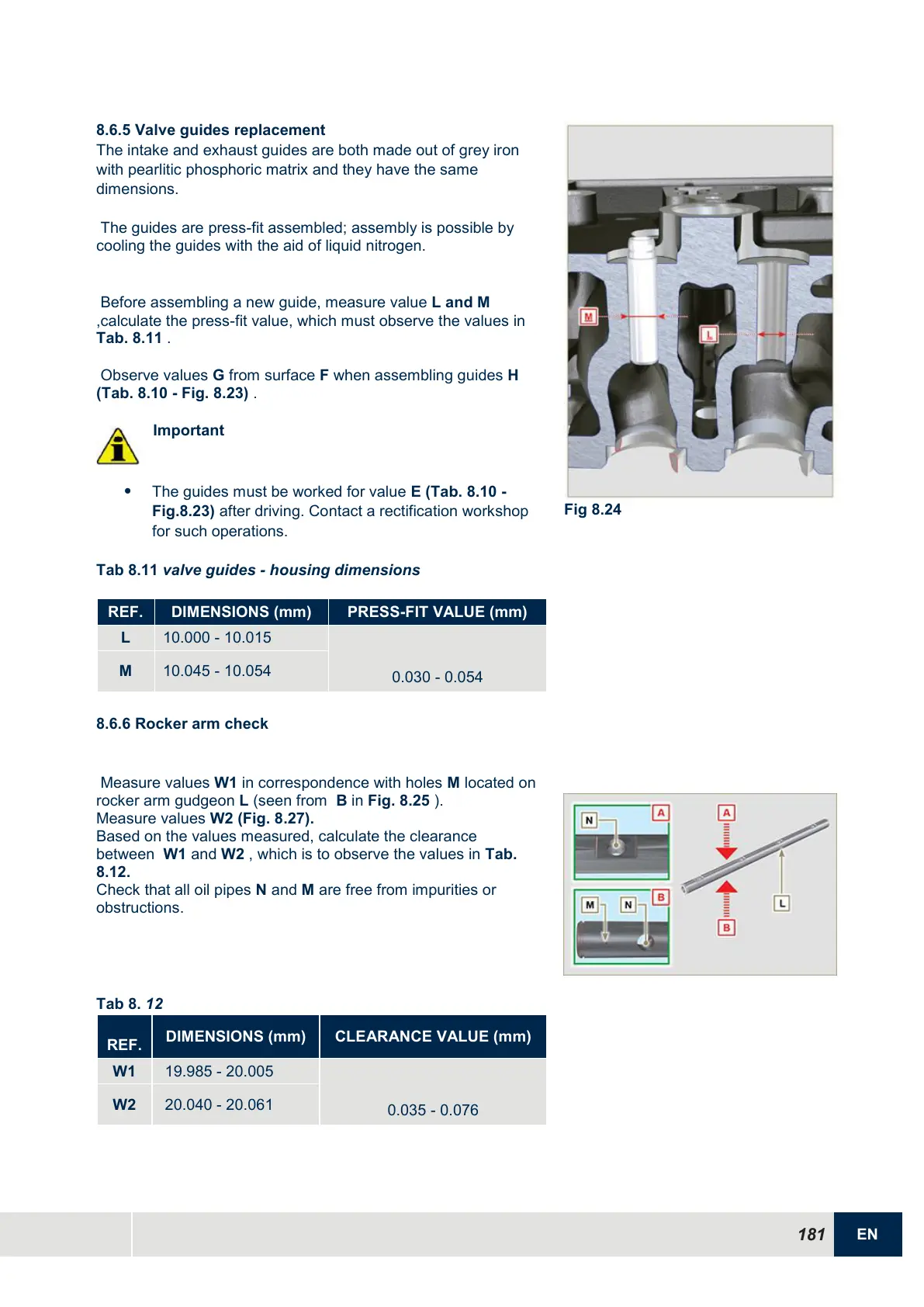

8.6.5 Valve guides replacement
The intake and exhaust guides are both made out of grey iron
with pearlitic phosphoric matrix and they have the same
dimensions.
The guides are press-fit assembled; assembly is possible by
cooling the guides with the aid of liquid nitrogen.
Before assembling a new guide, measure value L and M
,calculate the press-fit value, which must observe the values in
Tab. 8.11 .
Observe values G from surface F when assembling guides H
(Tab. 8.10 - Fig. 8.23) .
Important

The guides must be worked for value E (Tab. 8.10 -
Fig.8.23) after driving. Contact a rectification workshop
for such operations.
Tab 8.11 valve guides - housing dimensions
REF.
DIMENSIONS (mm)
PRESS-FIT VALUE (mm)
L
10.000 - 10.015
0.030 - 0.054
M
10.045 - 10.054
Fig 8.24
8.6.6 Rocker arm check
Measure values W1 in correspondence with holes M located on
rocker arm gudgeon L (seen from B in Fig. 8.25 ).
Measure values W2 (Fig. 8.27).
Based on the values measured, calculate the clearance
between W1 and W2 , which is to observe the values in Tab.
8.12.
Check that all oil pipes N and M are free from impurities or
obstructions.
Tab 8. 12
REF.
DIMENSIONS (mm)
CLEARANCE VALUE (mm)
W1
19.985 - 20.005
0.035 - 0.076
W2
20.040 - 20.061
