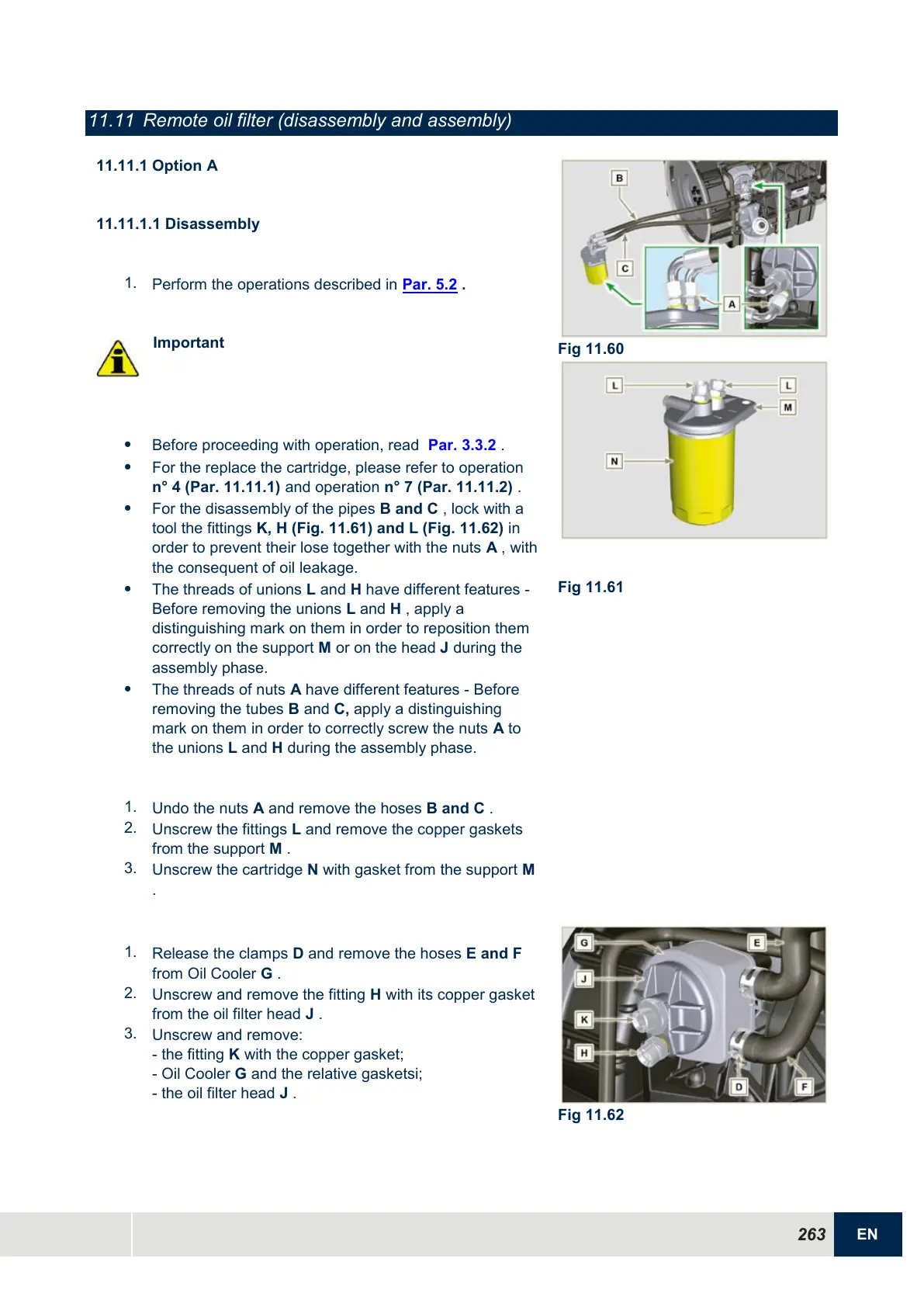

11.11 Remote oil filter (disassembly and assembly)
11.11.1 Option A
11.11.1.1 Disassembly
1.
Perform the operations described in Par. 5.2 .
Important

Before proceeding with operation, read Par. 3.3.2 .

For the replace the cartridge, please refer to operation
n° 4 (Par. 11.11.1) and operation n° 7 (Par. 11.11.2) .

For the disassembly of the pipes B and C , lock with a
tool the fittings K, H (Fig. 11.61) and L (Fig. 11.62) in
order to prevent their lose together with the nuts A , with
the consequent of oil leakage.

The threads of unions L and H have different features -
Before removing the unions L and H , apply a
distinguishing mark on them in order to reposition them
correctly on the support M or on the head J during the
assembly phase.

The threads of nuts A have different features - Before
removing the tubes B and C, apply a distinguishing
mark on them in order to correctly screw the nuts A to
the unions L and H during the assembly phase.
1.
Undo the nuts A and remove the hoses B and C .
2.
Unscrew the fittings L and remove the copper gaskets
from the support M .
3.
Unscrew the cartridge N with gasket from the support M
.
Fig 11.60
Fig 11.61
1.
Release the clamps D and remove the hoses E and F
from Oil Cooler G .
2.
Unscrew and remove the fitting H with its copper gasket
from the oil filter head J .
3.
Unscrew and remove:
- the fitting K with the copper gasket;
- Oil Cooler G and the relative gasketsi;
- the oil filter head J .
Fig 11.62
