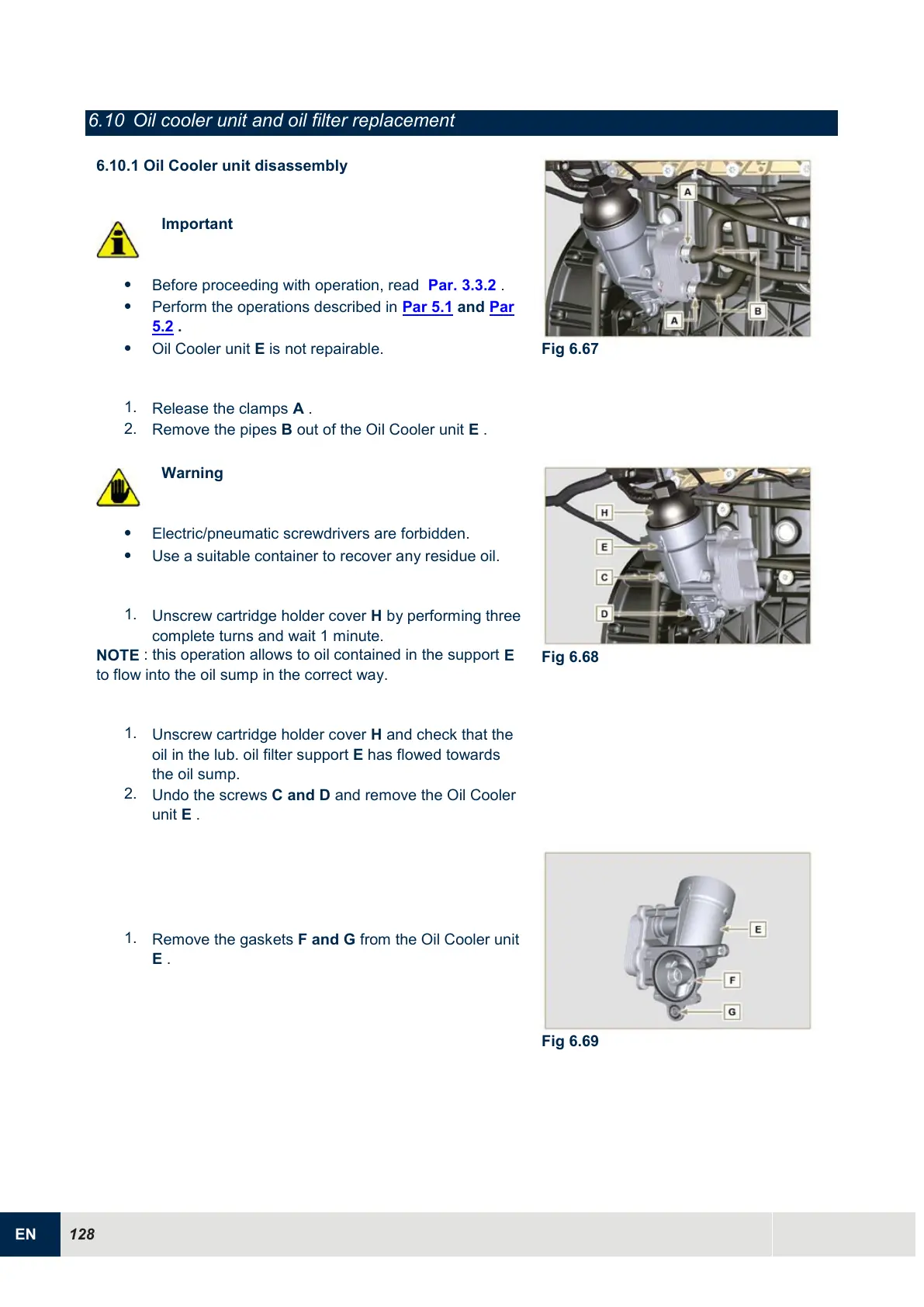

6.10 Oil cooler unit and oil filter replacement
6.10.1 Oil Cooler unit disassembly
Important

Before proceeding with operation, read Par. 3.3.2 .

Perform the operations described in Par 5.1 and Par
5.2 .

Oil Cooler unit E is not repairable.
1.
Release the clamps A .
2.
Remove the pipes B out of the Oil Cooler unit E .
Fig 6.67
Warning

Electric/pneumatic screwdrivers are forbidden.

Use a suitable container to recover any residue oil.
1.
Unscrew cartridge holder cover H by performing three
complete turns and wait 1 minute.
NOTE
: this operation allows to oil contained in the support
E
to flow into the oil sump in the correct way.
1.
Unscrew cartridge holder cover H and check that the
oil in the lub. oil filter support E has flowed towards
the oil sump.
2.
Undo the screws C and D and remove the Oil Cooler
unit E .
Fig 6.68
1.
Remove the gaskets F and G from the Oil Cooler unit
E .
Fig 6.69
