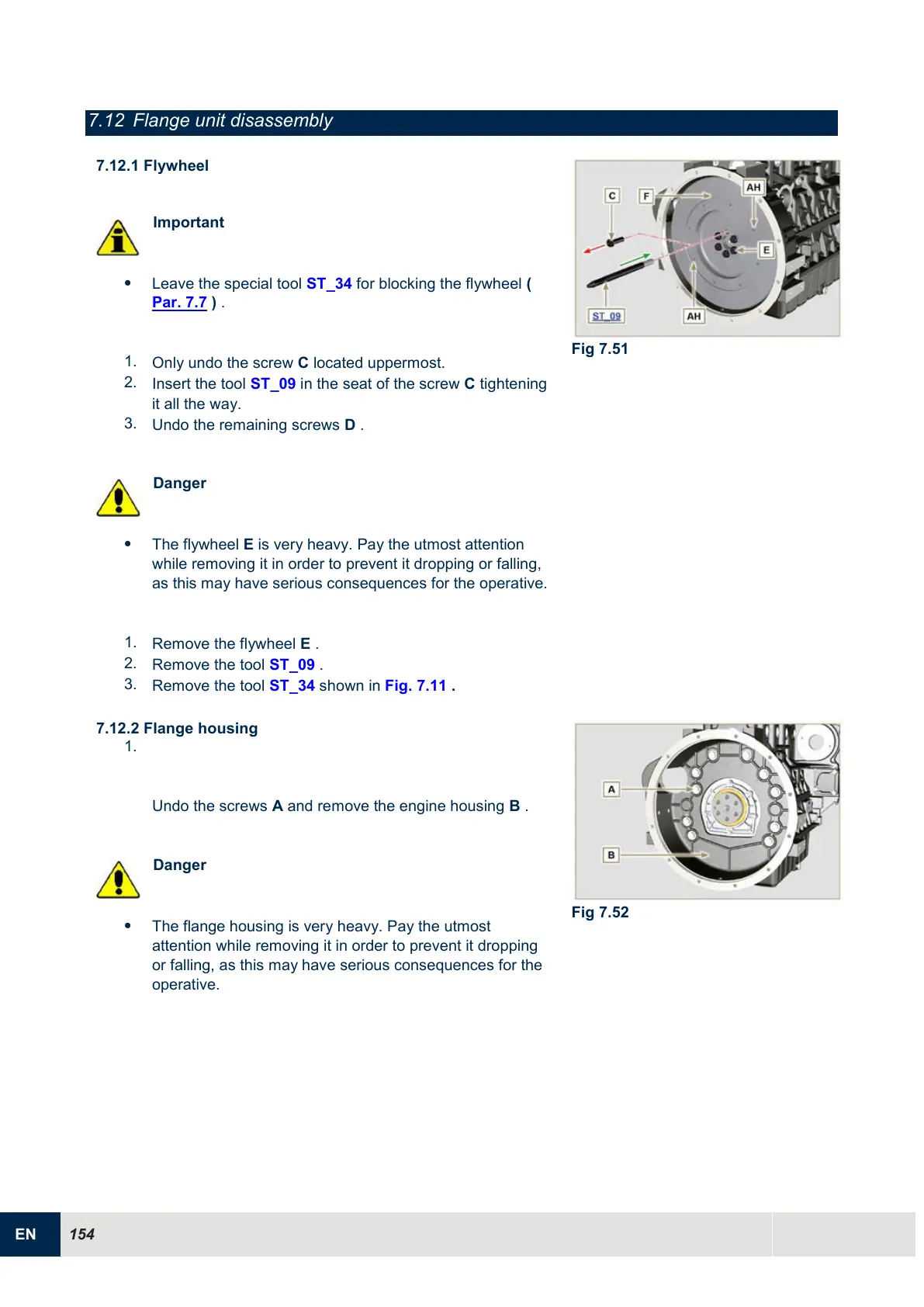

7.12 Flange unit disassembly
7.12.1 Flywheel
Important

Leave the special tool ST_34 for blocking the flywheel (
Par. 7.7 ) .
1.
Only undo the screw C located uppermost.
2.
Insert the tool ST_09 in the seat of the screw C tightening
it all the way.
3.
Undo the remaining screws D .
Danger

The flywheel E is very heavy. Pay the utmost attention
while removing it in order to prevent it dropping or falling,
as this may have serious consequences for the operative.
1.
Remove the flywheel E .
2.
Remove the tool ST_09 .
3.
Remove the tool
ST_34 shown in Fig. 7.11 .
Fig 7.51
7.12.2 Flange housing
1.
Undo the screws A and remove the engine housing B .
Danger

The flange housing is very heavy. Pay the utmost
attention while removing it in order to prevent it dropping
or falling, as this may have serious consequences for the
operative.
Fig 7.52
