Kohler KDI 1903 TCR Workshop Manual

EN
212

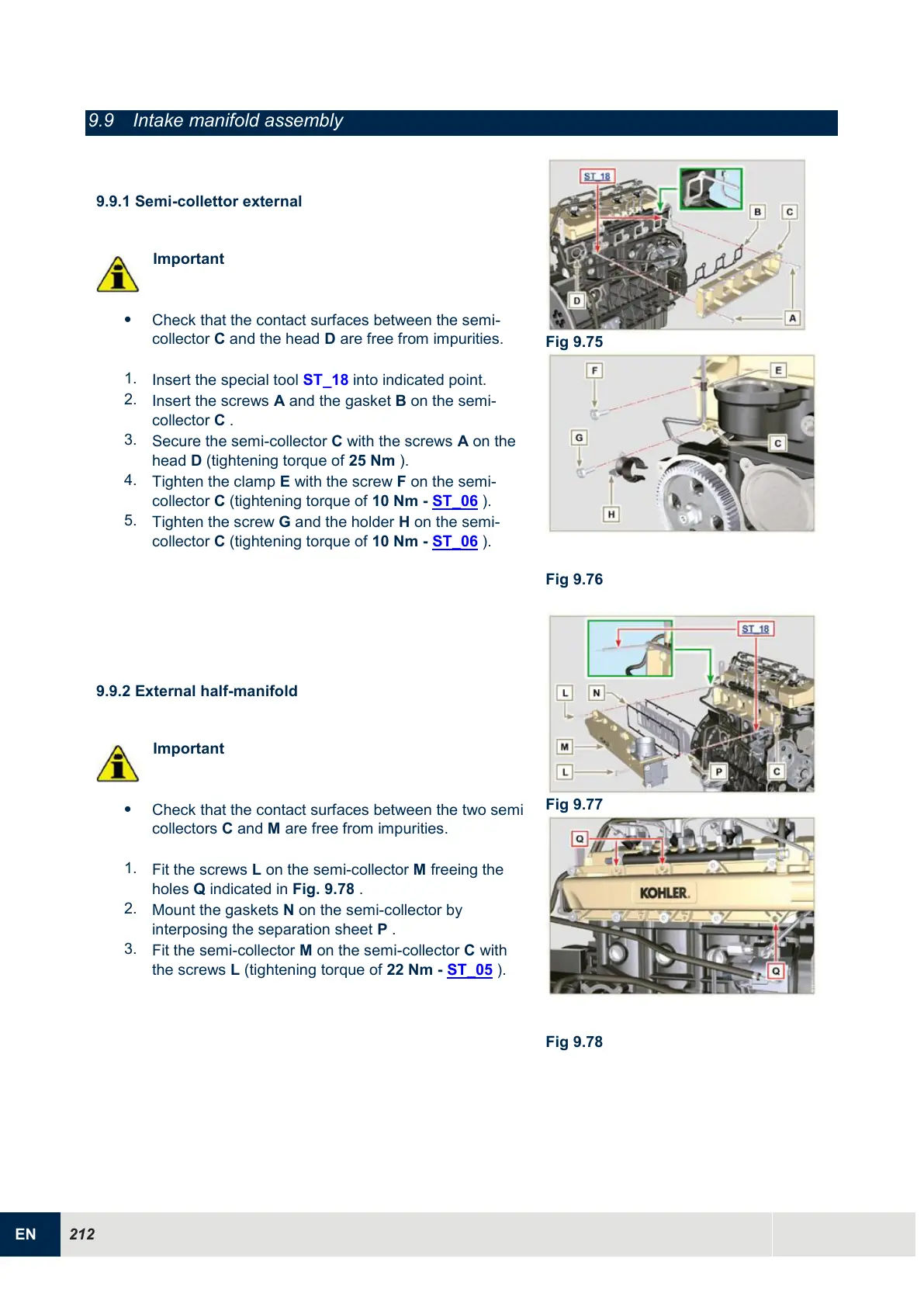

9.9 Intake manifold assembly
9.9.1 Semi-collettor external
Important

Check that the contact surfaces between the semi-
collector C and the head D are free from impurities.
1.
Insert the special tool ST_18 into indicated point.
2.
Insert the screws A and the gasket B on the semi-
collector C .
3.
Secure the semi-collector C with the screws A on the
head D (tightening torque of 25 Nm ).
4.
Tighten the clamp E with the screw F on the semi-
collector C (tightening torque of 10 Nm - ST_06 ).
5.
Tighten the screw G and the holder H on the semi-
collector C (tightening torque of 10 Nm - ST_06 ).
Fig 9.75
Fig 9.76
9.9.2 External half-manifold
Important

Check that the contact surfaces between the two semi
collectors C and M are free from impurities.
1.
Fit the screws L on the semi-collector M freeing the
holes Q indicated in Fig. 9.78 .
2.
Mount the gaskets N on the semi-collector by
interposing the separation sheet P .
3.
Fit the semi-collector M on the semi-collector C with
the screws L (tightening torque of 22 Nm - ST_05 ).
Fig 9.77
Fig 9.78
