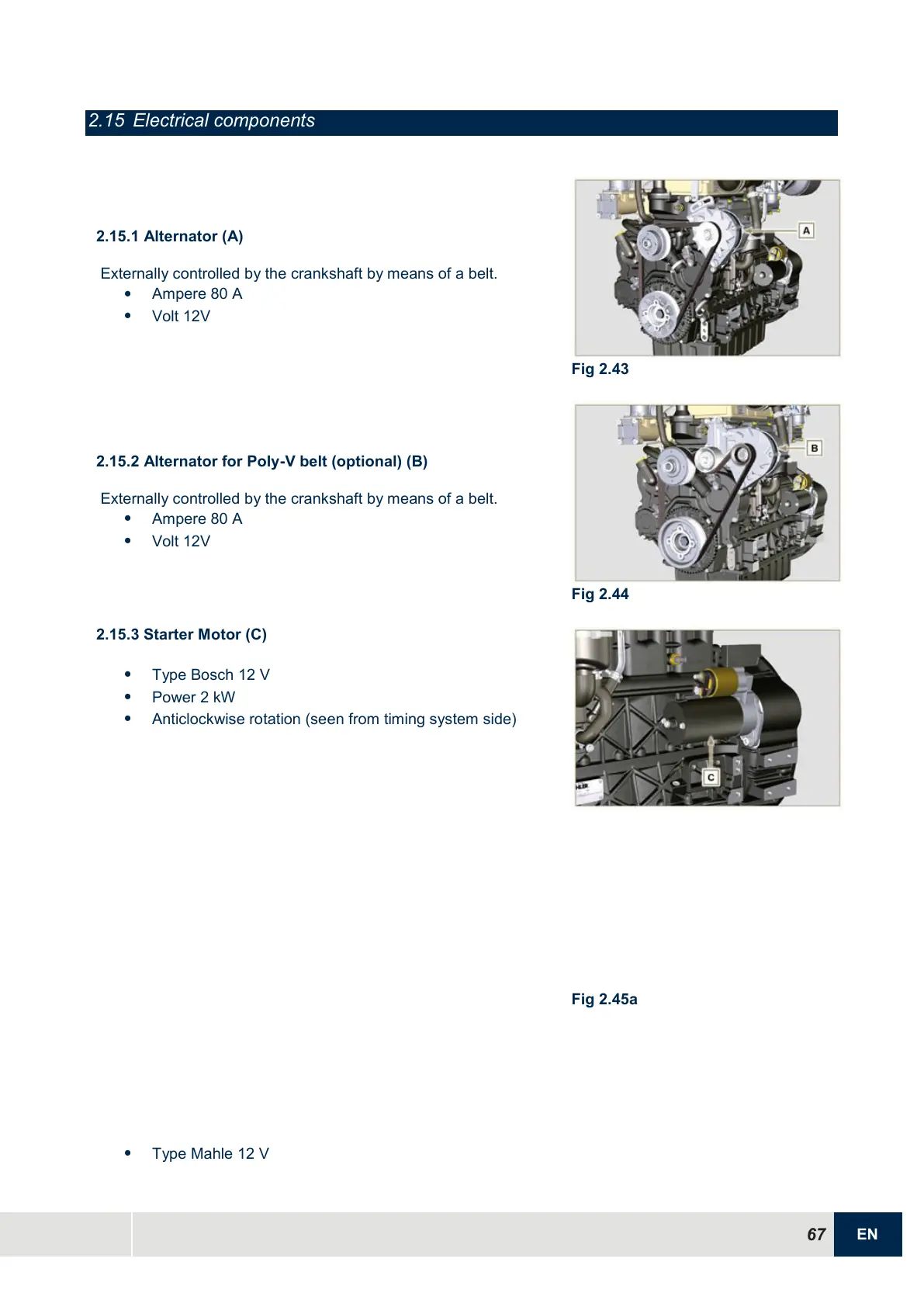

2.15 Electrical components
2.15.1 Alternator (A)
Externally controlled by the crankshaft by means of a belt.

Ampere 80 A

Volt 12V
Fig 2.43
2.15.2 Alternator for Poly-V belt (optional) (B)
Externally controlled by the crankshaft by means of a belt.

Ampere 80 A

Volt 12V
Fig 2.44
2.15.3 Starter Motor (C)

Type Bosch 12 V

Power 2 kW

Anticlockwise rotation (seen from timing system side)

Type Mahle 12 V
Fig 2.45a
