EN
214

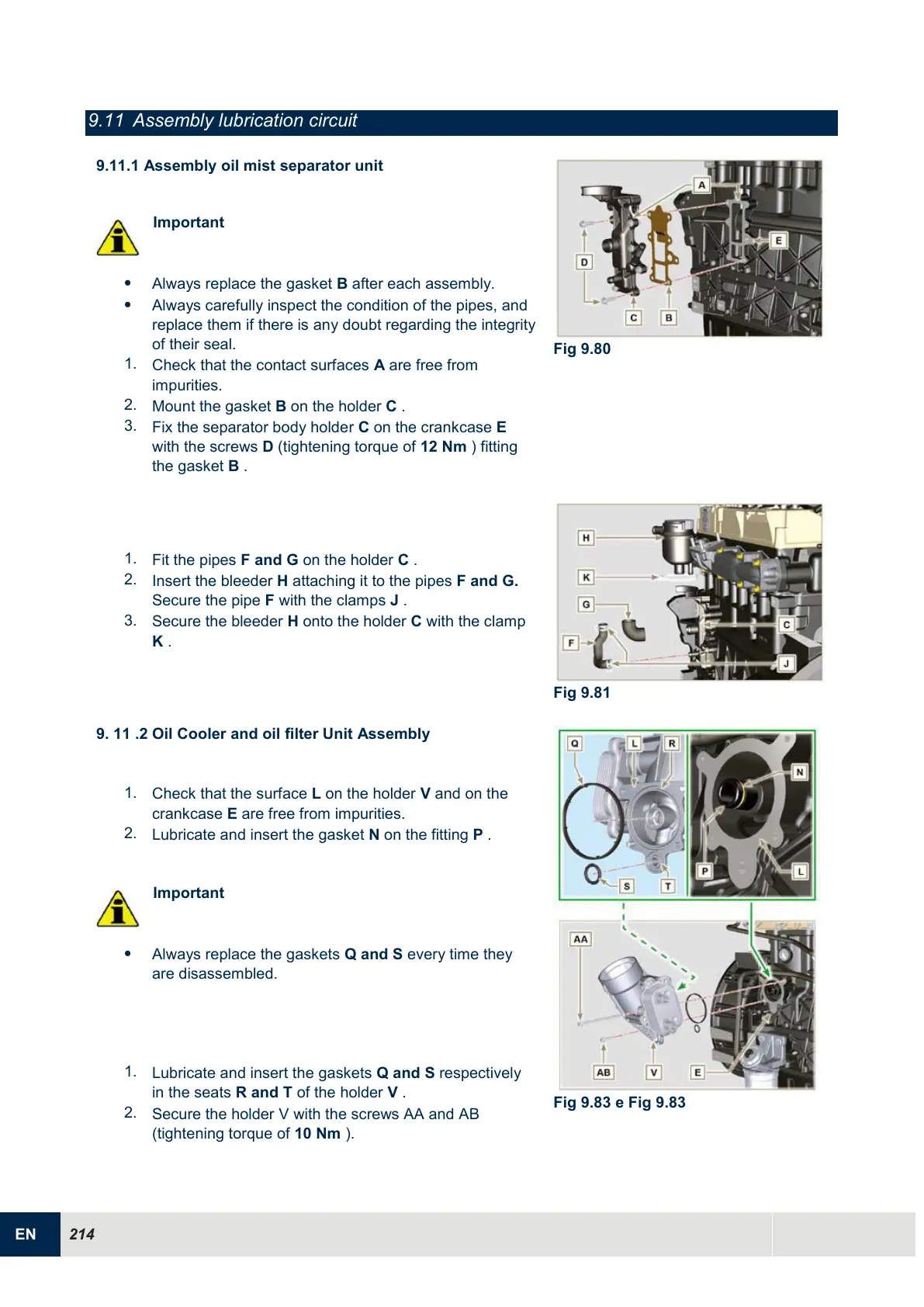

9.11 Assembly lubrication circuit
9.11.1 Assembly oil mist separator unit
Important
ï‚·
Always replace the gasket B after each assembly.
ï‚·
Always carefully inspect the condition of the pipes, and
replace them if there is any doubt regarding the integrity
of their seal.
1.
Check that the contact surfaces A are free from
impurities.
2.
Mount the gasket B on the holder C .
3.
Fix the separator body holder C on the crankcase E
with the screws D (tightening torque of 12 Nm ) fitting
the gasket B .
Fig 9.80
1.
Fit the pipes F and G on the holder C .
2.
Insert the bleeder H attaching it to the pipes F and G.
Secure the pipe F with the clamps J .
3.
Secure the bleeder H onto the holder C with the clamp
K .
Fig 9.81
9.
11 .2 Oil Cooler and oil filter Unit Assembly
1.
Check that the surface L on the holder V and on the
crankcase E are free from impurities.
2.
Lubricate and insert the gasket N on the fitting P .
Important
ï‚·
Always replace the gaskets Q and S every time they
are disassembled.
1.
Lubricate and insert the gaskets Q and S respectively
in the seats R and T of the holder V .
2.
Secure the holder V with the screws AA and AB
(tightening torque of 10 Nm ).
Fig 9.83 e Fig 9.83
