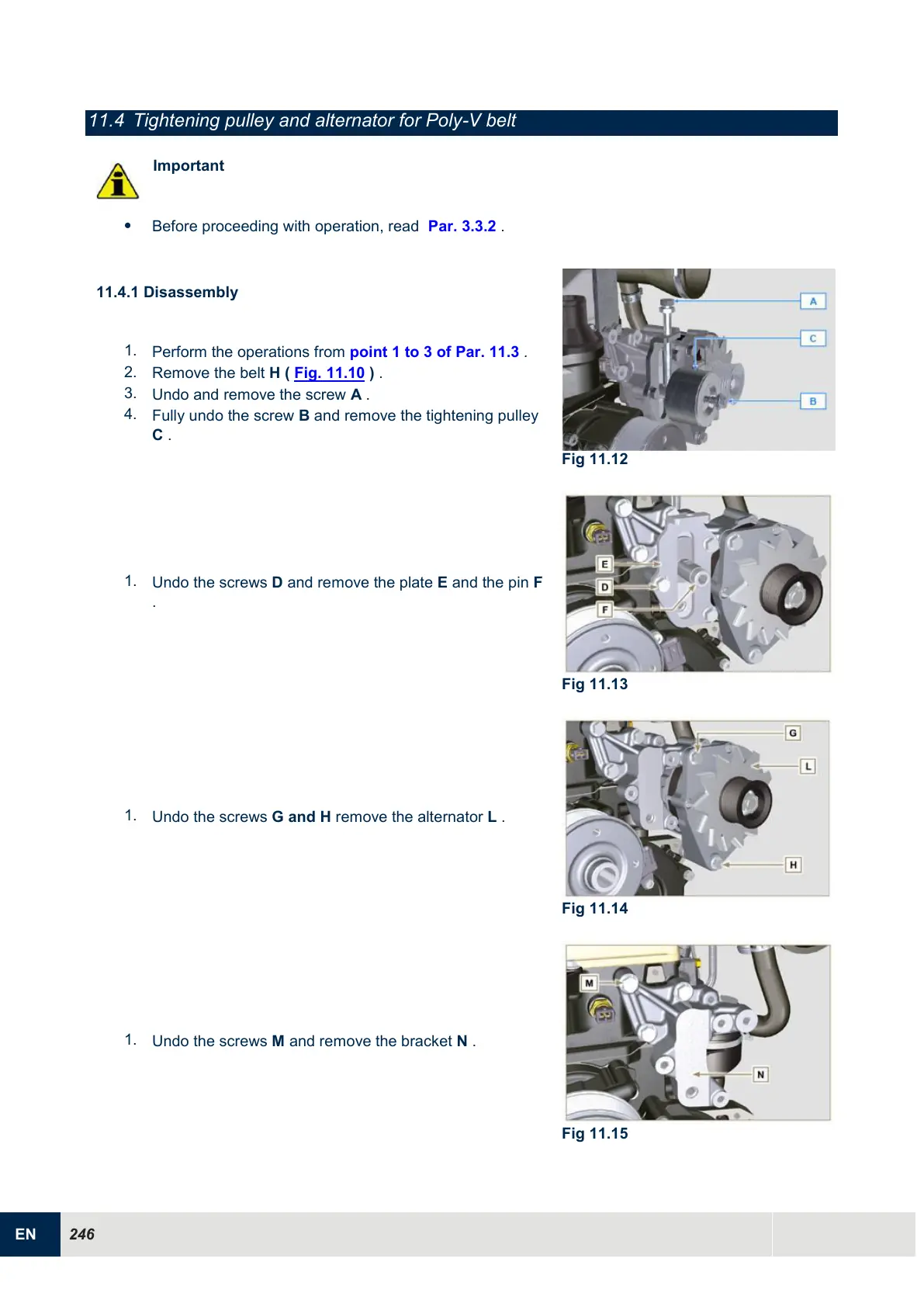

11.4 Tightening pulley and alternator for Poly-V belt
Important

Before proceeding with operation, read Par. 3.3.2 .
11.4.1 Disassembly
1.
Perform the operations from point 1 to 3 of Par. 11.3 .
2.
Remove the belt H ( Fig. 11.10 ) .
3.
Undo and remove the screw A .
4.
Fully undo the screw B and remove the tightening pulley
C .
Fig 11.12
1.
Undo the screws D and remove the plate E and the pin F
.
Fig 11.13
1.
Undo the screws G and H remove the alternator L .
Fig 11.14
1.
Undo the screws M and remove the bracket N .
Fig 11.15
