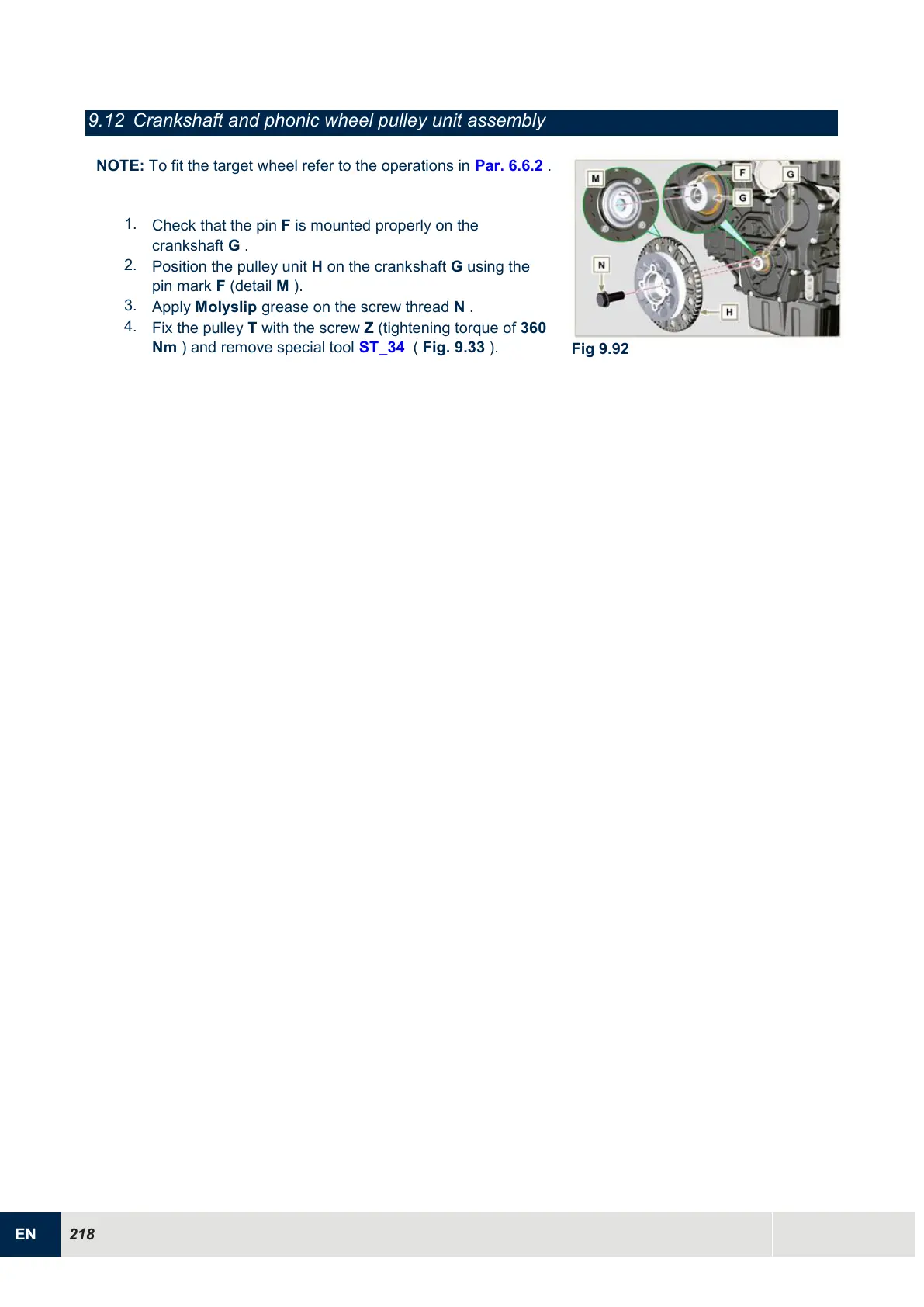

9.12 Crankshaft and phonic wheel pulley unit assembly
NOTE:
To fit the target wheel refer to the operations in
Par. 6.6.2
.
1.
Check that the pin F is mounted properly on the
crankshaft G .
2.
Position the pulley unit H on the crankshaft G using the
pin mark F (detail M ).
3.
Apply Molyslip grease on the screw thread N .
4.
Fix the pulley T with the screw Z (tightening torque of 360
Nm ) and remove special tool ST_34 ( Fig. 9.33 ).
