Kohler KDI 1903 TCR

EN
44

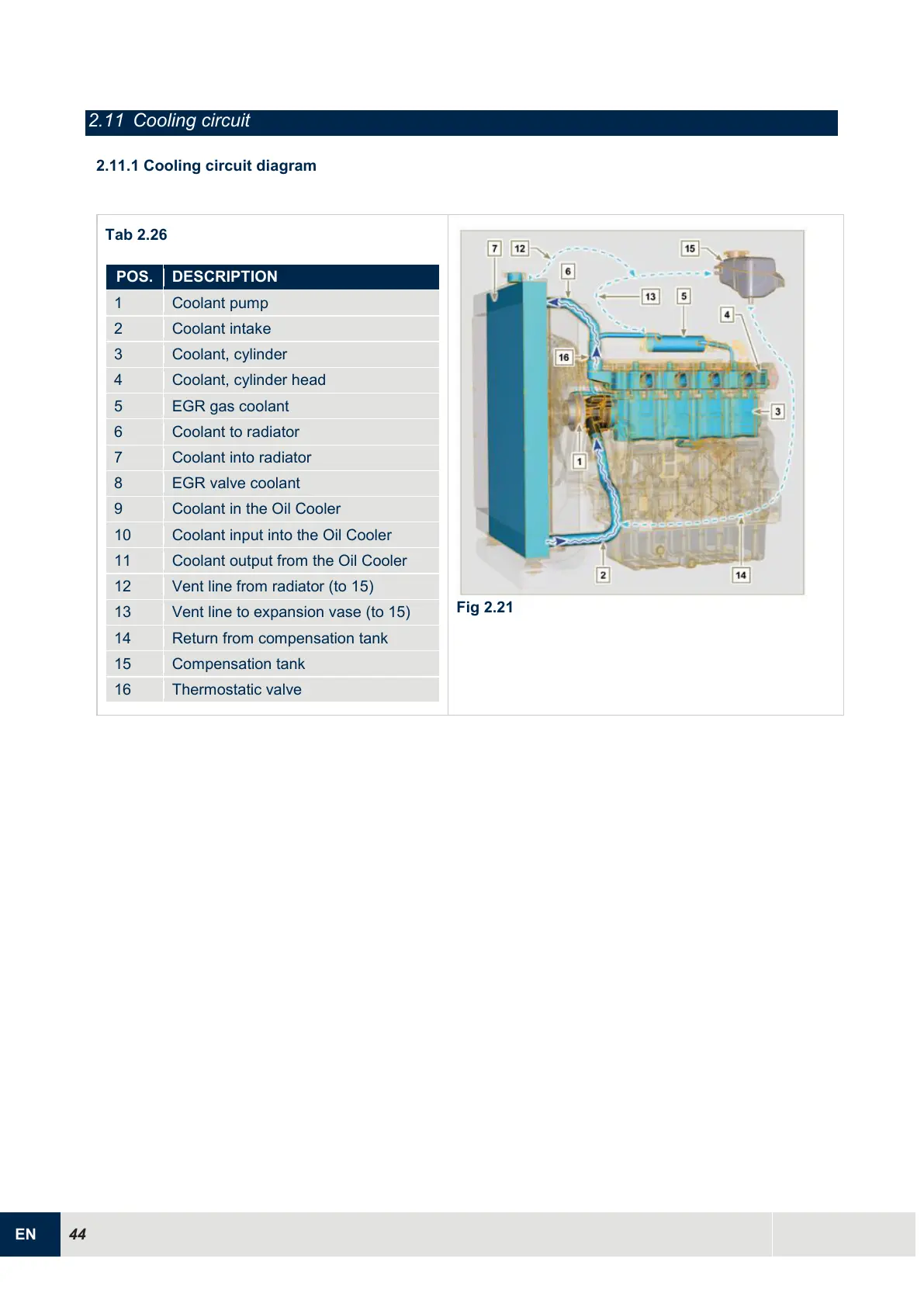

2.11 Cooling circuit
2.11.1 Cooling circuit diagram
Tab 2.26
POS.
DESCRIPTION
1
Coolant pump
2
Coolant intake
3
Coolant, cylinder
4
Coolant, cylinder head
5
EGR gas coolant
6
Coolant to radiator
7
Coolant into radiator
8
EGR valve coolant
9
Coolant in the Oil Cooler
10
Coolant input into the Oil Cooler
11
Coolant output from the Oil Cooler
12
Vent line from radiator (to 15)
13
Vent line to expansion vase (to 15)
14
Return from compensation tank
15
Compensation tank
16
Thermostatic valve
Fig 2.21
