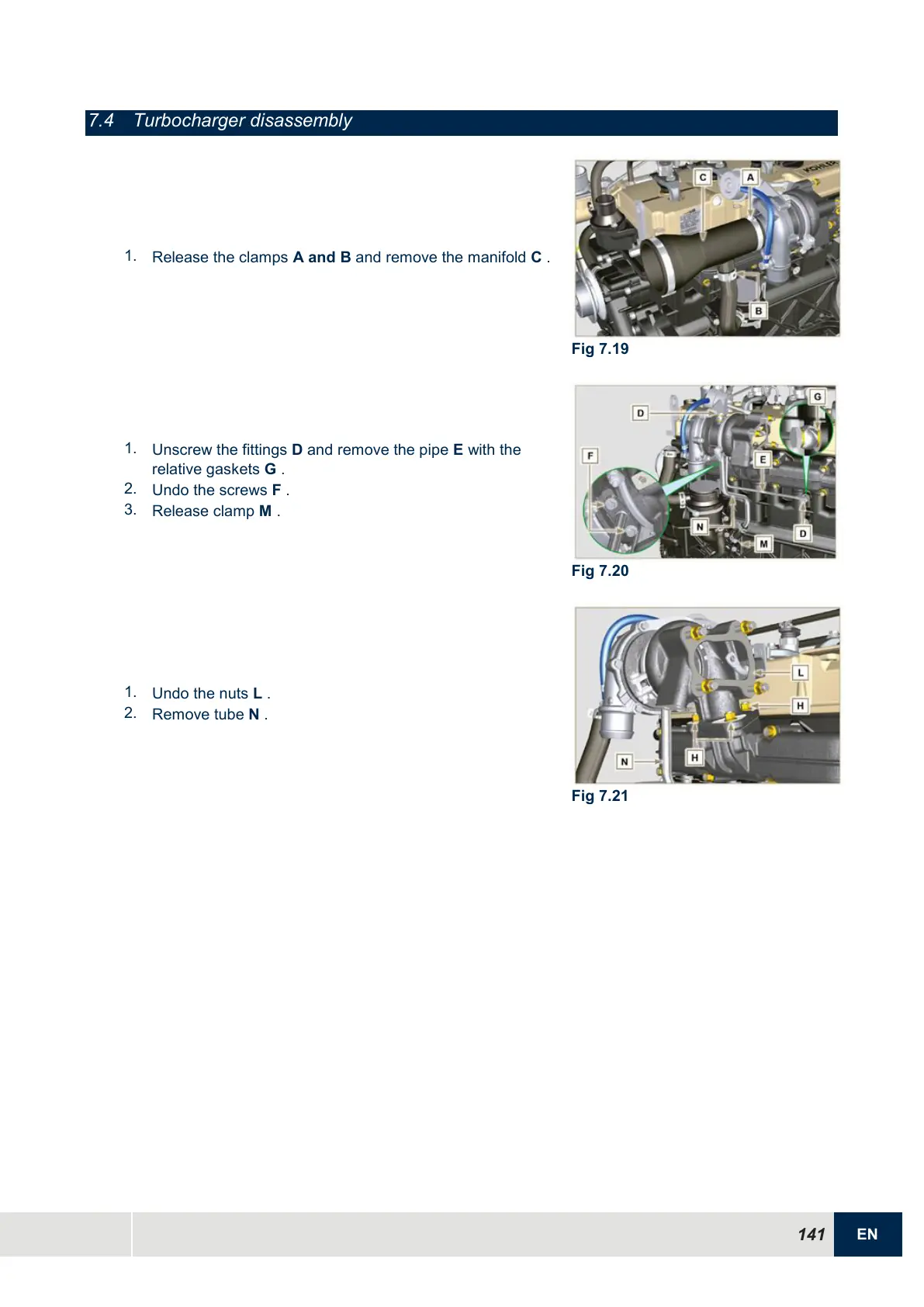

7.4 Turbocharger disassembly
1.
Release the clamps A and B and remove the manifold C .
Fig 7.19
1.
Unscrew the fittings D and remove the pipe E with the
relative gaskets G .
2.
Undo the screws F .
3.
Release clamp M .
Fig 7.20
1.
Undo the nuts L .
2.
Remove tube N .
Fig 7.21
