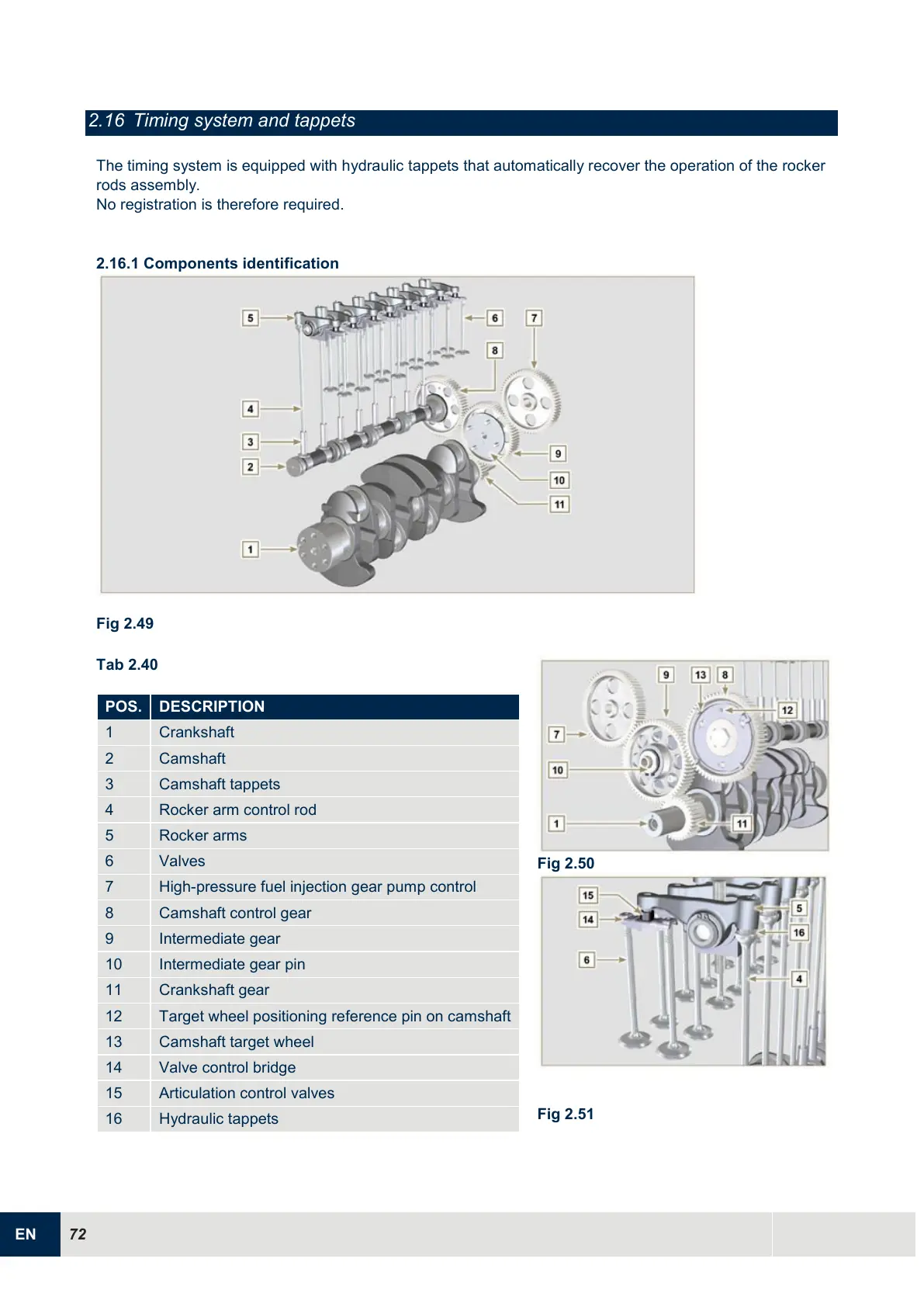

2.16 Timing system and tappets
The timing system is equipped with hydraulic tappets that automatically recover the operation of the rocker
rods assembly.
No registration is therefore required.
2.16.1 Components identification
Fig 2.49
Tab 2.40
POS.
DESCRIPTION
1
Crankshaft
2
Camshaft
3
Camshaft tappets
4
Rocker arm control rod
5
Rocker arms
6
Valves
7
High-pressure fuel injection gear pump control
8
Camshaft control gear
9
Intermediate gear
10
Intermediate gear pin
11
Crankshaft gear
12
Target wheel positioning reference pin on camshaft
13
Camshaft target wheel
14
Valve control bridge
15
Articulation control valves
16
Hydraulic tappets
Fig 2.50
Fig 2.51
