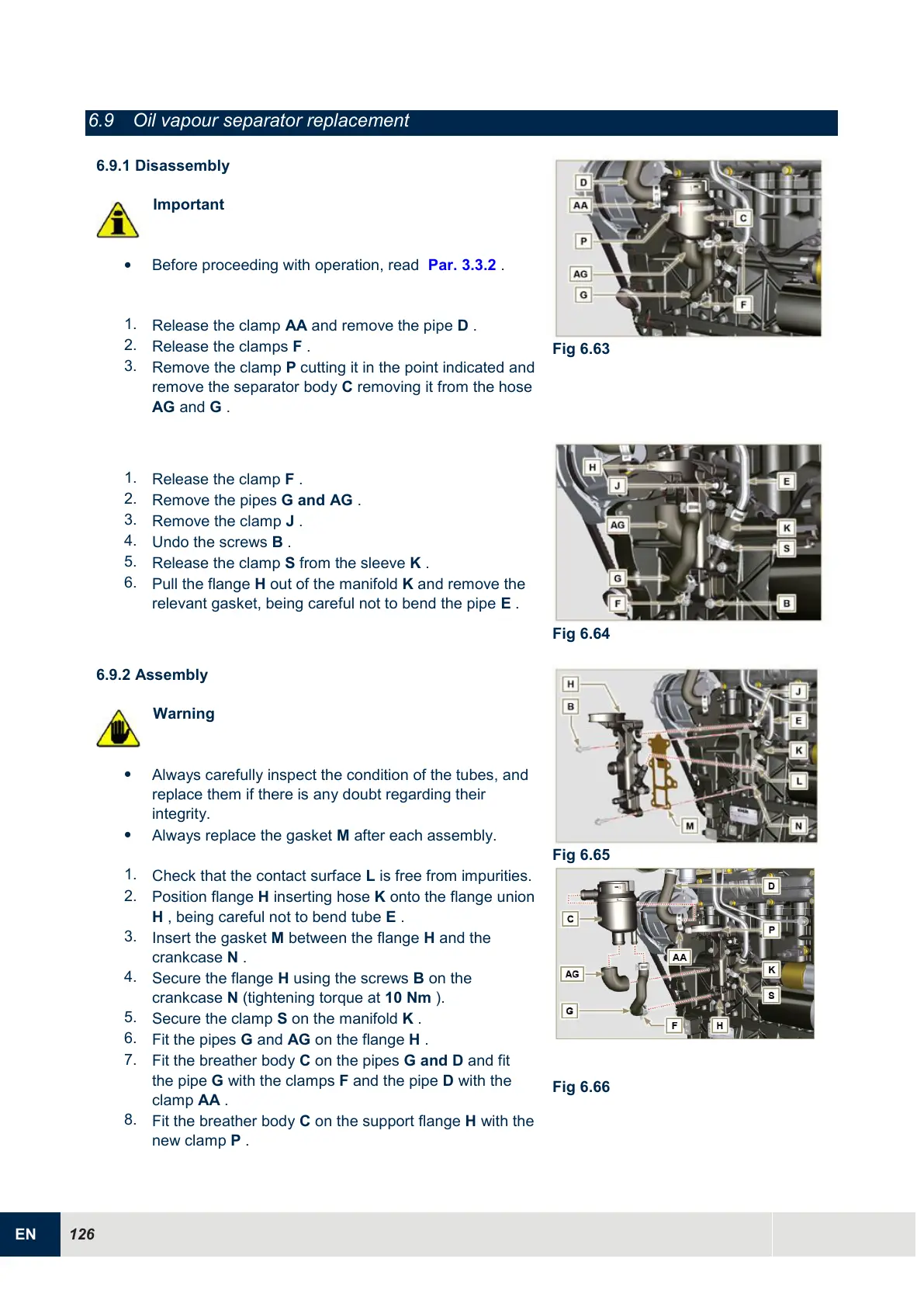

6.9 Oil vapour separator replacement
6.9.1 Disassembly
Important

Before proceeding with operation, read Par. 3.3.2 .
1.
Release the clamp AA and remove the pipe D .
2.
Release the clamps F .
3.
Remove the clamp P cutting it in the point indicated and
remove the separator body C removing it from the hose
AG and G .
Fig 6.63
1.
Release the clamp F .
2.
Remove the pipes G and AG .
3.
Remove the clamp J .
4.
Undo the screws B .
5.
Release the clamp S from the sleeve K .
6.
Pull the flange H out of the manifold K and remove the
relevant gasket, being careful not to bend the pipe E .
Fig 6.64
6.9.2 Assembly
Warning

Always carefully inspect the condition of the tubes, and
replace them if there is any doubt regarding their
integrity.

Always replace the gasket M after each assembly.
1.
Check that the contact surface L is free from impurities.
2.
Position flange H inserting hose K onto the flange union
H , being careful not to bend tube E .
3.
Insert the gasket M between the flange H and the
crankcase N .
4.
Secure the flange H using the screws B on the
crankcase N (tightening torque at 10 Nm ).
5.
Secure the clamp S on the manifold K .
6.
Fit the pipes G and AG on the flange H .
7.
Fit the breather body C on the pipes G and D and fit
the pipe G with the clamps F and the pipe D with the
clamp AA .
8.
Fit the breather body C on the support flange H with the
new clamp P .
Fig 6.65
Fig 6.66
