EN
146

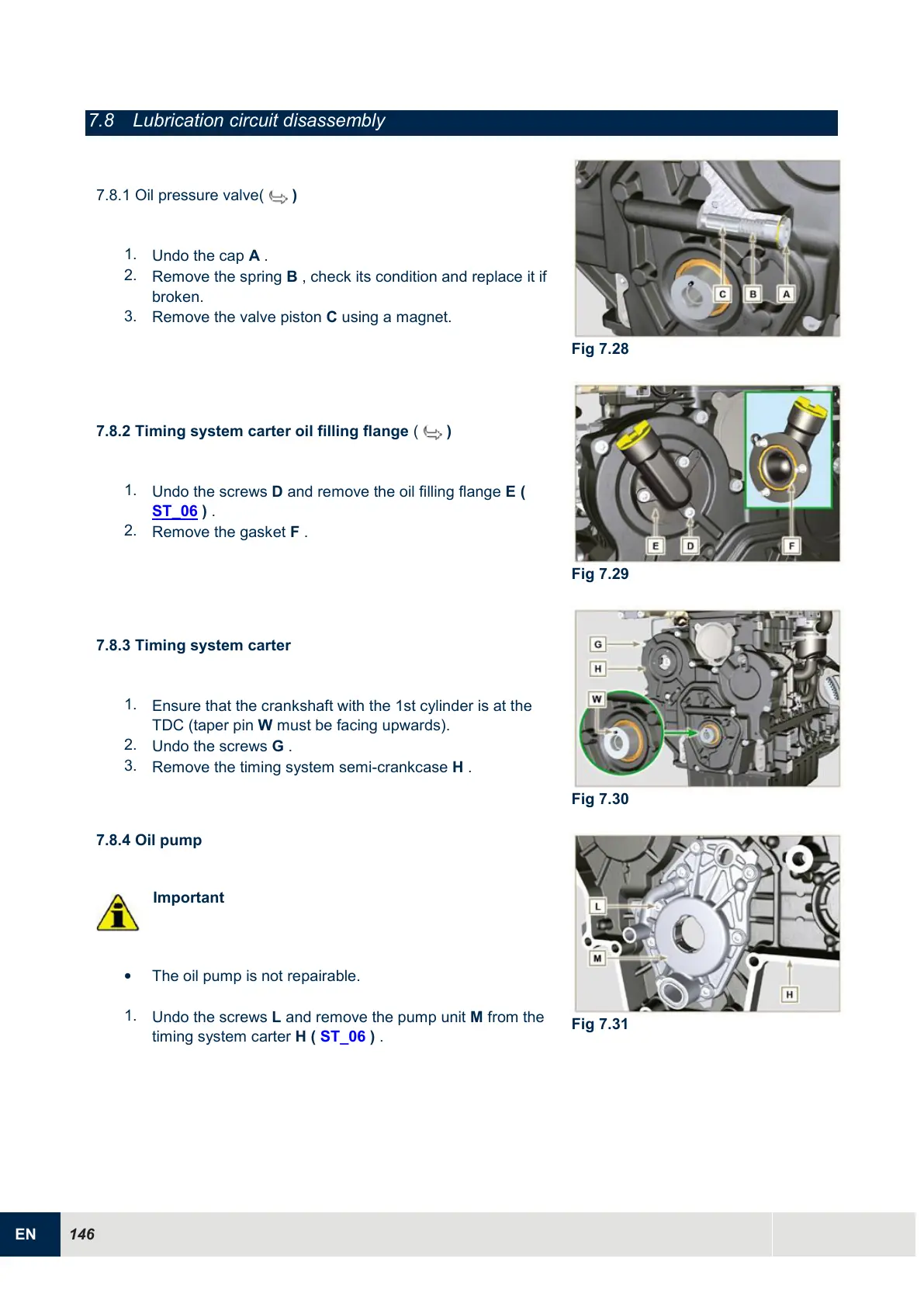

7.8 Lubrication circuit disassembly
7.8.1 Oil pressure valve(
)
1.
Undo the cap A .
2.
Remove the spring B , check its condition and replace it if
broken.
3.
Remove the valve piston C using a magnet.
Fig 7.28
7.8.2 Timing system carter oil filling flange
(
)
1.
Undo the screws D and remove the oil filling flange E (
ST_06 ) .
2.
Remove the gasket F .
Fig 7.29
7.8.3 Timing system carter
1.
Ensure that the crankshaft with the 1st cylinder is at the
TDC (taper pin W must be facing upwards).
2.
Undo the screws G .
3.
Remove the timing system semi-crankcase H .
Fig 7.30
7.8.4 Oil pump
Important
ď‚·
The oil pump is not repairable.
1.
Undo the screws L and remove the pump unit M from the
timing system carter H ( ST_06 ) .
Fig 7.31
