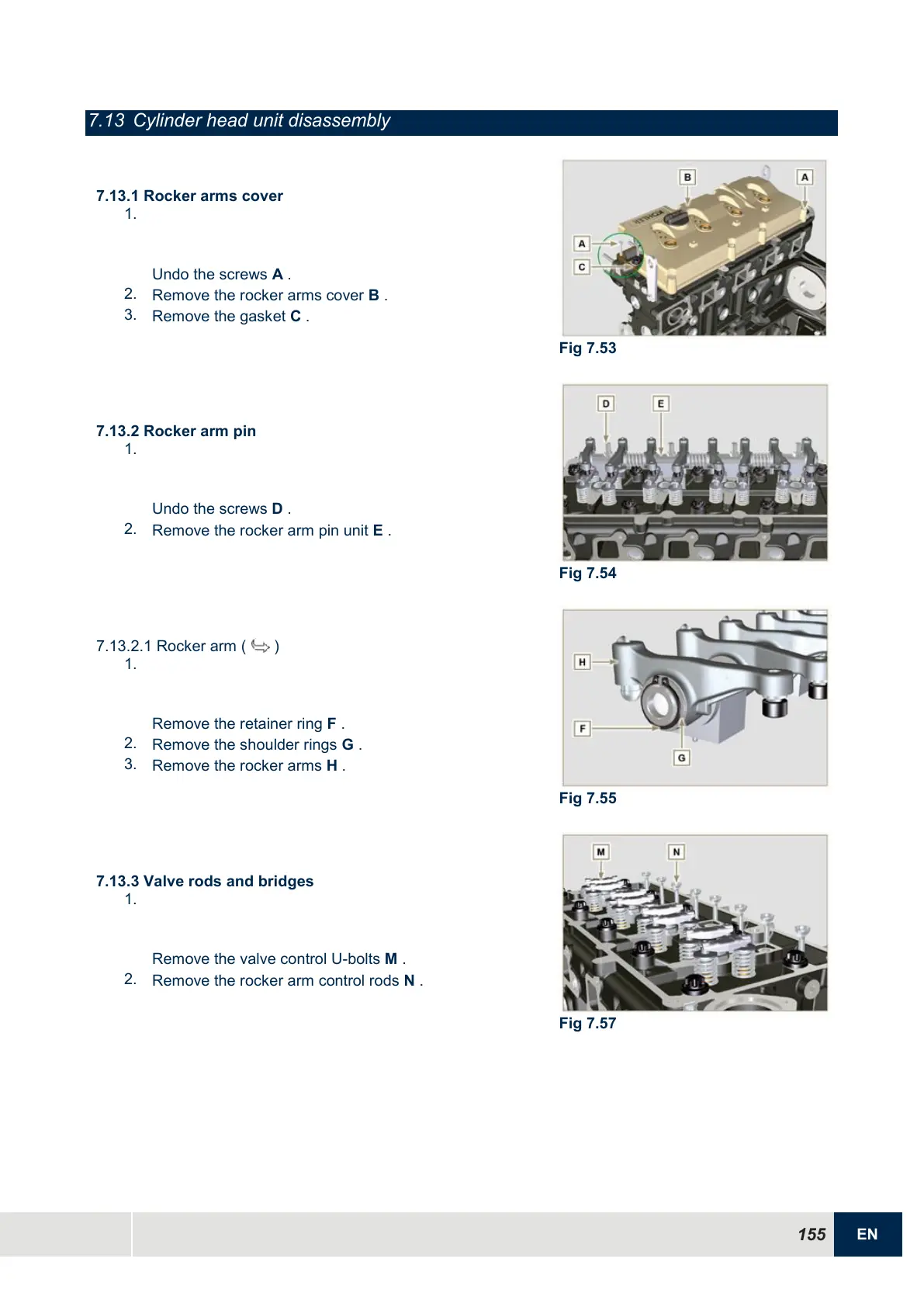

7.13 Cylinder head unit disassembly
7.13.1 Rocker arms cover
1.
Undo the screws A .
2.
Remove the rocker arms cover B .
3.
Remove the gasket C .
Fig 7.53
7.13.2 Rocker arm pin
1.
Undo the screws D .
2.
Remove the rocker arm pin unit E .
Fig 7.54
7.13.2.1 Rocker arm ( )
1.
Remove the retainer ring F .
2.
Remove the shoulder rings G .
3.
Remove the rocker arms H .
Fig 7.55
7.13.3 Valve rods and bridges
1.
Remove the valve control U-bolts M .
2.
Remove the rocker arm control rods N .
Fig 7.57
