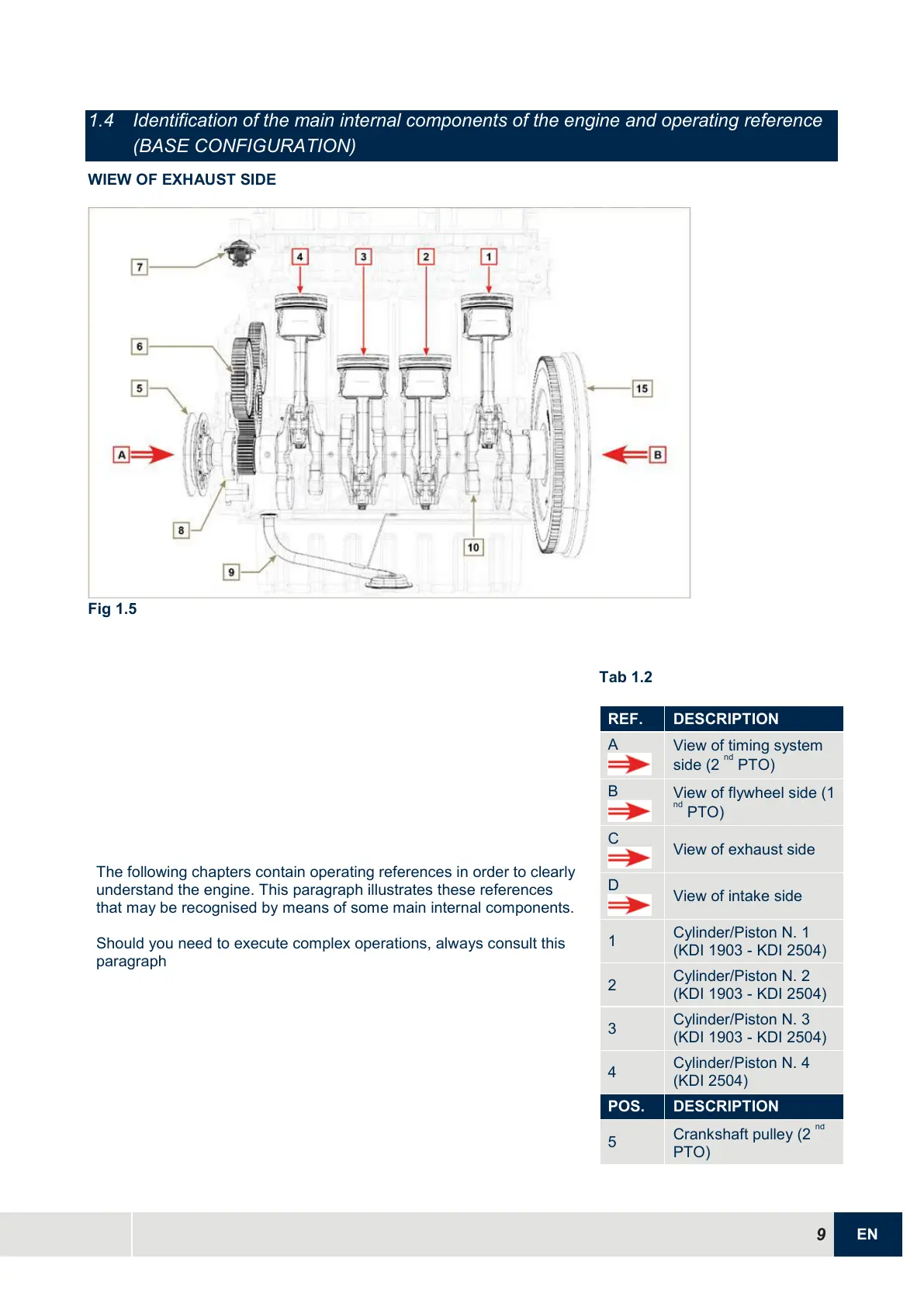

1.4 Identification of the main internal components of the engine and operating reference
(BASE CONFIGURATION)
WIEW OF EXHAUST SIDE
Fig 1.5
The following chapters contain operating references in order to clearly
understand the engine. This paragraph illustrates these references
that may be recognised by means of some main internal components.
Should you need to execute complex operations, always consult this
paragraph
Tab 1.2
REF.
DESCRIPTION
A
View of timing system
side (2
nd
PTO)
B
View of flywheel side (1
nd
PTO)
C
View of exhaust side
D
View of intake side
1
Cylinder/Piston N. 1
(KDI 1903 - KDI 2504)
2
Cylinder/Piston N. 2
(KDI 1903 - KDI 2504)
3
Cylinder/Piston N. 3
(KDI 1903 - KDI 2504)
4
Cylinder/Piston N. 4
(KDI 2504)
POS.
DESCRIPTION
5
Crankshaft pulley (2
nd
PTO)
