Kohler KDI 1903 TCR Workshop Manual

15
EN

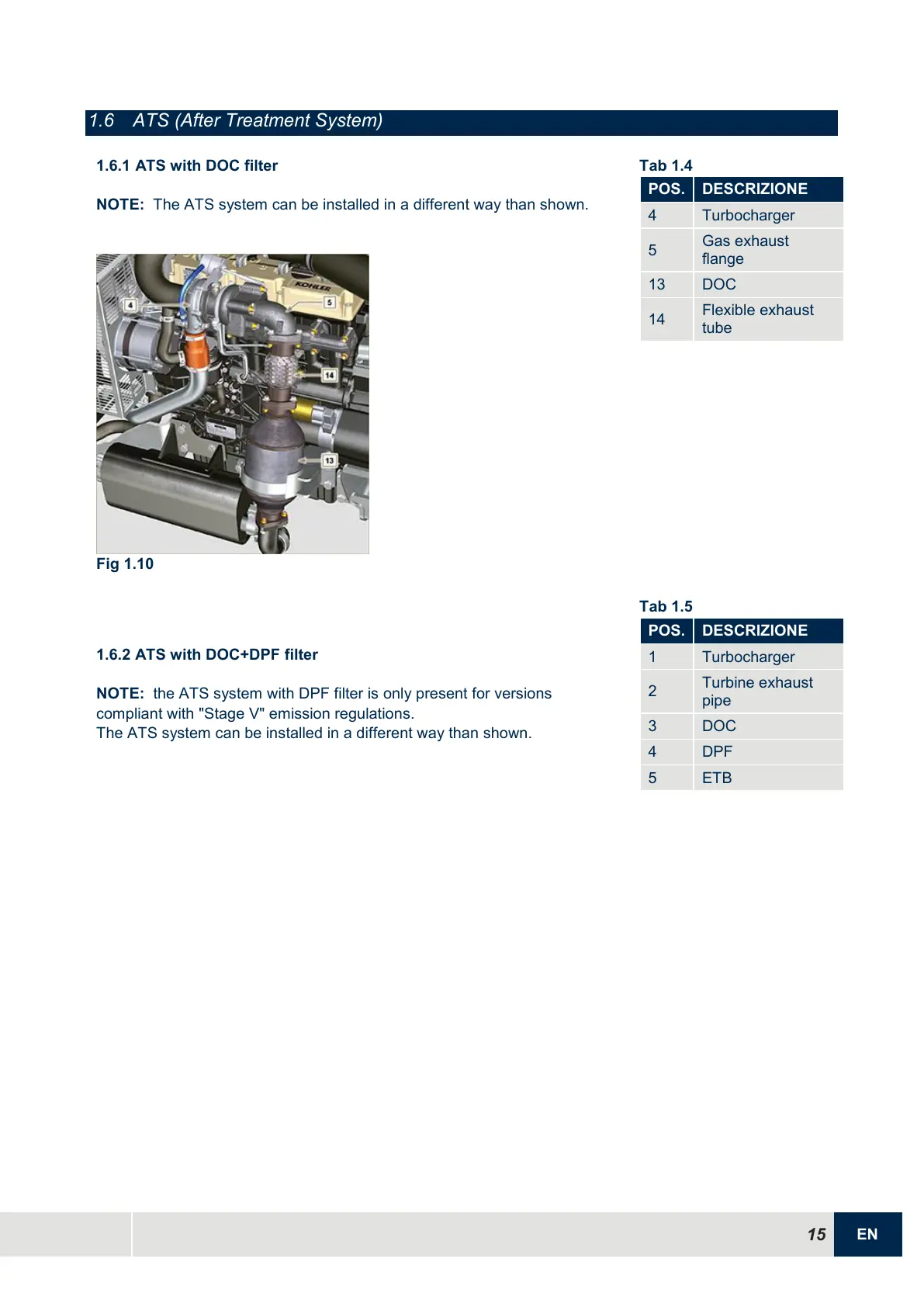

1.6 ATS (After Treatment System)
1.6.1 ATS with DOC filter
NOTE:
The ATS system can be installed in a different way than shown.
Fig 1.10
Tab 1.4
POS.
DESCRIZIONE
4
Turbocharger
5
Gas exhaust
flange
13
DOC
14
Flexible exhaust
tube
1.6.2 ATS with DOC+DPF filter
NOTE:
the ATS system with DPF filter is only present for versions
compliant with "Stage V" emission regulations.
The ATS system can be installed in a different way than shown.
Tab 1.5
POS.
DESCRIZIONE
1
Turbocharger
2
Turbine exhaust
pipe
3
DOC
4
DPF
5
ETB
