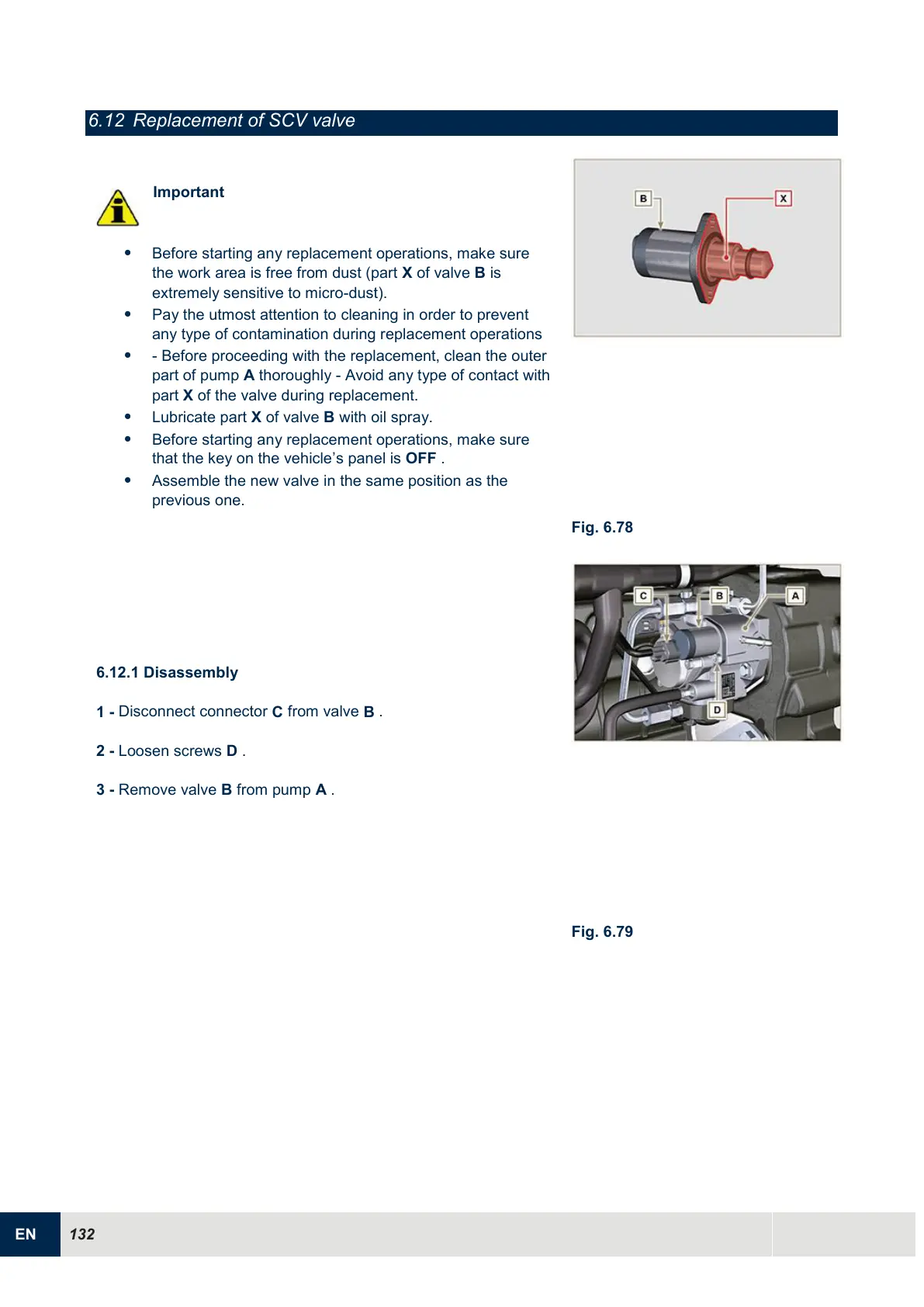

6.12 Replacement of SCV valve
Important

Before starting any replacement operations, make sure
the work area is free from dust (part X of valve B is
extremely sensitive to micro-dust).

Pay the utmost attention to cleaning in order to prevent
any type of contamination during replacement operations

- Before proceeding with the replacement, clean the outer
part of pump A thoroughly - Avoid any type of contact with
part X of the valve during replacement.

Lubricate part X of valve B with oil spray.

Before starting any replacement operations, make sure
that the key on the vehicle’s panel is OFF .

Assemble the new valve in the same position as the
previous one.
Fig. 6.78
6.12.1 Disassembly
1 -
Disconnect connector
C
from valve
B
.
2 -
Loosen screws
D
.
3 -
Remove valve
B
from pump
A
.
Fig. 6.79
