6.8 Oil pressure valve replacement
6.8.1 Disassembly
Important

Before proceeding with operation, read Par. 3.3.2 .
1.
Undo cap A .
2.
Remove spring B , check its condition and replace it if
broken.
3.
Remove the valve piston C using a magnet.

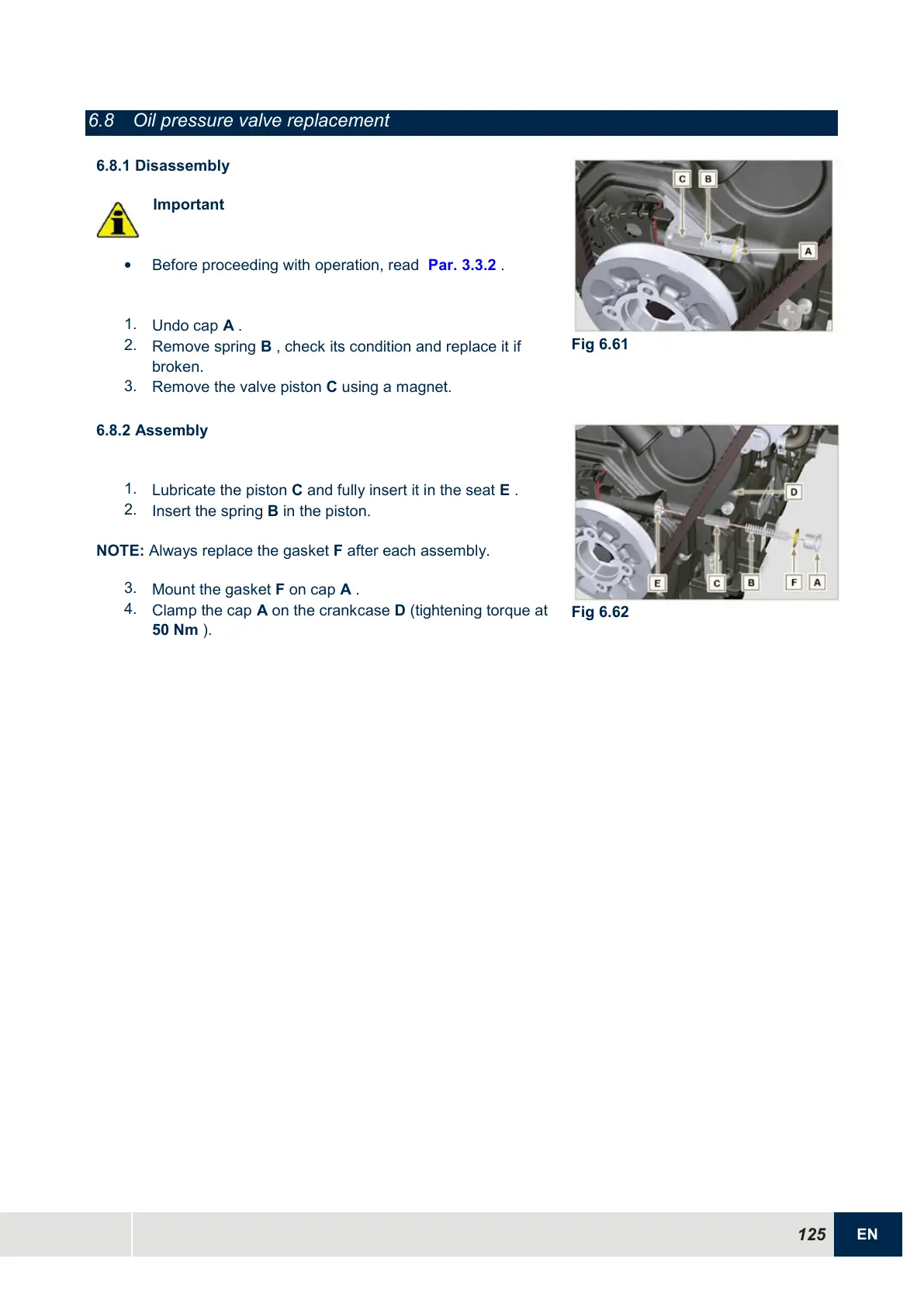

Fig 6.61
6.8.2 Assembly
1.
Lubricate the piston C and fully insert it in the seat E .
2.
Insert the spring B in the piston.
NOTE: Always replace the gasket F after each assembly.
3.
Mount the gasket F on cap A .
4.
Clamp the cap A on the crankcase D (tightening torque at
50 Nm ).
Fig 6.62
