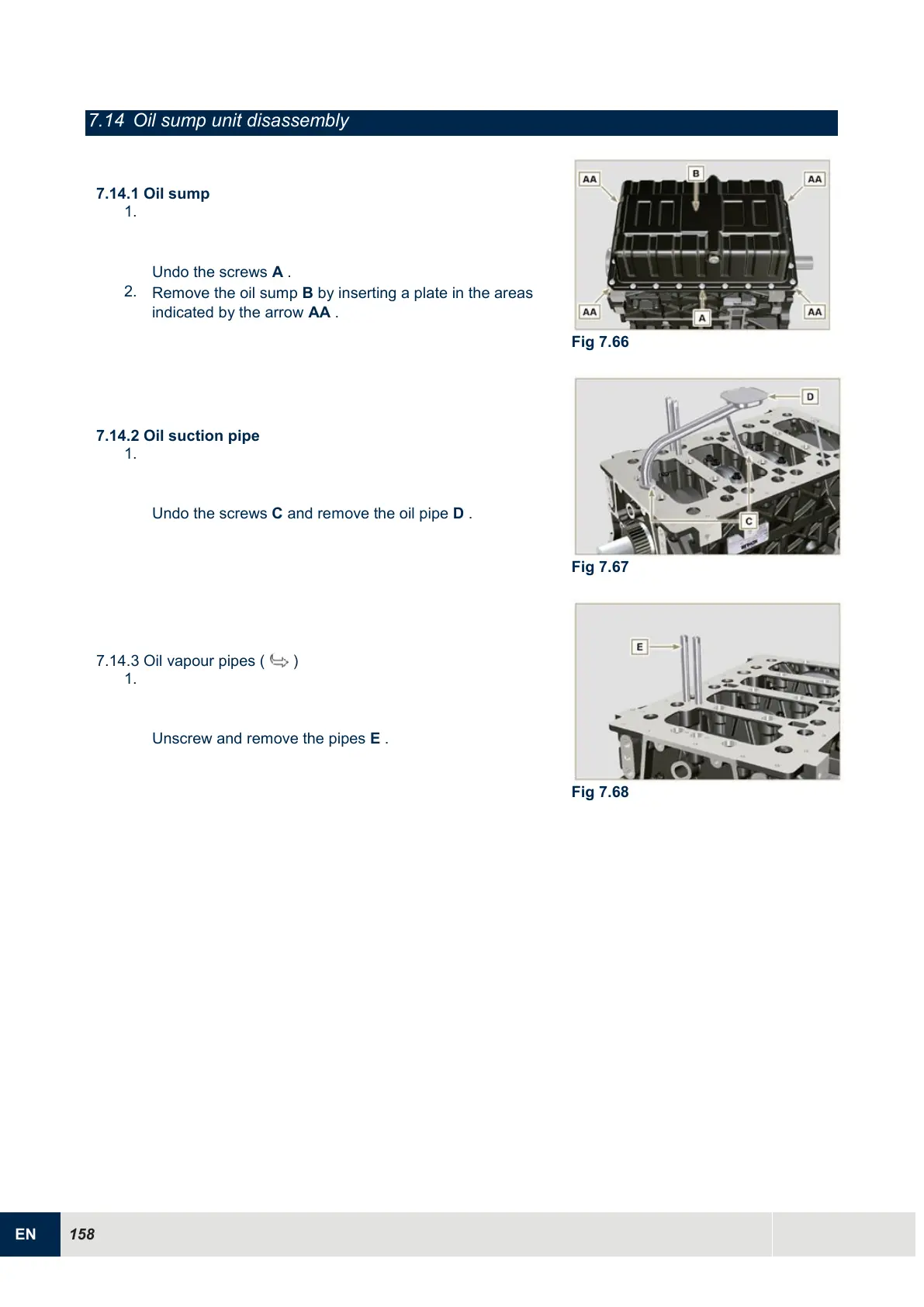

7.14 Oil sump unit disassembly
7.14.1 Oil sump
1.
Undo the screws A .
2.
Remove the oil sump B by inserting a plate in the areas
indicated by the arrow AA .
Fig 7.66
7.14.2 Oil suction pipe
1.
Undo the screws C and remove the oil pipe D .
Fig 7.67
7.14.3 Oil vapour pipes ( )
1.
Unscrew and remove the pipes E .
Fig 7.68
